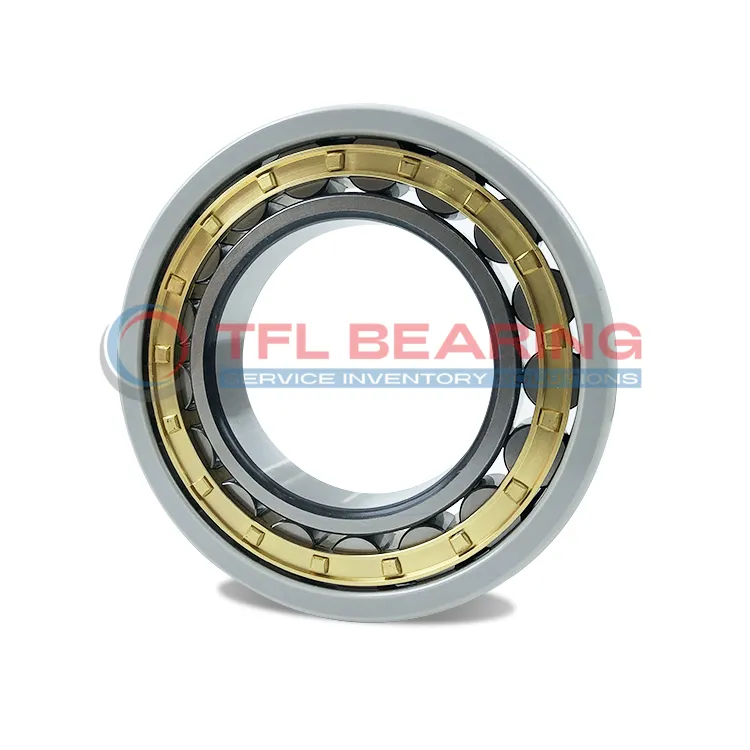

The NTN 2TS2-7MC3-NU314 is a single-row cylindrical roller bearing with a 70mm bore and 150mm outer diameter, featuring an insulating coating on the outer ring. It handles dynamic loads up to 158kN and spins smoothly at speeds up to 4700 RPM.
The brass cage ensures durability, while the C3 radial clearance allows for thermal expansion in demanding conditions. Its insulation coating provides a breakdown voltage over 3000 VDC, making it ideal for electric motors.
Weighing 2.71kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, this bearing suits applications like generators or industrial machinery where electrical insulation is crucial.
The 0.2mm coating thickness and resistance over 2000 MΩ offer reliable protection against electrical currents. A practical choice for high-load, high-speed environments.
"*" indicates required fields
How Does 2TS2-7MC3-NU314 Bearing Resist Electrical Current?
2TS2-7MC3-NU314 Bearing features an insulating coating on the outer ring, preventing electrical current from passing through.
This design ensures a breakdown voltage of over 3000 VDC, making it ideal for electric motor applications.
The brass cage maintains smooth operation, even under high electrical resistance conditions.
With a dynamic load rating of 158.0kN, it offers both electrical insulation and mechanical durability.
Performance Features of 2TS2-7MC3-NU314 Bearing
2TS2-7MC3-NU314 Bearing is built with a brass cage, enhancing its stability and reducing friction.
Its insulation coating provides an electrical resistance of over 2,000 MΩ, protecting against current damage.
The bearing’s C3 radial internal clearance allows for thermal expansion in high-speed applications.
With a reference speed of 4700 r/min, it balances performance and longevity.
Why Choose 2TS2-7MC3-NU314 Bearing for Precision Tasks?

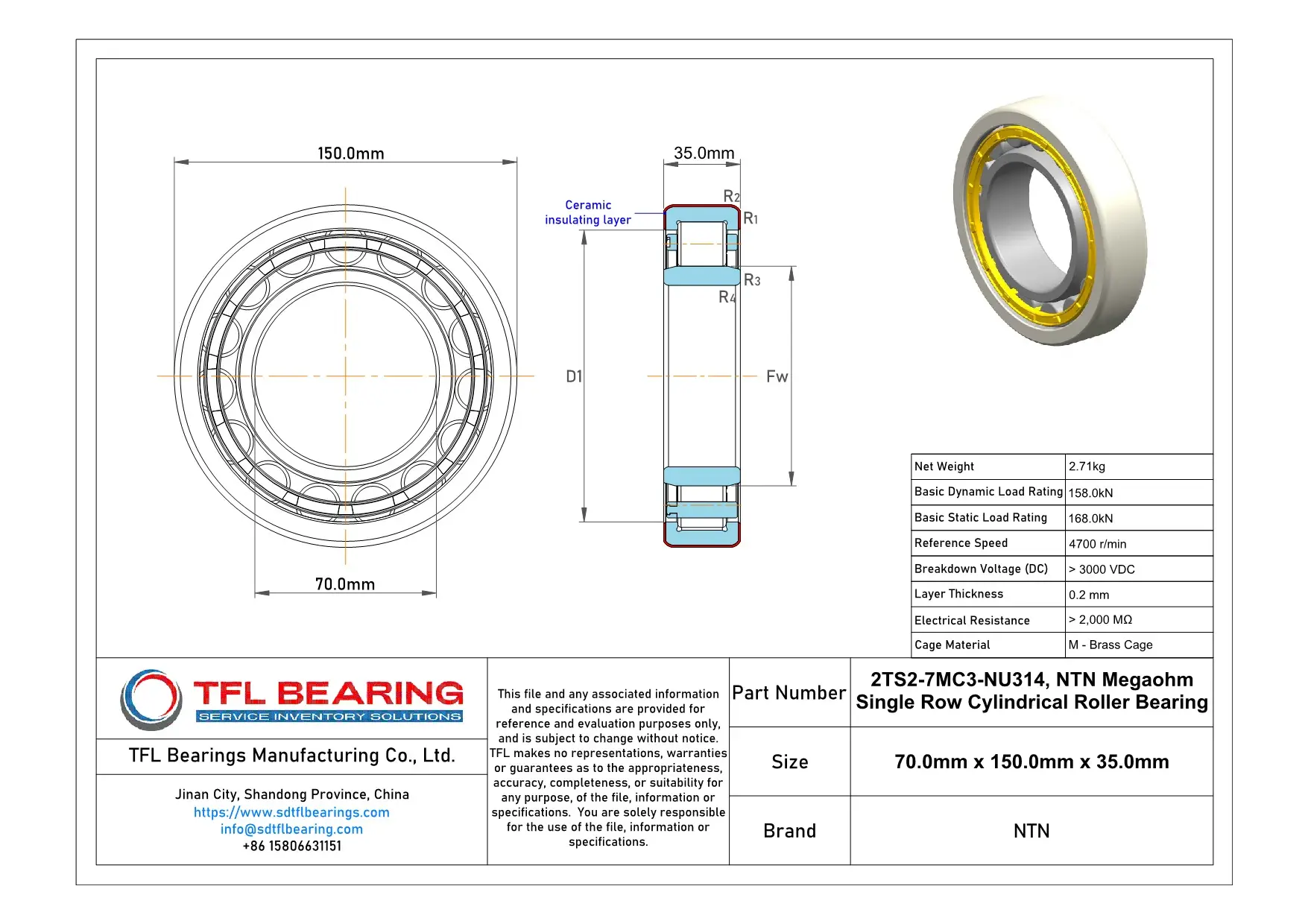

2TS2-7MC3-NU314 Bearing’s precise dimensions (70.0mm x 150.0mm x 35.0mm) ensure accurate fit and function.
The insulating coating and brass cage work together to minimise electrical interference.
Its static load rating of 168.0kN guarantees reliability in demanding environments.
This bearing is ROHS and REACH compliant, meeting strict environmental standards.
Engineered for Efficiency: 2TS2-7MC3-NU314 Bearing
2TS2-7MC3-NU314 Bearing’s insulation coating prevents electrical arcing, extending its service life.
The brass cage design reduces wear, ensuring smooth operation even at high speeds.
With a net weight of 2.71kg, it offers a lightweight yet durable solution for industrial applications.
Its compliance with ROHS and REACH standards makes it an environmentally friendly choice.
Industrial Uses of 2TS2-7MC3-NU314 Bearing
The 2TS2-7MC3-NU314 Bearing is commonly used in electric motors and generators, where its insulating coating prevents electrical arcing. This makes it ideal for applications in power plants and renewable energy systems.
In automotive manufacturing, 2TS2-7MC3-NU314 Bearing handles high radial loads in gearboxes and drivetrains. Its brass cage ensures smooth operation even under demanding conditions.
For industrial machinery like pumps and compressors, 2TS2-7MC3-NU314 Bearing’s C3 clearance accommodates thermal expansion. The high dynamic load rating also makes it suitable for heavy-duty equipment.
In robotics and automation, 2TS2-7MC3-NU314 Bearing provides reliable performance in precision components. Its breakdown voltage rating ensures safety in electrically sensitive environments.
