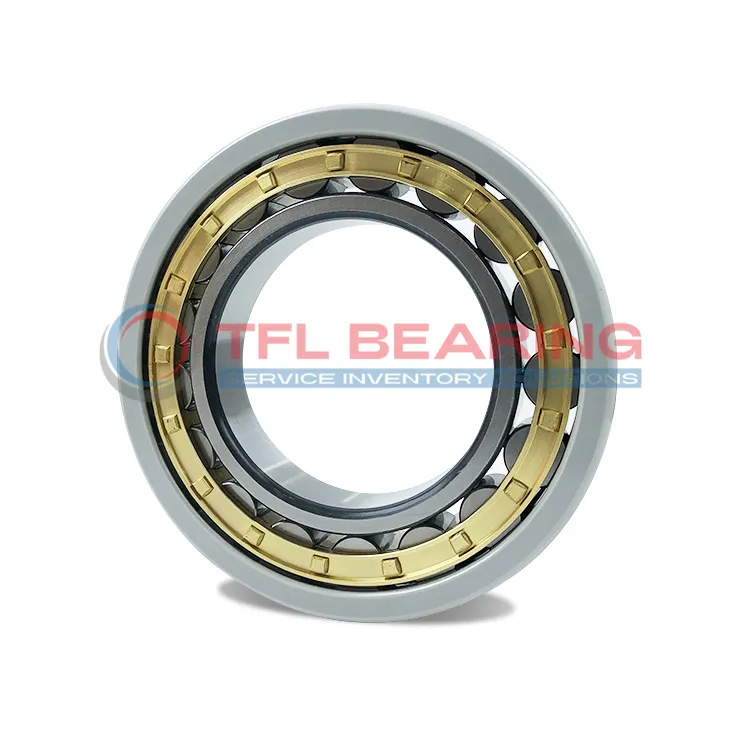

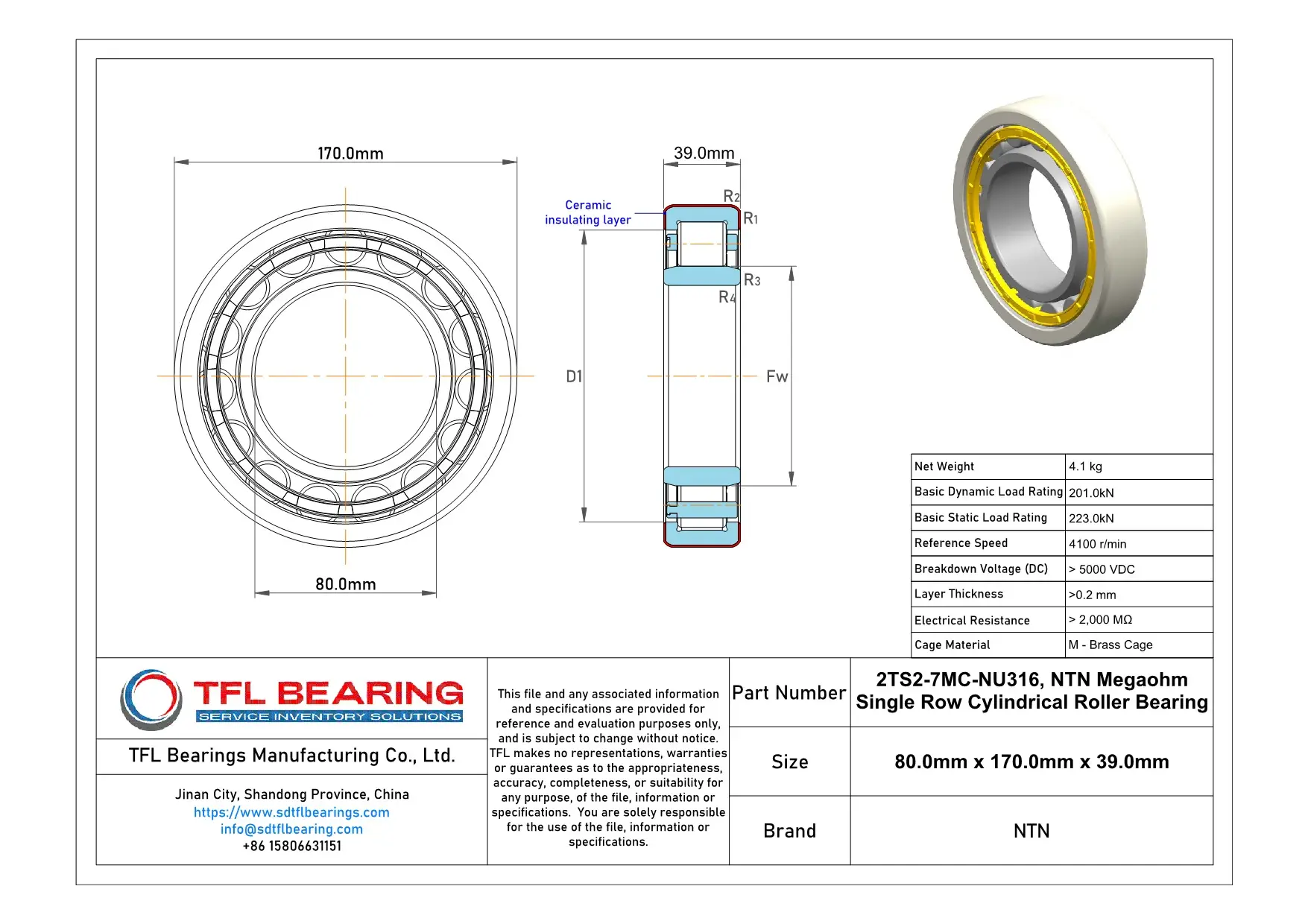

The NTN 2TS2-7MC-NU316 is a single-row cylindrical roller bearing with an 80mm bore and 170mm outer diameter, designed for high-voltage environments. Its ceramic insulating coating provides resistance over 5000 VDC, making it ideal for electric motors.
With a dynamic load rating of 201kN and a static load rating of 223kN, it handles heavy loads efficiently. The brass cage ensures smooth operation at speeds up to 4100 RPM.
The C3 radial clearance offers flexibility in applications with thermal expansion. Its compact 39mm width and 4.1kg weight make it easy to integrate into various setups.
This bearing is perfect for industrial machinery exposed to electrical currents, such as generators or wind turbines. Compliant with RoHS and REACH standards, it’s both durable and safe.
"*" indicates required fields
How Is 2TS2-7MC-NU316 Bearing Engineered for Reliability?
2TS2-7MC-NU316 Bearing features a protected ceramic layer, providing high voltage resistance for reliable operation in electrical environments.
Its breakdown voltage exceeds 5000 VDC, ensuring safety in high-voltage applications.
The brass cage maintains proper roller alignment, enhancing durability under heavy loads.
With a basic dynamic load rating of 201.0kN, it delivers consistent performance in demanding conditions.
2TS2-7MC-NU316 Bearing’s insulating coating offers an electrical resistance of over 2,000 MΩ, preventing current leakage.
This makes it ideal for use in electric motors and generators where electrical insulation is crucial.
Designed for high-speed applications, it has a reference speed of 4100 r/min.
The C3 radial internal clearance ensures smooth operation even under thermal expansion.
Industrial Uses of 2TS2-7MC-NU316 Bearing
The 2TS2-7MC-NU316 Bearing is commonly used in industrial machinery like electric motors and generators, where its high-voltage resistance prevents electrical damage. Its brass cage ensures smooth operation even under heavy loads.
In automotive applications, 2TS2-7MC-NU316 Bearing is ideal for hybrid and electric vehicle systems, thanks to its insulating coating that handles high voltages. The C3 radial clearance also accommodates thermal expansion during prolonged use.
For medical imaging devices, 2TS2-7MC-NU316 Bearing’s ceramic layer provides reliable insulation, ensuring precision in sensitive equipment. Its high dynamic load rating makes it suitable for demanding operational environments.
Automation systems benefit from 2TS2-7MC-NU316 Bearing’s durability and electrical resistance, particularly in robotic arms and conveyor belts. The consistent performance reduces maintenance needs in high-speed setups.
In household appliances like washing machines, 2TS2-7MC-NU316 Bearing offers quiet and efficient operation. The robust design ensures longevity, even with frequent use.
