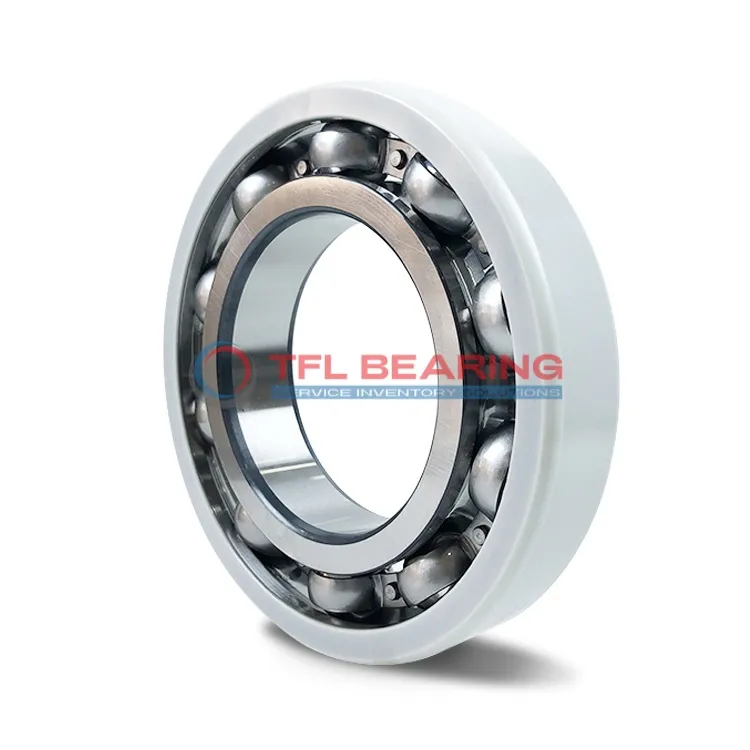

The NTN MEGAOHM Series 7MC3-6236C3 is an insulated ball bearing with a 180mm bore and 320mm outer diameter, designed to handle heavy loads. It features a ceramic coating on the outer ring, providing excellent electrical insulation.
With a dynamic load rating of 240 kN and a static load rating of 244 kN, it’s built for durability. The bearing can reach speeds up to 3650 RPM, making it suitable for high-performance applications.
The ceramic coating ensures a breakdown voltage over 3000V and electrical resistance above 2000 MΩ, preventing electrical damage. Its C3 radial clearance allows for slight misalignment and thermal expansion.
Ideal for use in electric motors or generators where electrical insulation is crucial. The bearing is ROHS compliant, ensuring it meets environmental standards. Weighing 18.809 kg, it’s robust yet manageable for industrial use.
The sheet metal cage adds to its reliability, making it a solid choice for demanding environments. Its 52mm width provides stability under heavy loads.
"*" indicates required fields
How Is 7MC3-6236C3 Bearing Engineered for Reliability?
7MC3-6236C3 Bearing features an outer ring ceramic coating, providing excellent insulation against electrical currents.
This design ensures reliable performance in environments with high voltage, with a breakdown voltage exceeding 3000 V.
The sheet metal cage maintains ball alignment, enhancing durability under heavy loads.
With a dynamic load rating of 240.0 kN, it handles demanding applications with ease.
7MC3-6236C3 Bearing operates smoothly at speeds up to 3650 r/min, balancing efficiency and longevity.
Its C3 radial internal clearance allows for thermal expansion, ensuring consistent performance.
The ceramic coating offers high electrical resistance, measuring over 2000 MΩ.
This makes 7MC3-6236C3 Bearing ideal for use in electrically challenging conditions.
Industrial Uses of 7MC3-6236C3 Bearing
The 7MC3-6236C3 Bearing is commonly used in electric motors and generators, where its ceramic-coated outer ring prevents electrical arcing. This makes it ideal for high-voltage environments found in power plants and industrial machinery.
In wind turbines, 7MC3-6236C3 Bearing handles heavy loads while maintaining electrical insulation, ensuring reliable performance in harsh weather conditions. Its C3 clearance also accommodates thermal expansion during prolonged operation.
For railway applications, 7MC3-6236C3 Bearing’s high breakdown voltage protects against stray currents in electrified tracks. The sheet metal cage adds durability, making it suitable for long-distance trains and trams.
What Makes 7MC3-6236C3 Bearing a Preferred Choice?
The 7MC3-6236C3 Bearing is a go-to for HVAC systems, where its insulation properties reduce energy loss in large cooling fans. Its 320 mm outer diameter provides stability in high-speed rotations.
In industrial pumps, 7MC3-6236C3 Bearing’s 244 kN static load rating ensures smooth operation under constant pressure. The ceramic coating also resists corrosion in wet or chemically aggressive environments.
Built for Heavy-Duty Use: 7MC3-6236C3 Bearing
The 7MC3-6236C3 Bearing excels in steel mills, where its electrical resistance prevents damage from induced currents. Its 52 mm width offers robust support for rolling mill equipment.
For mining machinery, 7MC3-6236C3 Bearing’s dynamic load capacity handles the intense vibrations of crushers and conveyors. The C3 clearance further aids in absorbing shock loads during operation.
