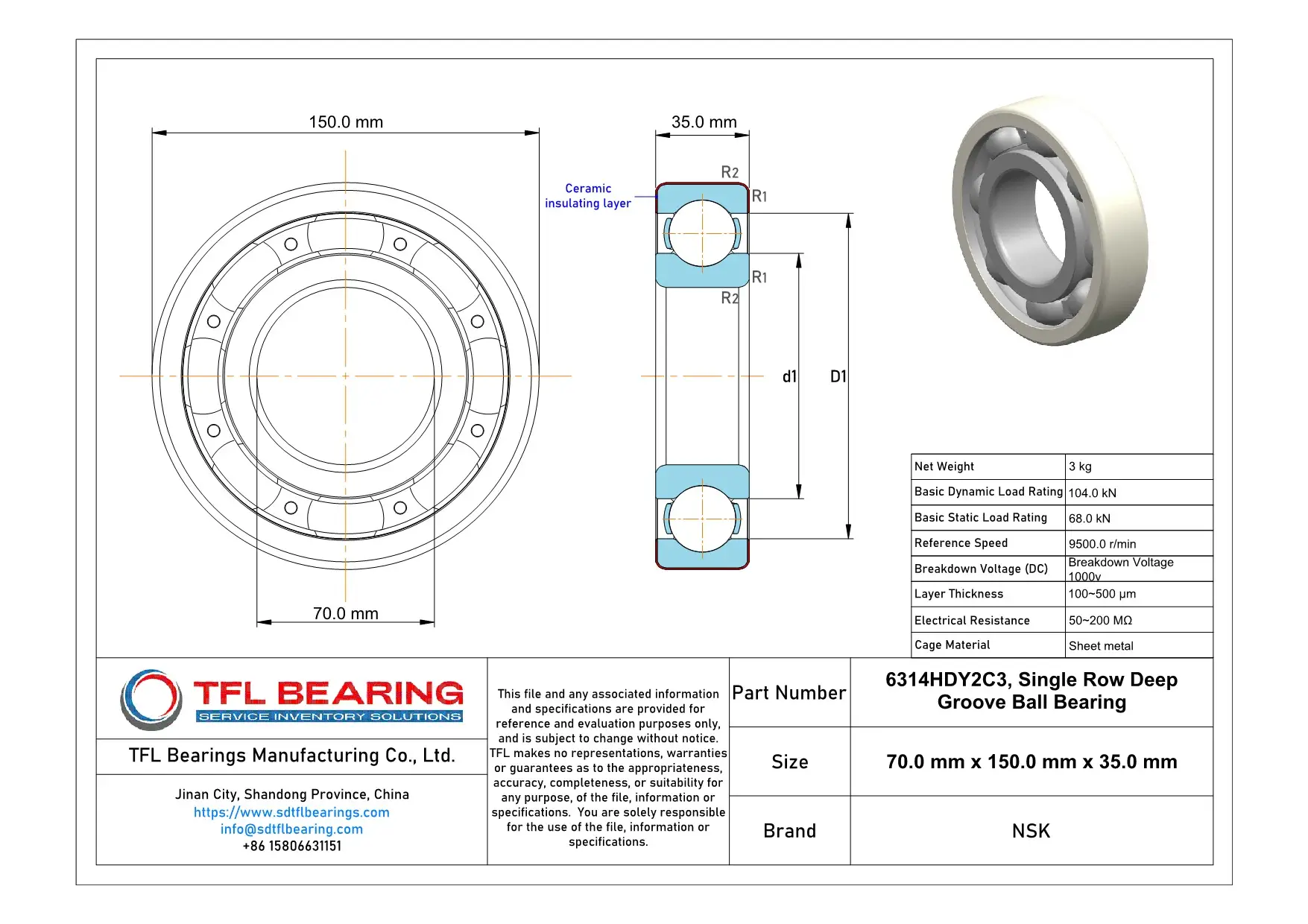

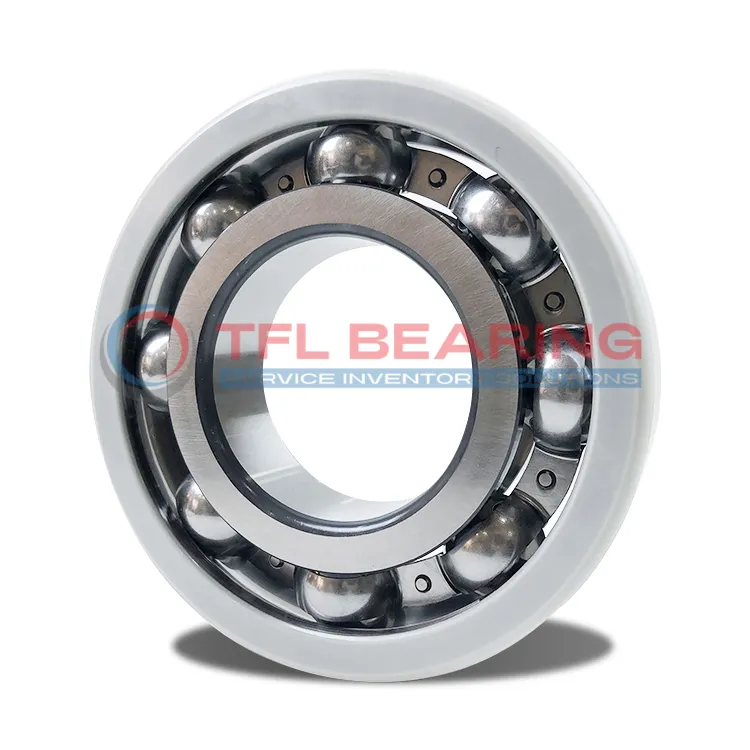

The NSK 6314HDY2C3 is a ceramic-coated insulated ball bearing with a 70mm bore and 150mm outer diameter, designed for electrical insulation. It handles dynamic loads up to 104 kN and spins smoothly at speeds up to 9500 RPM.
The outer ring’s ceramic coating provides insulation with a breakdown voltage of 1000V, making it ideal for electric motors. Its sheet metal cage ensures durability and stable performance.
With a C3 radial clearance, it accommodates thermal expansion in high-speed applications. The bearing weighs 3kg and is compliant with RoHS standards.
Perfect for use in industrial motors or generators where electrical insulation is crucial. Its robust design and reliable performance make it a practical choice for demanding environments.
"*" indicates required fields
How Is 6314HDY2C3 Bearing Engineered for Reliability?
6314HDY2C3 Bearing features a ceramic-coated outer ring, providing excellent insulation against electrical currents.
The coating ensures a breakdown voltage of 1000v, making it suitable for high-voltage environments.
With a dynamic load rating of 104.0 kN, 6314HDY2C3 Bearing handles heavy loads efficiently.
Its sheet metal cage maintains ball alignment, enhancing durability and reducing wear.
The C3 radial internal clearance allows for thermal expansion, ensuring stable performance.
This design makes 6314HDY2C3 Bearing reliable in demanding industrial applications.
Industrial Uses of 6314HDY2C3 Bearing
The 6314HDY2C3 Bearing is commonly used in electric motors and generators, where its ceramic coating prevents electrical arcing and extends service life.
Its high dynamic load rating makes it suitable for industrial machinery operating under demanding conditions.
Where Is 6314HDY2C3 Bearing Used?
You’ll often find 6314HDY2C3 Bearing in wind turbines and railway traction motors, thanks to its insulation properties.
The C3 radial clearance ensures reliable performance even with thermal expansion in high-speed applications.
Built for Heavy-Duty Use: 6314HDY2C3 Bearing
This bearing handles tough environments like steel mills, where its ceramic coating resists corrosion from heat and moisture.
The sheet metal cage provides durability while maintaining smooth rotation under heavy loads.
Automotive vs Aerospace: Applications of 6314HDY2C3 Bearing
In electric vehicles, 6314HDY2C3 Bearing reduces current leakage in drivetrains, improving efficiency.
For aerospace applications, its lightweight design and insulation make it ideal for auxiliary power units.
Perfect Fit for Automation: 6314HDY2C3 Bearing
Robotic arms benefit from 6314HDY2C3 Bearing’s precise movement and electrical insulation.
The high reference speed allows for quick, repetitive motions without compromising accuracy.
