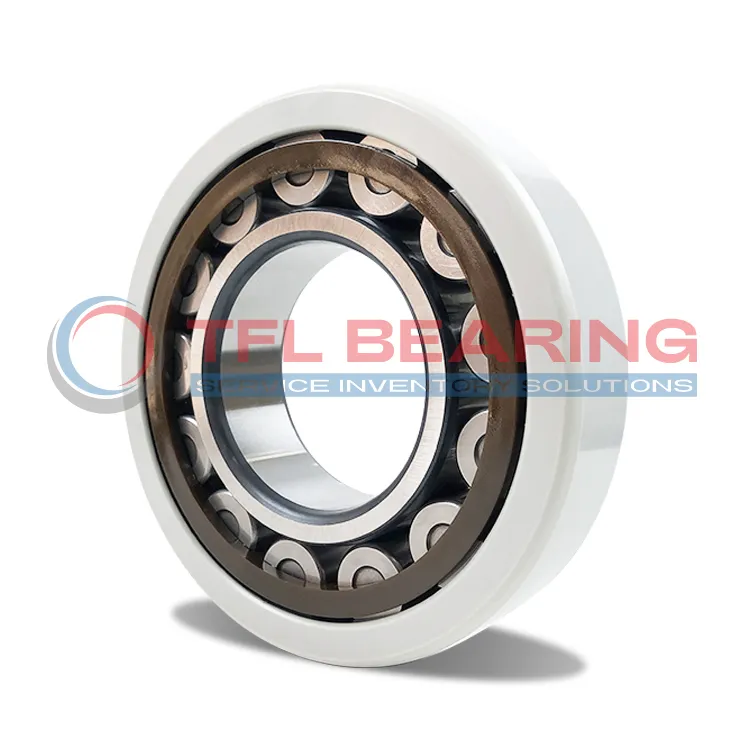

The NJ216-E-TVP3-SQ77 is an electrically insulated cylindrical roller bearing, measuring 80mm by 140mm by 26mm. Made with a polymer cage and an insulating coating on the outer ring, it prevents electrical damage in demanding environments.
This bearing handles dynamic loads up to 160 kN and static loads up to 166 kN, with a reference speed of 5300 RPM. Its insulation provides a breakdown voltage of 1000-3000V, ideal for preventing current leakage.
The polymer cage reduces friction and noise, while the normal radial clearance ensures smooth operation. Compliant with RoHS and REACH standards, it’s safe for various industrial uses.
Perfect for electric motors or generators where electrical insulation is crucial, this bearing offers reliability and durability. Weighing 1.54kg, it’s a robust choice for heavy-duty applications.
"*" indicates required fields
How Is NJ216-E-TVP3-SQ77 Bearing Engineered for Reliability?
NJ216-E-TVP3-SQ77 Bearing features an insulation coating on the outer ring, preventing electrical damage in high-voltage environments.
The polymer cage ensures smooth operation and reduces friction, enhancing durability.
With a basic dynamic load rating of 160 kN, it handles heavy radial loads efficiently.
Its breakdown voltage range of 1000-3000 V makes it suitable for electric motor applications.
Industrial Uses of NJ216-E-TVP3-SQ77 Bearing
NJ216-E-TVP3-SQ77 Bearing is commonly used in electric motors and generators, where its electrically insulated coating prevents current leakage and reduces bearing damage. The polymer cage ensures smooth operation even in high-speed applications.
What Makes NJ216-E-TVP3-SQ77 Bearing a Preferred Choice?
With a breakdown voltage of up to 3000V, NJ216-E-TVP3-SQ77 Bearing is ideal for wind turbines and industrial drives, where electrical insulation is critical. Its robust design handles heavy radial loads with ease.
Perfect Fit for Automation: NJ216-E-TVP3-SQ77 Bearing
In robotic arms and automated production lines, NJ216-E-TVP3-SQ77 Bearing offers reliable performance thanks to its high dynamic load rating. The normal radial clearance ensures consistent precision in repetitive tasks.
Medical vs Industrial: Where NJ216-E-TVP3-SQ77 Bearing Excels
While NJ216-E-TVP3-SQ77 Bearing is versatile for industrial machinery, its electrical insulation also makes it suitable for medical imaging devices. The coating resists wear, ensuring long-term reliability in sensitive environments.
How Does NJ216-E-TVP3-SQ77 Bearing Support High-Speed Operations?
NJ216-E-TVP3-SQ77 Bearing’s reference speed of 5300 r/min makes it a solid choice for spindle applications in CNC machines. The polymer cage reduces friction, enhancing efficiency at high rotations.
