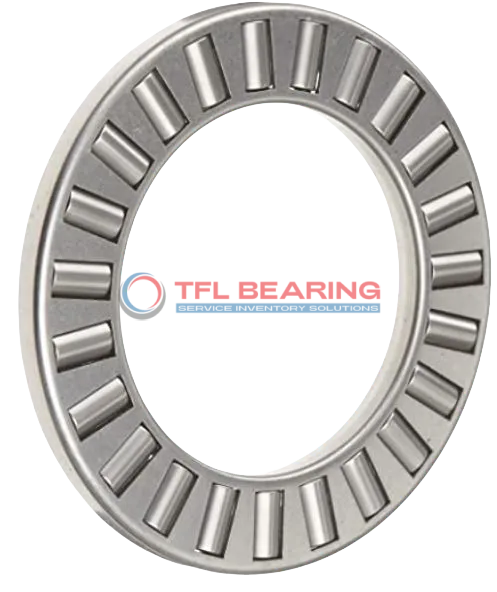

The TC613 is a needle roller thrust bearing cage with a 0.375″ bore and 0.813″ outer diameter, crafted from sturdy steel. It handles thrust loads up to 1598 lbf and can spin at speeds up to 17400 RPM.
Its steel cage and needle rollers ensure durability, while the open design allows for easy lubrication. The bearing operates well in temperatures ranging from -30°C to 110°C.
This model is interchangeable with INA bearings, making it a practical choice for replacements. Suitable for applications like gearboxes or small machinery where high-speed thrust loads are needed.
Compliant with RoHS standards, it’s a reliable option for various industrial uses. The lightweight design ensures easy handling without compromising strength.
"*" indicates required fields
How Does TC613 Bearing Handle High-Speed Applications?
TC613 Bearing is built with steel cages and needles, ensuring stability even at high speeds of up to 17,400 rpm.
Its dynamic thrust load capacity of 1598 lbf makes it suitable for demanding thrust applications.
The steel construction provides durability, while the required lubrication ensures smooth operation.
With a temperature range of -30° to 110°C, it performs reliably in various conditions.
Common Applications of TC613 Bearing
TC613 Bearing is widely used in industrial settings, especially in compact machinery where space is limited but high thrust load capacity is needed. Its steel cage and needle rollers provide reliable performance in conveyor systems and gearboxes.
In automotive applications, TC613 Bearing fits well in components like steering columns and transmission systems. The inch sizing makes it a convenient choice for vehicles designed to imperial measurements.
For automation equipment, TC613 Bearing’s high-speed capability suits robotic arms and precision assembly lines. The required lubrication ensures smooth operation even under continuous use.
Medical devices like dental drills benefit from TC613 Bearing’s consistent thrust handling. Its steel construction offers durability in high-frequency, low-load scenarios.
Household appliances such as power tools often incorporate TC613 Bearing for its compact design. The ABEC-1 rating ensures adequate precision for everyday use.
