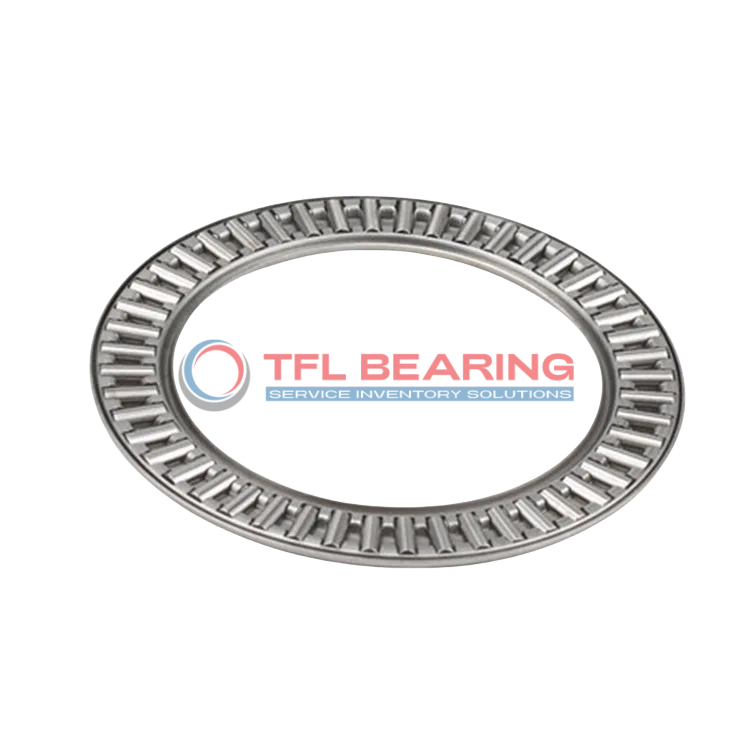

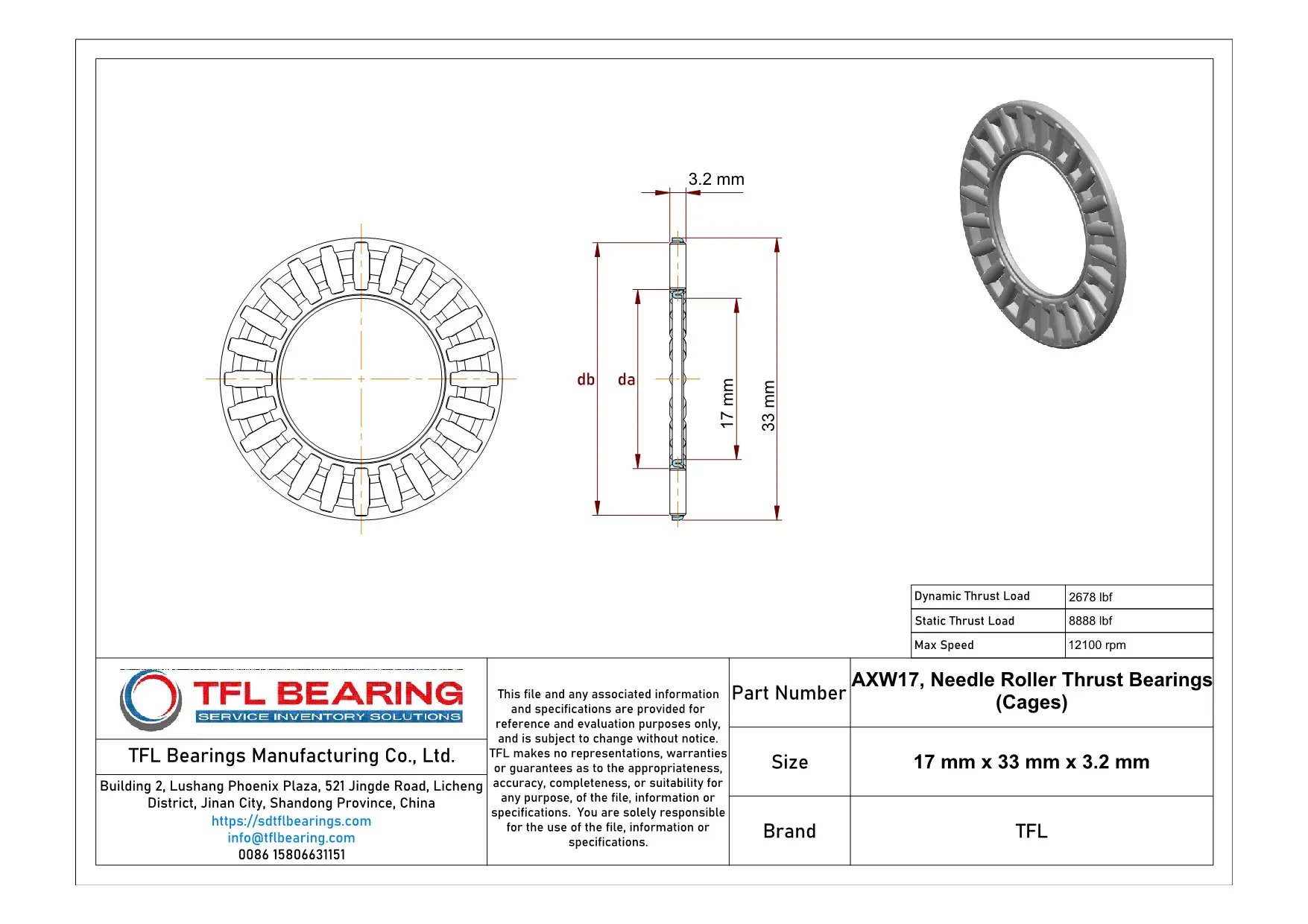

The AXW17 is a needle roller thrust bearing with a 17mm bore and 33mm outer diameter, designed for thrust loads. Its compact width of 3.2mm makes it suitable for tight spaces.
Made from sturdy steel, it handles dynamic thrust loads up to 2678 lbf and static loads up to 8888 lbf. It spins efficiently at speeds up to 12100 RPM, ideal for high-speed applications.
The steel cage ensures smooth operation, while the needle rollers distribute loads evenly. Regular lubrication is needed to maintain performance.
This bearing works well in temperatures from -30°C to 110°C and is interchangeable with INA models. Perfect for use in gearboxes or machinery where space is limited but high thrust capacity is required. Compliant with RoHS standards for safety.
"*" indicates required fields
How Does AXW17 Bearing Handle High-Speed Applications?
AXW17 Bearing is crafted with steel cages and needles, ensuring robust performance under high-speed conditions.
Its dynamic thrust load capacity of 2678 lbf makes it suitable for demanding thrust applications.
The design allows for smooth operation at speeds up to 12,100 rpm, balancing efficiency and durability.
With a temperature range of -30° to 110°C, AXW17 Bearing performs reliably in varied environments.
The steel construction reduces wear, extending the bearing’s service life.
Regular lubrication ensures optimal performance and minimal maintenance needs.
Key Fields for AXW17 Bearing
AXW17 Bearing is commonly used in industrial gearboxes, where its compact design helps manage high thrust loads efficiently. The steel cage ensures durability, even in demanding conditions.
In automotive applications, AXW17 Bearing fits well in clutch assemblies and transmission systems. Its needle roller design provides smooth operation under heavy axial forces.
For automation equipment, AXW17 Bearing supports precise movements in robotic arms and linear guides. The high-speed capability makes it suitable for repetitive tasks.
Medical devices like dental drills benefit from AXW17 Bearing’s reliable performance. The steel construction ensures long service life in sterile environments.
In household appliances, AXW17 Bearing can be found in washing machine pumps. Its low-maintenance design is ideal for everyday use.
