The AXK1528 is a needle roller thrust bearing cage with a 15mm bore and 28mm outer diameter, crafted from sturdy steel. It supports thrust loads up to 2542 lbf and can reach speeds of 13200 RPM, making it suitable for high-performance applications.
Its steel cage and needle rollers ensure durability, while the slim 2mm width saves space in compact designs. Regular lubrication is needed to maintain smooth operation.
This bearing works well in temperatures from -30°C to 110°C and meets RoHS standards. It’s interchangeable with INA models, offering flexibility for replacements.
Ideal for use in gearboxes or machinery where space is limited but high thrust loads are expected. The ABEC-1 rating ensures reliable precision for everyday industrial needs.
"*" indicates required fields
Why Choose AXK1528 Bearing for Precision Tasks?
AXK1528 Bearing features a steel cage and needles, designed to handle high thrust loads with precision.
Its dynamic thrust load capacity of 2542 lbf ensures reliable performance in demanding applications.
The compact 2 mm width makes AXK1528 Bearing suitable for space-constrained installations.
With a maximum speed of 13,200 rpm, it delivers efficient operation in high-speed environments.
AXK1528 Bearing operates within a temperature range of -30° to 110 °C, adapting to various conditions.
Regular lubrication ensures smooth performance and extends the bearing’s service life.
Industrial Uses of AXK1528 Bearing
AXK1528 Bearing is commonly used in machine tools, where its compact design and high thrust load capacity make it ideal for space-constrained applications. The steel cage ensures durability even in demanding industrial environments.
Where Is AXK1528 Bearing Used?
You’ll often find AXK1528 Bearing in automotive gearboxes, where its needle roller design handles high axial loads efficiently. Its metric sizing makes it a versatile choice for various vehicle models.
Perfect Fit for Automation: AXK1528 Bearing
In robotic arms, AXK1528 Bearing provides smooth movement under thrust loads, thanks to its precision engineering. The steel construction ensures long-lasting performance in high-speed operations.
Medical vs Industrial: Where AXK1528 Bearing Excels
AXK1528 Bearing is reliable in medical imaging devices, where consistent performance is critical. Its steel needle rollers also make it suitable for heavy-duty industrial machinery.
How Does AXK1528 Bearing Support High-Speed Operations?
AXK1528 Bearing handles speeds up to 13200 rpm, making it a great fit for conveyor systems. The required lubrication ensures smooth operation over extended periods.
"*" indicates required fields

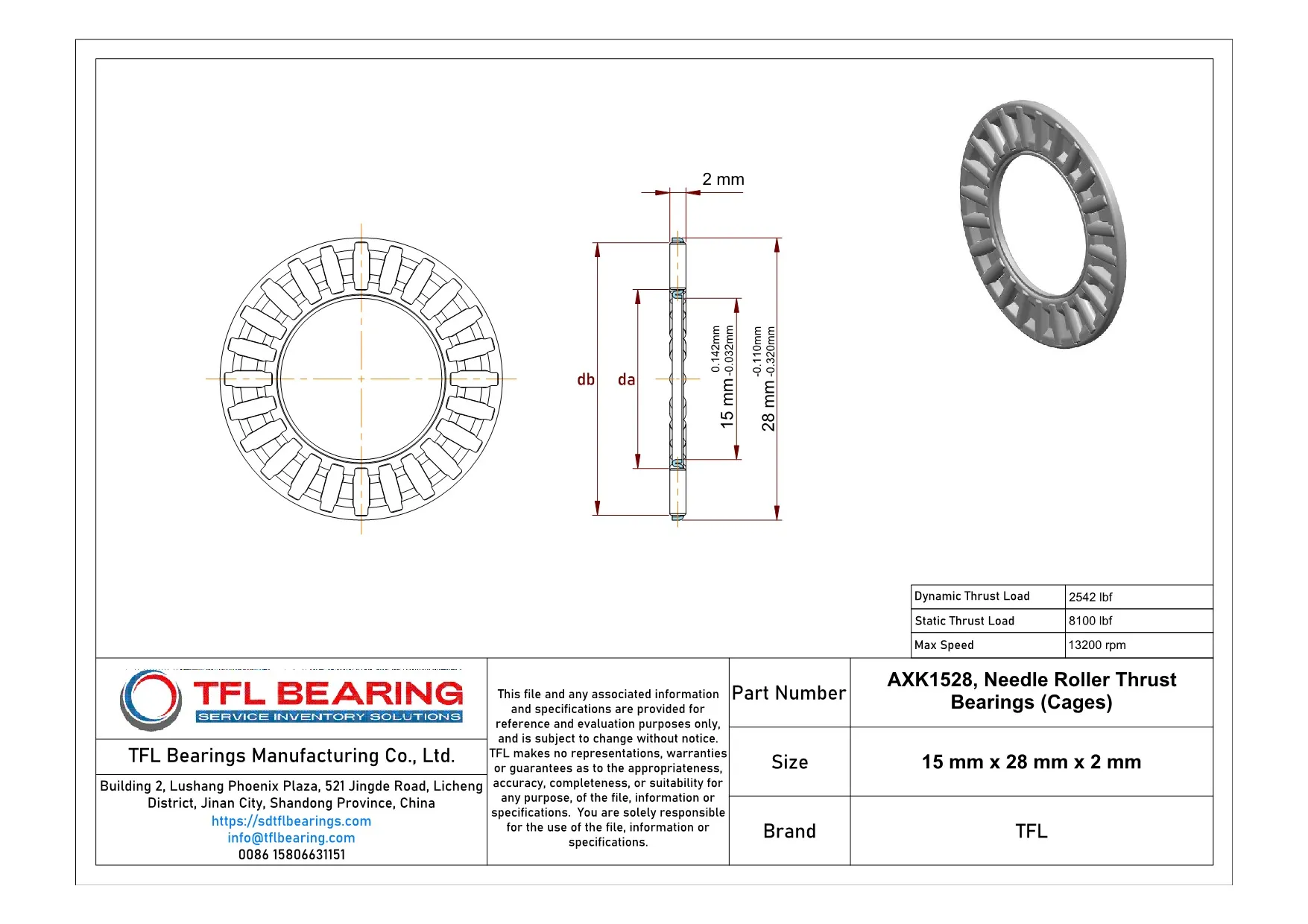

-AXK1528-Drawing.webp)
