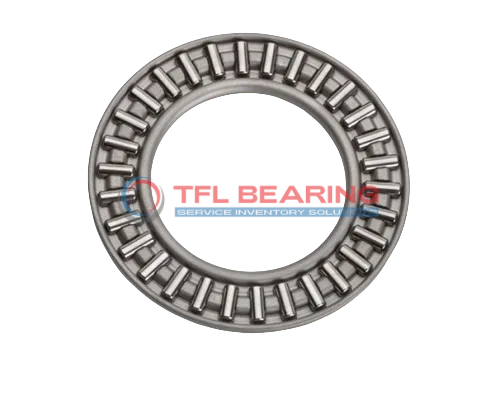

Needle Roller Thrust Bearings (Cages) AXK140180
Needle Roller Thrust Bearings (Cages) AXK140180

Needle Roller Thrust Bearings (Cages) AXK140180

The AXK140180 is a needle roller thrust bearing with a 140mm bore and 180mm outer diameter, designed for heavy thrust loads. Made from sturdy steel, it handles dynamic loads up to 31050 lbf and static loads up to 202500 lbf.
Its compact 5mm width and steel cage provide reliable performance in tight spaces. The bearing operates smoothly at speeds up to 1800 RPM and works in temperatures from -30°C to 110°C.
Regular lubrication is needed to maintain its efficiency. This model is interchangeable with INA bearings, making it a practical choice for replacements.
Ideal for industrial machinery or automotive applications where high thrust loads are common. Compliant with RoHS standards for safe use.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number AXK140180
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 140 mm
  • Bore Dia Tolerance 0.085mm to 0.335mm
  • Outer Dia 180 mm
  • Outer Dia Tolerance -0.630mm to -0.230mm
  • Width 5 mm
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Type Cages
  • For Load Direction Thrust
  • Series AXK&TC
  • Cage Material Steel
  • Needle Material Steel
  • Dynamic Thrust Load 31050 lbf
  • Static Thrust Load 202500 lbf
  • Max Speed 1800 rpm
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • RoHS Compliant
  • Allocated Axial Bearing Washer AS140180

Features

How Does AXK140180 Bearing Handle Heavy Loads?
AXK140180 Bearing is built with steel cages and needles, offering strong resistance to high thrust loads.
Its dynamic thrust load capacity reaches 31050 lbf, making it suitable for demanding industrial applications.
The steel construction ensures durability and reliable performance under heavy stress.
With a maximum speed of 1800 rpm, it balances load capacity and operational efficiency.
Why Choose AXK140180 Bearing for Precision Tasks?
AXK140180 Bearing features precise dimensions with a bore diameter of 140 mm and outer diameter of 180 mm.
The steel cage maintains needle alignment, ensuring smooth and accurate operation.
Its ABEC-1 rating confirms consistent performance for precision applications.
The bearing operates efficiently within a temperature range of -30° to 110°C.
Designed for Durability: AXK140180 Bearing
AXK140180 Bearing’s steel construction provides excellent resistance to wear and tear.
The cage design ensures proper needle alignment, reducing friction and extending service life.
It handles static thrust loads up to 202500 lbf, making it ideal for heavy-duty use.
Regular lubrication enhances its performance and longevity in various conditions.
Steel vs Ceramic Bearings: Strengths of AXK140180 Bearing
AXK140180 Bearing uses high-quality steel for both the cage and needles, ensuring robustness.
The steel material offers superior load-bearing capacity compared to ceramic alternatives.
Its design is optimised for high thrust loads, reaching up to 31050 lbf dynamically.
The bearing performs reliably in temperatures ranging from -30° to 110°C.
Performance Features of AXK140180 Bearing
AXK140180 Bearing is engineered to handle extreme thrust loads with a static capacity of 202500 lbf.
The steel cage and needle construction ensure long-lasting performance in tough conditions.
It operates smoothly at speeds up to 1800 rpm, maintaining efficiency under load.
Regular lubrication is recommended to keep the bearing functioning at its best.

Application

Industrial Uses of AXK140180 Bearing
AXK140180 Bearing is commonly used in heavy machinery, such as hydraulic pumps and gearboxes, where its high thrust load capacity ensures reliable performance. The steel cage and needle rollers provide durability in demanding industrial environments.
Where Is AXK140180 Bearing Used?
In automotive applications, AXK140180 Bearing fits well in transmission systems, handling axial loads efficiently. Its metric dimensions make it a versatile choice for various vehicle designs.
Built for Heavy-Duty Use: AXK140180 Bearing
AXK140180 Bearing excels in construction equipment, supporting components like excavator swing rings. The need for regular lubrication ensures smooth operation even under extreme conditions.
Automotive vs Aerospace: Applications of AXK140180 Bearing
While AXK140180 Bearing is popular in car transmissions, it also finds use in aircraft landing gear systems. Its ability to handle high static thrust loads makes it suitable for both industries.
Perfect Fit for Automation: AXK140180 Bearing
AXK140180 Bearing is ideal for robotic arms in automated production lines, where precision and load capacity are key. The steel construction ensures long service life in continuous operation.
