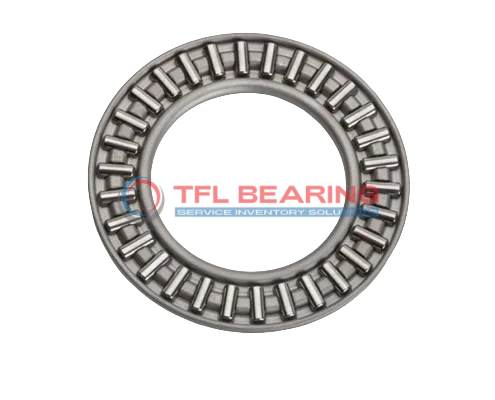

The AXK120155 is a needle roller thrust bearing with a 120mm bore and 155mm outer diameter, designed for heavy-duty thrust loads. Its steel cage and rollers provide durability, handling dynamic loads up to 22950 lbf and static loads up to 153000 lbf.
This bearing operates smoothly at speeds up to 2100 RPM and works in temperatures from -30°C to 110°C. Regular lubrication is needed to maintain its performance over time.
With an ABEC-1 rating, it offers reliable precision for general industrial use. The bearing is interchangeable with INA models, making replacements straightforward.
Ideal for applications like gearboxes or heavy machinery where high thrust loads are common. Its compact 4mm width makes it suitable for space-constrained setups. Compliant with RoHS standards for safe use.
"*" indicates required fields
How Is AXK120155 Bearing Engineered for Reliability?
AXK120155 Bearing features a steel cage and needle rollers, designed to handle high thrust loads with ease.
Its dynamic thrust load capacity of 22,950 lbf ensures dependable performance in demanding applications.
The steel construction provides durability, while the precise tolerances maintain smooth operation.
With a maximum speed of 2,100 rpm, it balances efficiency and longevity.
AXK120155 Bearing requires lubrication, ensuring optimal performance across a temperature range of -30° to 110°C.
Its ABEC-1 rating confirms consistent precision for industrial use.
Industrial Uses of AXK120155 Bearing
AXK120155 Bearing is commonly used in heavy machinery, such as construction equipment and hydraulic pumps, where its high thrust load capacity handles demanding axial forces. The steel cage and needle rollers ensure durability in rugged environments.
Where Is AXK120155 Bearing Used?
You’ll find AXK120155 Bearing in automotive transmissions, where its compact design and high-speed capability support smooth gear shifts. Its metric sizing makes it a fit for many European and Asian vehicle models.
Built for Heavy-Duty Use: AXK120155 Bearing
This bearing excels in industrial gearboxes, providing reliable performance under substantial axial loads. The steel construction and ABEC-1 rating make it a dependable choice for consistent operation.
Automotive vs Aerospace: Applications of AXK120155 Bearing
In automotive systems, AXK120155 Bearing is ideal for clutch assemblies, while in aerospace, it suits auxiliary equipment requiring precise thrust handling. Its temperature range ensures stability in varied conditions.
Perfect Fit for Automation: AXK120155 Bearing
AXK120155 Bearing works well in robotic arms and automated assembly lines, where its low-profile design and high load capacity enhance precision. Regular lubrication keeps it performing smoothly over time.
"*" indicates required fields

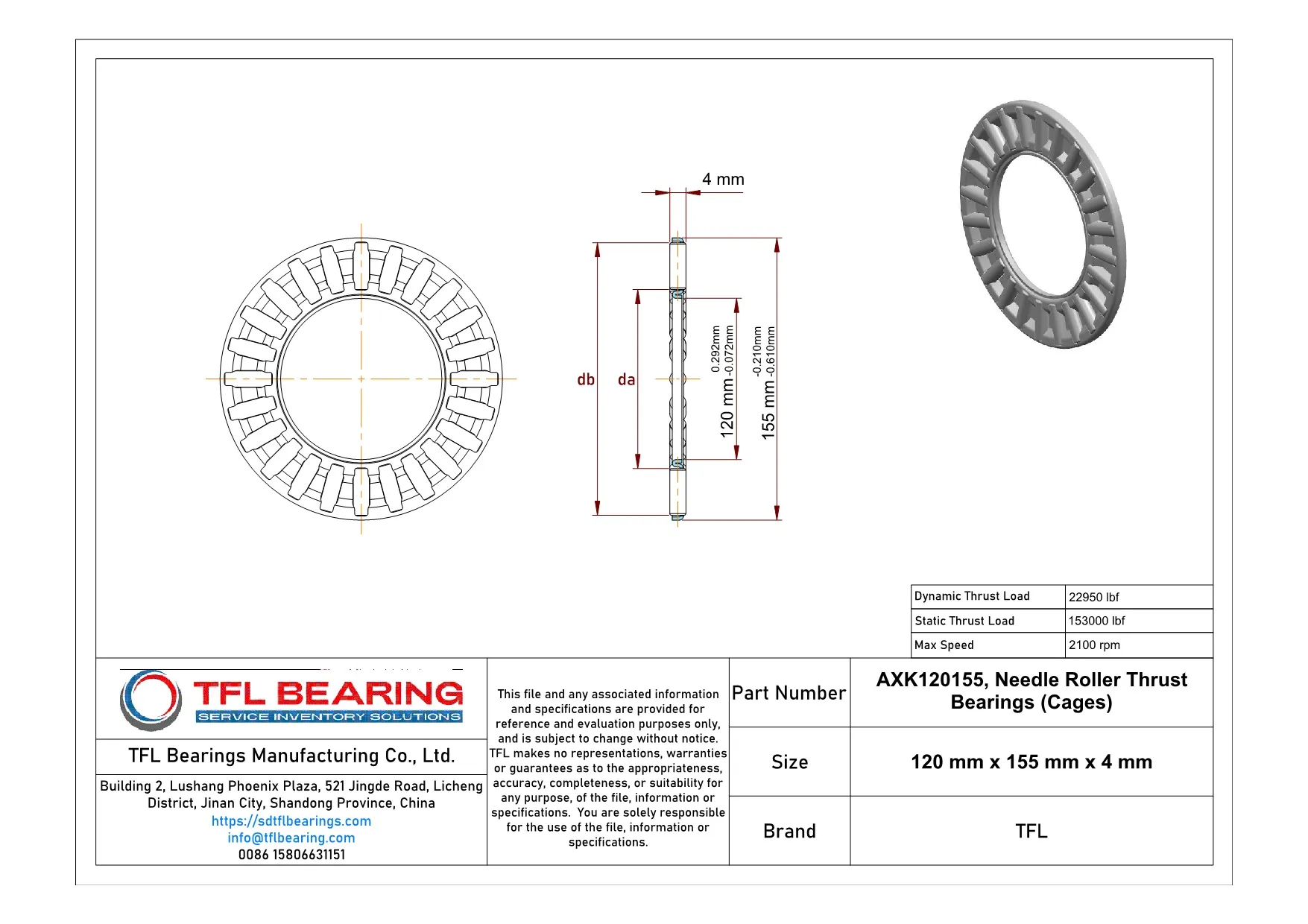

-AXK120155-Drawing.webp)
