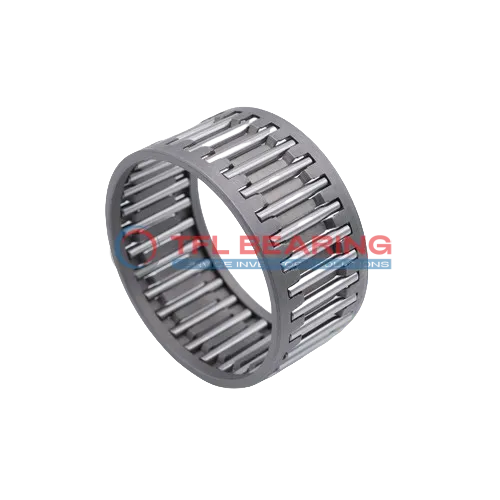

Needle Roller And Cage Assemblies K8X11X13-TV
Needle Roller And Cage Assemblies K8X11X13-TV

Needle Roller And Cage Assemblies K8X11X13-TV

The K8X11X13-TV is a compact needle roller and cage assembly, measuring 8mm in bore, 11mm outer diameter, and 13mm wide. Made from durable steel needles and a PA66 cage, it handles radial loads up to 1148 lbf.
With a max speed of 32500 RPM, it’s designed for high-speed applications. The single-row construction ensures smooth operation and easy installation in tight spaces.
This assembly works well in temperatures from -30°C to 110°C and is RoHS compliant. It’s interchangeable with INA bearings, making it a practical choice for replacements.
Ideal for use in gearboxes, transmissions, or small machinery where space is limited but performance is key. Weighing just 1.7g, it’s lightweight yet robust.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number K8X11X13-TV
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 8 mm
  • Outer Dia 11 mm
  • Width 13 mm
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Construction Single Row
  • Series K Series
  • Cage Material PA66
  • Needle Material Steel
  • Dynamic Radial Load 1148 lbf
  • Static Radial Load 1305 lbf
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • Max Speed 32500 rpm
  • Weight 1.7 g

Features

How Does K8X11X13-TV Bearing Achieve High-Speed Performance?
K8X11X13-TV Bearing features a lightweight PA66 cage, ensuring smooth operation at speeds up to 32,500 rpm.
The steel needle rollers provide excellent radial load capacity, handling up to 1148 lbf dynamically.
Its compact design with an 8 mm bore and 11 mm outer diameter makes it ideal for space-constrained applications.
The temperature range of -30° to 110°C ensures reliable performance in various environments.
K8X11X13-TV Bearing’s single-row construction simplifies installation while maintaining precision.
With a static radial load capacity of 1305 lbf, it offers durability in demanding conditions.

Application

Industrial Uses of K8X11X13-TV Bearing
K8X11X13-TV Bearing is commonly used in compact industrial gearboxes, where its needle roller design provides efficient load distribution in tight spaces. The PA66 cage ensures smooth operation even at high speeds, making it suitable for conveyor systems.
What Makes K8X11X13-TV Bearing a Preferred Choice?
In automotive applications, K8X11X13-TV Bearing fits well in transmission systems due to its lightweight and high-speed capabilities. The steel needle rollers offer durability, ensuring long service life under constant stress.
Perfect Fit for Automation: K8X11X13-TV Bearing
This bearing works seamlessly in robotic arms, where precision and low friction are key. Its metric dimensions make it easy to integrate into various automated systems without modifications.
Medical vs Industrial: Where K8X11X13-TV Bearing Excels
While K8X11X13-TV Bearing performs reliably in medical pumps, its true strength lies in industrial machinery like printing presses. The temperature resistance ensures consistent performance in both environments.
How Does K8X11X13-TV Bearing Support High-Speed Operations?
With a max speed of 32500 rpm, K8X11X13-TV Bearing is ideal for electric tools and small motors. The steel construction handles radial loads effortlessly, making it a dependable choice for high-speed applications.
