Needle Roller And Cage Assemblies K70X76X30
Needle Roller And Cage Assemblies K70X76X30

Needle Roller And Cage Assemblies K70X76X30

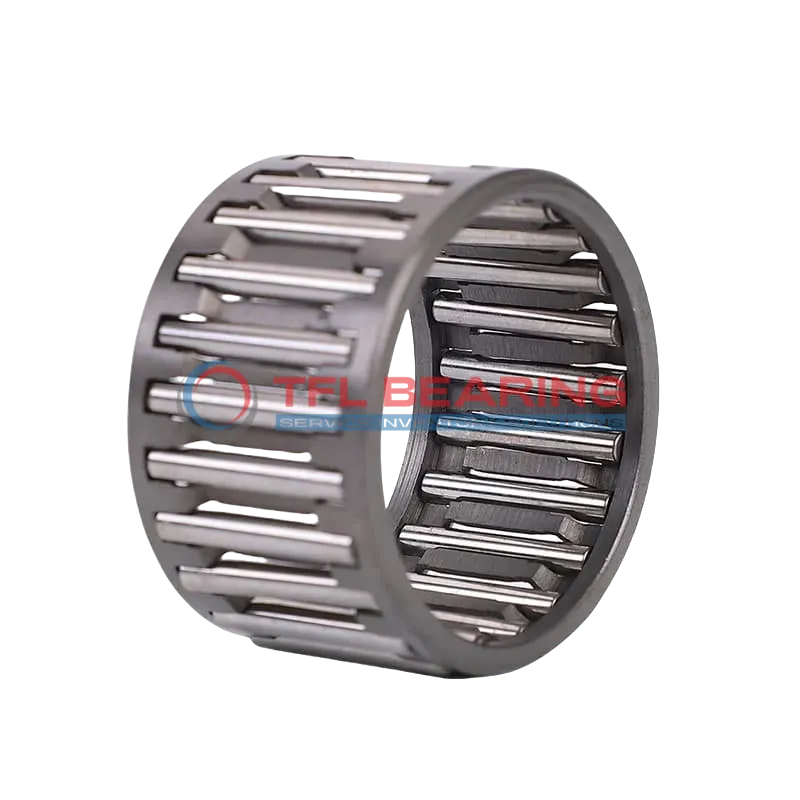

The K70X76X30 is a needle roller and cage assembly with a 70mm bore and 76mm outer diameter, crafted from sturdy steel. It handles radial loads up to 11700 lbf and operates smoothly at speeds up to 6700 RPM.
Its single-row design with a steel cage ensures durability and consistent performance. The assembly works well in temperatures ranging from -30°C to 110°C.
This model is interchangeable with INA bearings, making it a practical choice for replacements. Ideal for applications like gearboxes or automotive components where space is limited but high load capacity is needed.
Weighing just 110g, it’s lightweight yet robust for its size. Compliant with RoHS standards for safe use.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number K70X76X30
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 70 mm
  • Outer Dia 76 mm
  • Width 30 mm
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Construction Single Row
  • Series K Series
  • Cage Material Steel
  • Needle Material Steel
  • Dynamic Radial Load 11700 lbf
  • Static Radial Load 31275 lbf
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • Max Speed 6700 rpm
  • Weight 110 g

Features

Why Choose K70X76X30 Bearing for Precision Tasks?
K70X76X30 Bearing features a steel cage and needle rollers, ensuring precise alignment and smooth operation.
Its dynamic radial load capacity of 11,700 lbf makes it suitable for high-performance applications.
The compact design of K70X76X30 Bearing allows for efficient use in limited spaces.
With a maximum speed of 6,700 rpm, it delivers reliable performance under demanding conditions.
K70X76X30 Bearing operates within a temperature range of -30° to 110°C, ensuring versatility.
Its steel construction provides durability and resistance to wear, extending service life.
The single-row design of K70X76X30 Bearing simplifies installation and maintenance.
Weighing just 110 g, it offers a lightweight solution without compromising strength.

Application

Key Fields for K70X76X30 Bearing
K70X76X30 Bearing is commonly used in industrial gearboxes, where its compact design and high load capacity make it ideal for tight spaces. The steel construction ensures durability even in demanding conditions.
In automotive applications, K70X76X30 Bearing fits well in transmission systems, providing smooth rotation under heavy radial loads. Its metric sizing makes it a versatile choice for various vehicle models.
For automation equipment, K70X76X30 Bearing offers reliable performance in robotic arms and conveyor systems. The high-speed capability up to 6700 rpm ensures efficient operation in continuous-use scenarios.
What Makes K70X76X30 Bearing a Preferred Choice?
K70X76X30 Bearing works well in printing machinery, where precision and stability are key. Its needle roller design reduces friction, enhancing overall efficiency.
In household appliances like washing machines, K70X76X30 Bearing supports rotating drums with minimal noise. The steel cage and needles provide long-lasting performance even with frequent use.
