Needle Roller And Cage Assemblies K65X70X20
Needle Roller And Cage Assemblies K65X70X20

Needle Roller And Cage Assemblies K65X70X20

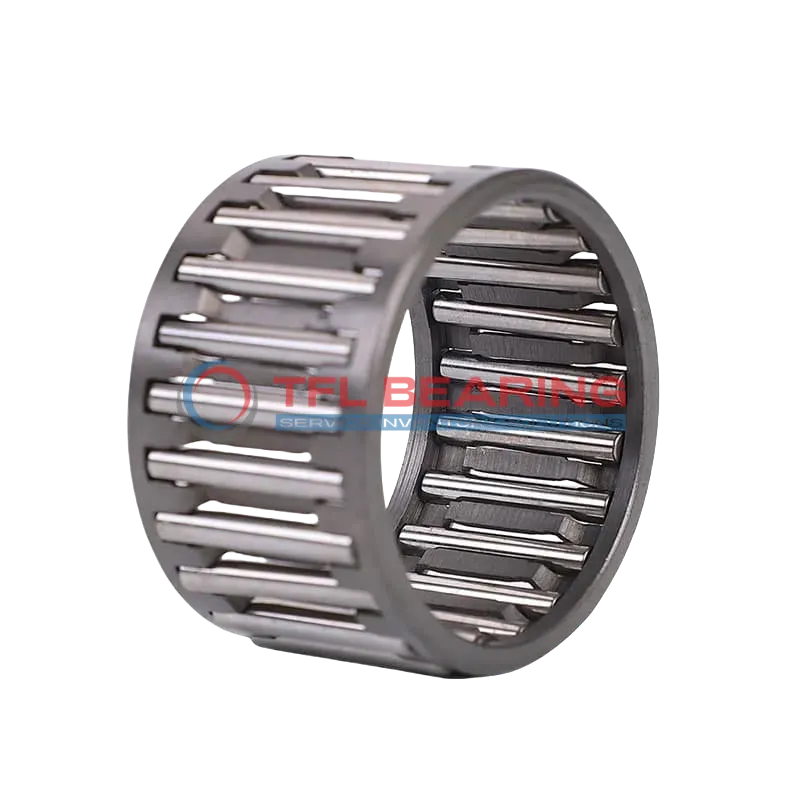

The K65X70X20 is a needle roller and cage assembly with a 65mm bore and 70mm outer diameter, crafted from sturdy steel. It handles radial loads up to 6862 lbf and operates smoothly at speeds up to 7300 RPM.
Its single-row design and steel cage provide reliable performance, even in demanding conditions. The assembly works well in temperatures ranging from -30°C to 110°C.
This model is interchangeable with INA bearings, making it a practical choice for replacements. Ideal for applications like transmissions or industrial machinery where space is limited but high load capacity is needed.
Weighing just 56g, it’s lightweight yet durable. Compliant with RoHS standards for safe use.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number K65X70X20
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 65 mm
  • Outer Dia 70 mm
  • Width 20 mm
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Construction Single Row
  • Series K Series
  • Cage Material Steel
  • Needle Material Steel
  • Dynamic Radial Load 6862 lbf
  • Static Radial Load 17325 lbf
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • Max Speed 7300 rpm
  • Weight 56 g

Features

Why Choose K65X70X20 Bearing for Precision Tasks?
K65X70X20 Bearing features a steel cage and needles, ensuring precise alignment and smooth operation.
Its dynamic radial load capacity of 6862 lbf makes it suitable for high-performance applications.
The compact design with a 20 mm width allows for easy integration into tight spaces.
With a maximum speed of 7300 rpm, it delivers reliable performance in demanding conditions.
K65X70X20 Bearing operates efficiently within a temperature range of -30° to 110 °C.
Its compliance with RoHS standards ensures environmental safety and durability.

Application

Industrial Uses of K65X70X20 Bearing
K65X70X20 Bearing is commonly used in industrial gearboxes, where its compact design and high load capacity make it ideal for tight spaces. The steel construction ensures durability even in demanding environments.
In automotive applications, K65X70X20 Bearing fits well in transmission systems, providing smooth operation under radial loads. Its metric sizing makes it a versatile choice for various vehicle models.
For automation equipment, K65X70X20 Bearing offers reliable performance in robotic arms and conveyor systems. The single-row design simplifies installation and maintenance.
In household appliances like washing machines, K65X70X20 Bearing supports rotating parts with minimal noise. Its steel cage enhances longevity, making it a cost-effective solution.
Medical devices such as lab centrifuges benefit from K65X70X20 Bearing’s precision and stability. The high-speed capability ensures consistent performance in critical applications.
