Needle Roller And Cage Assemblies K60X68X23
Needle Roller And Cage Assemblies K60X68X23

Needle Roller And Cage Assemblies K60X68X23

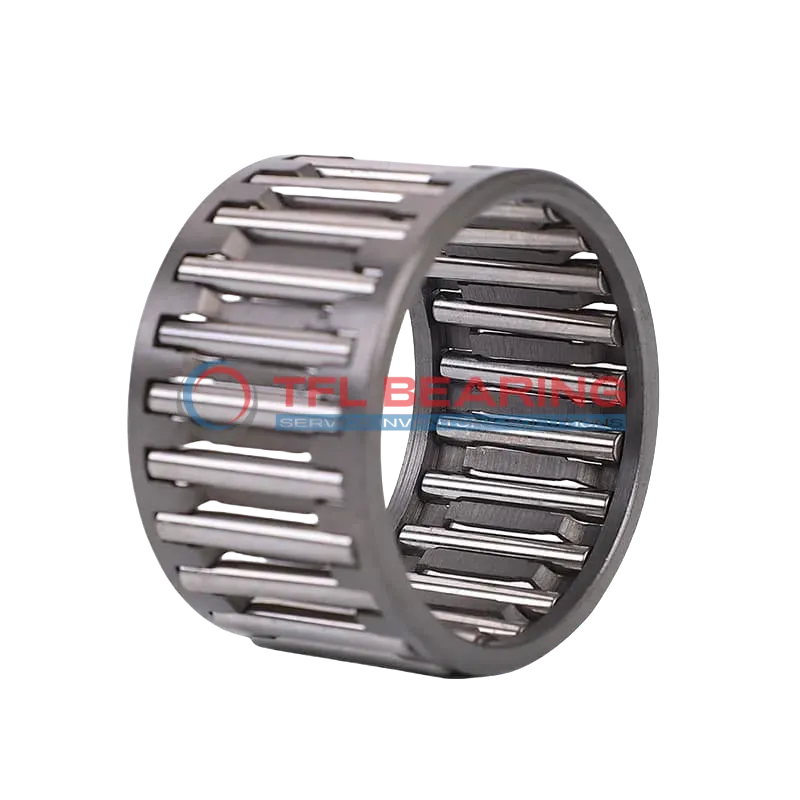

The K60X68X23 is a needle roller and cage assembly with a 60mm bore and 68mm outer diameter, crafted from sturdy steel. It supports radial loads up to 11138 lbf and operates smoothly at speeds up to 7700 RPM.
Its single-row design with a steel cage ensures reliable performance in compact spaces. The assembly is lightweight at just 94g, making it easy to handle during installation.
This model is interchangeable with INA bearings, offering a practical replacement option. It works well in temperatures from -30°C to 110°C, suitable for gearboxes or automotive applications.
Compliant with RoHS standards, it’s a dependable choice for industrial and mechanical uses where space and load capacity are key factors.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number K60X68X23
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 60 mm
  • Outer Dia 68 mm
  • Width 23 mm
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Construction Single Row
  • Series K Series
  • Cage Material Steel
  • Needle Material Steel
  • Dynamic Radial Load 11138 lbf
  • Static Radial Load 22725 lbf
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • Max Speed 7700 rpm
  • Weight 94 g

Features

How Does K60X68X23 Bearing Handle High-Speed Applications?
K60X68X23 Bearing features a steel cage and needles, ensuring stability even at high speeds up to 7,700 rpm.
Its dynamic radial load capacity of 11,138 lbf makes it suitable for demanding industrial environments.
The compact design with a 60 mm bore and 68 mm outer diameter fits seamlessly into tight spaces.
K60X68X23 Bearing operates efficiently within a temperature range of -30° to 110°C.
With a static radial load capacity of 22,725 lbf, it offers reliable performance under heavy loads.
The steel construction ensures durability and long service life in various applications.

Application

Industrial Uses of K60X68X23 Bearing
K60X68X23 Bearing is commonly used in industrial gearboxes, where its compact design and high load capacity make it ideal for space-constrained applications. The steel cage and needles ensure durability even in demanding environments.
In automotive transmissions, K60X68X23 Bearing provides smooth operation under high radial loads, enhancing performance and longevity. Its metric sizing ensures compatibility with a variety of vehicle models.
For automation systems, K60X68X23 Bearing is a reliable choice for robotic arms and conveyor mechanisms, thanks to its high-speed capability and consistent performance. The steel construction also resists wear over time.
Where Is K60X68X23 Bearing Used?
You’ll often find K60X68X23 Bearing in printing machinery, where its precision and reliability keep operations running smoothly. The needle roller design handles high radial loads with ease.
In household appliances like washing machines, K60X68X23 Bearing supports rotating parts, ensuring quiet and efficient performance. Its steel construction makes it resistant to everyday wear and tear.
Built for Heavy-Duty Use: K60X68X23 Bearing
K60X68X23 Bearing excels in construction equipment, where its robust design handles heavy radial loads without faltering. The steel needles and cage provide long-lasting performance.
In agricultural machinery, K60X68X23 Bearing ensures reliable operation in harsh conditions, from tractors to harvesters. Its high-speed capability and durability make it a trusted component.
Light-Duty vs Heavy-Duty: Best Uses for K60X68X23 Bearing
For light-duty applications like office printers, K60X68X23 Bearing offers quiet and efficient performance. Its compact design fits seamlessly into smaller mechanisms.
In heavy-duty scenarios like industrial presses, K60X68X23 Bearing stands up to intense radial loads, ensuring consistent operation. The steel construction guarantees durability under stress.
