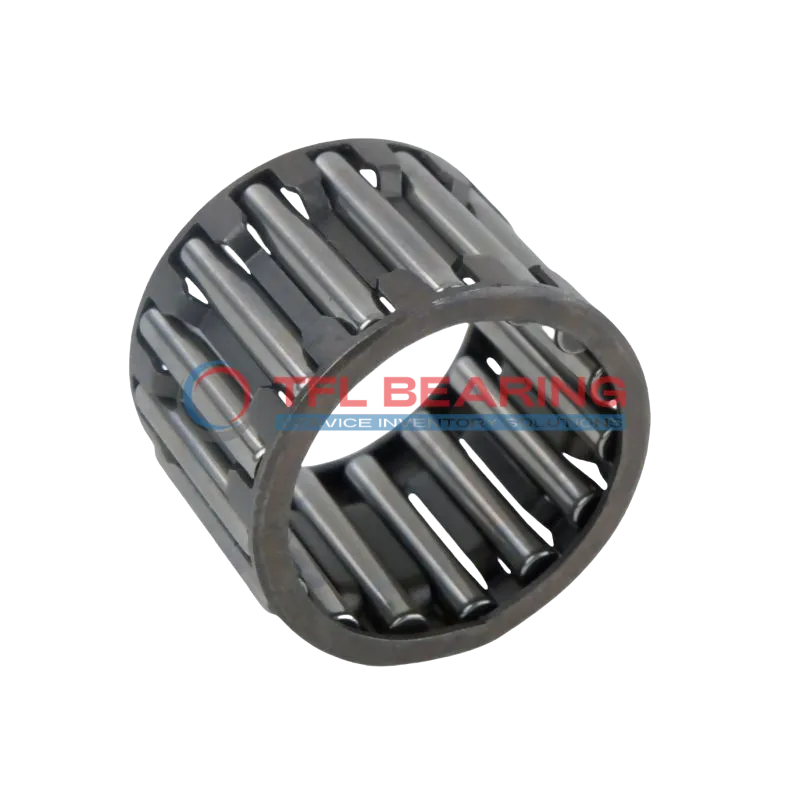

Needle Roller And Cage Assemblies K60X65X20
Needle Roller And Cage Assemblies K60X65X20

Needle Roller And Cage Assemblies K60X65X20

The K60X65X20 is a needle roller and cage assembly with a 60mm bore and 65mm outer diameter, crafted from sturdy steel for reliable performance. It handles radial loads up to 6638 lbf and spins smoothly at speeds up to 7800 RPM.
Its single-row design and steel cage ensure durability, while the compact 20mm width fits neatly in tight spaces. The assembly operates efficiently in temperatures from -30°C to 110°C.
This model is interchangeable with INA bearings, offering a practical replacement option. Ideal for applications like transmissions or pumps where space is limited but high load capacity is needed.
Weighing just 52g, it’s lightweight yet robust. Compliant with RoHS standards for safe and eco-friendly use.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number K60X65X20
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 60 mm
  • Outer Dia 65 mm
  • Width 20 mm
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Construction Single Row
  • Series K Series
  • Cage Material Steel
  • Needle Material Steel
  • Dynamic Radial Load 6638 lbf
  • Static Radial Load 16200 lbf
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • Max Speed 7800 rpm
  • Weight 52 g

Features

How Does K60X65X20 Bearing Handle High-Speed Applications?
K60X65X20 Bearing features a steel cage and needles, ensuring durability and smooth operation at high speeds.
With a maximum speed of 7,800 rpm, it is suitable for demanding industrial applications.
The dynamic radial load capacity of 6,638 lbf makes K60X65X20 Bearing reliable under heavy loads.
Its compact design and single-row construction save space while maintaining performance.
K60X65X20 Bearing operates efficiently in temperatures ranging from -30° to 110°C.
The steel construction resists wear, extending the bearing’s service life.
Easy to install and maintain, K60X65X20 Bearing reduces downtime and operational costs.
Its compatibility with INA models adds versatility for various machinery needs.

Application

Key Fields for K60X65X20 Bearing
K60X65X20 Bearing is commonly used in industrial gearboxes, where its compact design helps save space while handling high radial loads. The steel construction ensures durability in demanding environments like conveyor systems and power transmission units.
In automotive applications, K60X65X20 Bearing fits well in transmission systems and steering mechanisms, providing smooth rotation under heavy loads. Its metric sizing makes it a versatile choice for various vehicle models.
For automation equipment, K60X65X20 Bearing’s needle roller design offers precise movement in robotic arms and linear guides. The high-speed capability up to 7800 rpm makes it suitable for dynamic operations in production lines.
Where to Use K60X65X20 Bearing
K60X65X20 Bearing works effectively in printing machinery, where its low profile and high load capacity support consistent paper feed mechanisms. The steel cage maintains alignment even during prolonged use.
In household appliances like washing machines, K60X65X20 Bearing reduces friction in drum rotations, ensuring quiet and efficient performance. Its temperature tolerance makes it reliable for daily use.
