Needle Roller And Cage Assemblies K55X60X30
Needle Roller And Cage Assemblies K55X60X30

Needle Roller And Cage Assemblies K55X60X30

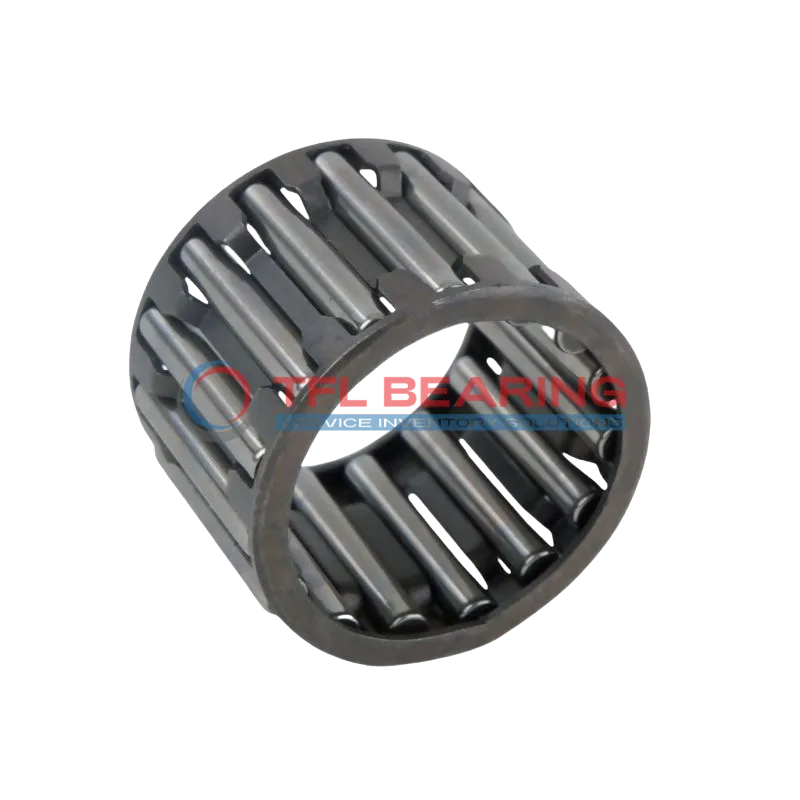

The K55X60X30 is a needle roller and cage assembly with a 55mm bore and 60mm outer diameter, crafted from sturdy steel. It handles radial loads up to 9225 lbf and operates smoothly at speeds up to 8500 RPM.
Its single-row design with a steel cage ensures reliable performance, even in demanding conditions. The assembly works well in temperatures ranging from -30°C to 110°C.
This model is interchangeable with INA bearings, making it a practical choice for replacements. Ideal for applications like transmissions or industrial machinery where space is limited but high load capacity is needed.
Weighing just 71g, it’s lightweight yet durable. Compliant with RoHS standards for safe and eco-friendly use.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number K55X60X30
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 55 mm
  • Outer Dia 60 mm
  • Width 30 mm
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Construction Single Row
  • Series K Series
  • Cage Material Steel
  • Needle Material Steel
  • Dynamic Radial Load 9225 lbf
  • Static Radial Load 24300 lbf
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • Max Speed 8500 rpm
  • Weight 71 g

Features

How Does K55X60X30 Bearing Handle High-Speed Applications?
K55X60X30 Bearing is built with steel needles and a steel cage, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 9225 lbf, making it suitable for high-speed operations.
The compact design of K55X60X30 Bearing ensures smooth performance even at speeds up to 8,500 rpm.
Its temperature range of -30° to 110°C allows reliable use in various environments.
K55X60X30 Bearing’s single-row construction provides stability and reduces maintenance needs.
The lightweight design at just 71 grams makes it easy to handle and install.

Application

Key Fields for K55X60X30 Bearing
K55X60X30 Bearing is commonly used in industrial gearboxes, where its compact design and high load capacity make it ideal for space-constrained applications. The steel construction ensures durability even in demanding environments.
In automotive transmissions, K55X60X30 Bearing handles high radial loads efficiently, contributing to smoother gear shifts. Its metric sizing allows for easy integration into various vehicle models.
For automation systems, K55X60X30 Bearing provides reliable performance in robotic arms and conveyor belts. The high-speed capability ensures consistent operation in fast-paced production lines.
Medical imaging devices benefit from K55X60X30 Bearing’s precision and low maintenance needs. The steel cage and needles offer long-lasting performance in critical healthcare equipment.
Household appliances like washing machines often use K55X60X30 Bearing for its quiet operation and reliability. Its lightweight design helps reduce overall machine weight without compromising performance.
