Needle Roller And Cage Assemblies K50X58X20
Needle Roller And Cage Assemblies K50X58X20

Needle Roller And Cage Assemblies K50X58X20

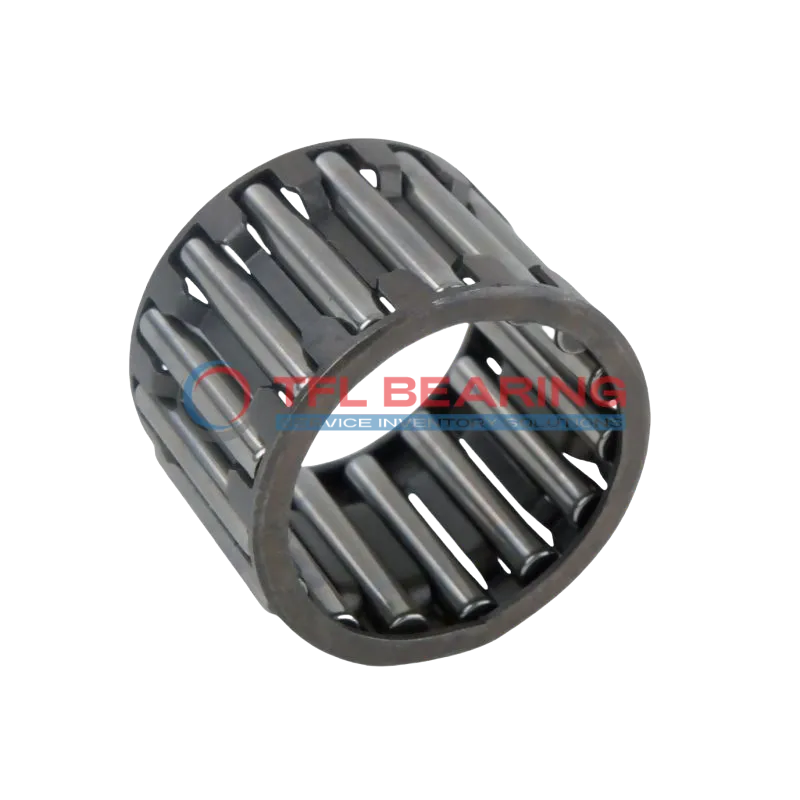

The K50X58X20 is a needle roller and cage assembly with a 50mm bore and 58mm outer diameter, crafted from sturdy steel for reliable performance. It handles radial loads up to 7988 lbf and spins smoothly at speeds up to 9100 RPM.
Its single-row construction and steel cage ensure durability, while the compact 20mm width fits snugly in tight spaces. The assembly operates efficiently in temperatures ranging from -30°C to 110°C.
This model is interchangeable with INA bearings, making it a practical choice for replacements. Ideal for applications like gear pumps or automotive transmissions where space and load capacity are key.
Weighing just 75g, it’s lightweight yet robust. Compliant with RoHS standards for safe and eco-friendly use.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number K50X58X20
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 50 mm
  • Outer Dia 58 mm
  • Width 20 mm
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Construction Single Row
  • Series K Series
  • Cage Material Steel
  • Needle Material Steel
  • Dynamic Radial Load 7988 lbf
  • Static Radial Load 13950 lbf
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • Max Speed 9100 rpm
  • Weight 75 g

Features

How Does K50X58X20 Bearing Handle High-Speed Applications?
K50X58X20 Bearing is built with steel needles and cage, offering strong radial load capacity up to 7988 lbf.
Its compact design ensures efficient performance in high-speed applications, reaching up to 9100 rpm.
The single-row construction provides stability and reduces friction during operation.
With a temperature range of -30° to 110°C, it performs reliably in various environments.
K50X58X20 Bearing’s lightweight design at 75g makes it suitable for applications where weight is a concern.
Its steel components ensure durability and long service life under demanding conditions.

Application

Industrial Uses of K50X58X20 Bearing
K50X58X20 Bearing is commonly used in industrial gearboxes, where its compact design and high load capacity make it ideal for space-constrained applications. The steel construction ensures durability even in demanding environments.
In automotive transmissions, K50X58X20 Bearing provides smooth operation under high radial loads, enhancing performance and longevity. Its metric sizing ensures compatibility with a variety of vehicle models.
For automation systems, K50X58X20 Bearing is a reliable choice for robotic arms and conveyor belts, thanks to its high-speed capabilities. The single-row design simplifies installation and maintenance.
Where Is K50X58X20 Bearing Used?
K50X58X20 Bearing can be found in printing machinery, where its precision and speed support consistent paper handling. The steel needles and cage offer excellent wear resistance.
In household appliances like washing machines, K50X58X20 Bearing ensures quiet and efficient operation. Its compact size and robust design make it a practical solution for everyday use.
