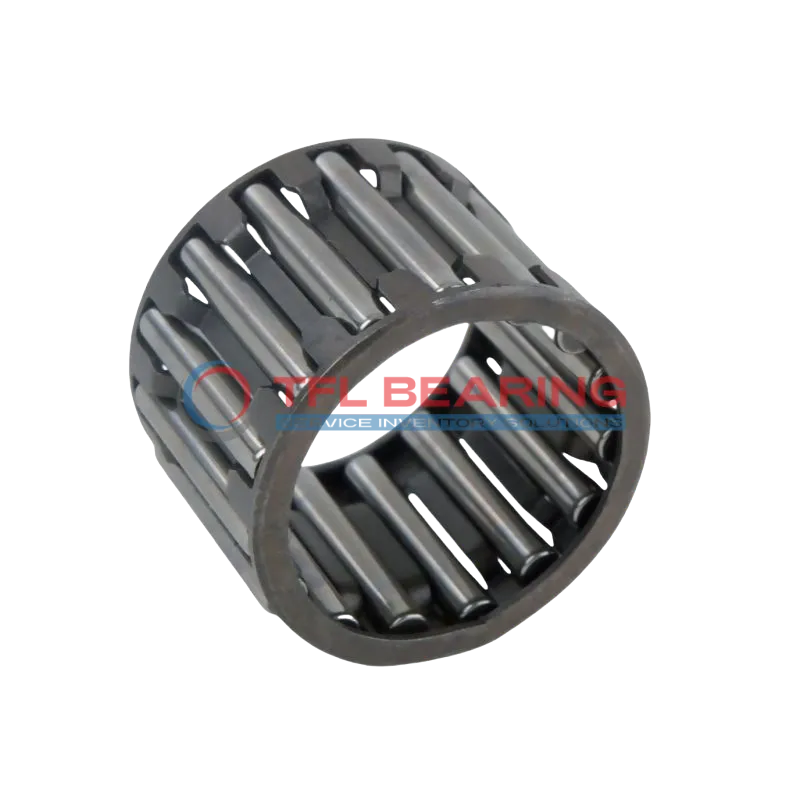

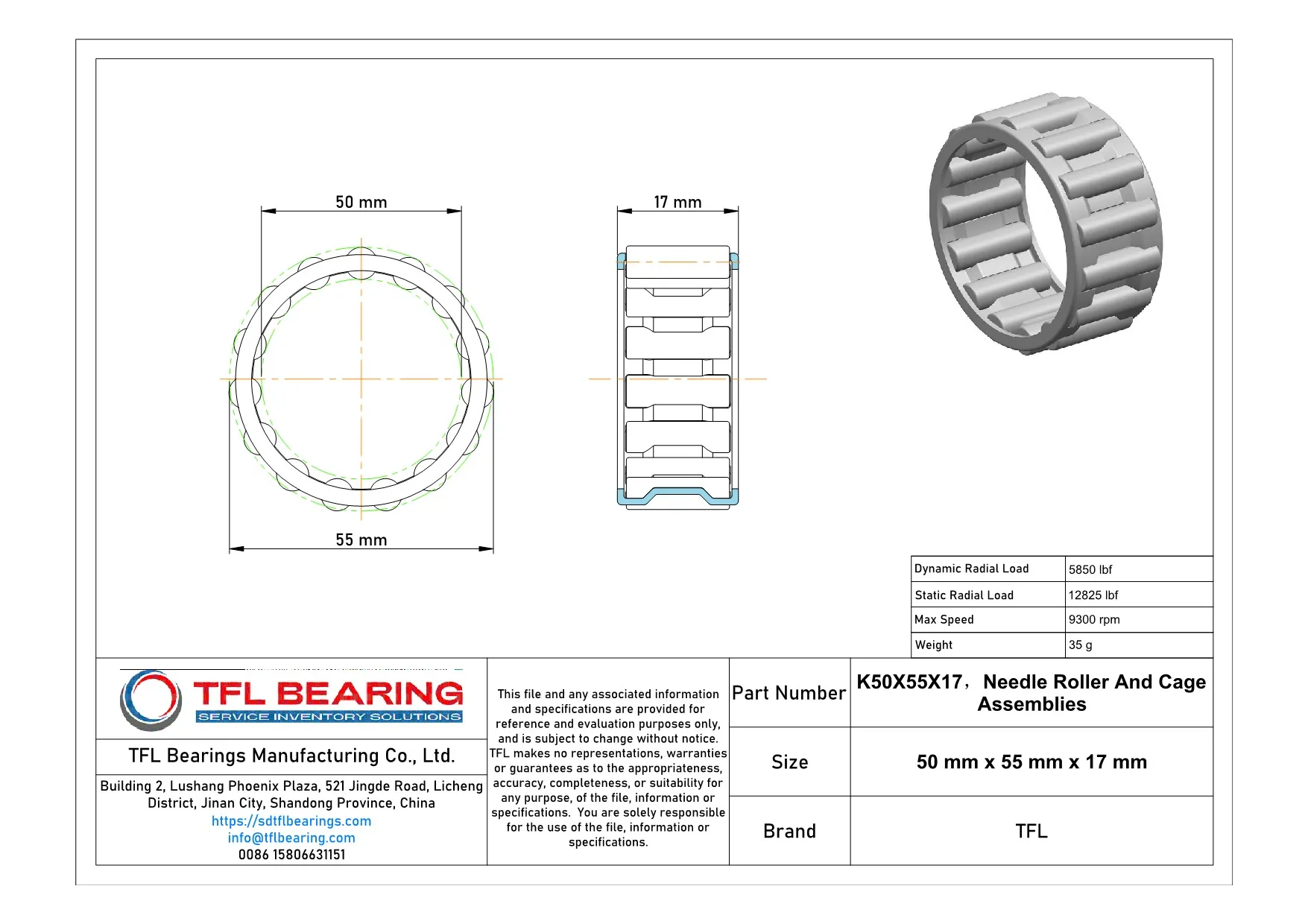

The K50X55X17 is a needle roller and cage assembly with a 50mm bore and 55mm outer diameter, built from sturdy steel for reliable performance. It handles radial loads up to 5850 lbf and spins smoothly at speeds up to 9300 RPM.
Its single-row design and steel cage ensure durability, while the compact 17mm width fits snugly in tight spaces. The assembly works well in temperatures from -30°C to 110°C.
This model is interchangeable with INA bearings, making it a practical choice for replacements. Ideal for applications like gear pumps or automotive transmissions where space is limited but performance is key.
Weighing just 35g, it’s lightweight yet robust. Compliant with RoHS standards for safe use.
"*" indicates required fields
How Does K50X55X17 Bearing Handle Heavy Loads?
K50X55X17 Bearing features a sturdy steel cage and needle rollers, designed to manage high radial loads efficiently.
Its dynamic radial load capacity reaches 5850 lbf, making it suitable for demanding industrial applications.
The compact design with a 17 mm width ensures easy integration into tight spaces without compromising performance.
With a maximum speed of 9300 rpm, it offers both durability and smooth operation.
K50X55X17 Bearing operates reliably in temperatures ranging from -30° to 110°C, adapting to various working conditions.
Its steel construction provides long-lasting performance, reducing the need for frequent replacements.
Key Fields for K50X55X17 Bearing
K50X55X17 Bearing is commonly used in industrial gearboxes, where its compact design and high load capacity make it ideal for tight spaces. The steel construction ensures durability even in demanding conditions.
In automotive applications, K50X55X17 Bearing fits well in transmission systems, providing smooth rotation under radial loads. Its metric sizing makes it a versatile choice for various vehicle models.
For automation equipment, K50X55X17 Bearing supports precise movements in robotic arms and conveyor systems. The high-speed capability allows for efficient operation in fast-paced production lines.
In household appliances like washing machines, K50X55X17 Bearing offers reliable performance with minimal maintenance. Its lightweight design helps reduce overall energy consumption.
