Needle Roller And Cage Assemblies K38X43X17
Needle Roller And Cage Assemblies K38X43X17

Needle Roller And Cage Assemblies K38X43X17

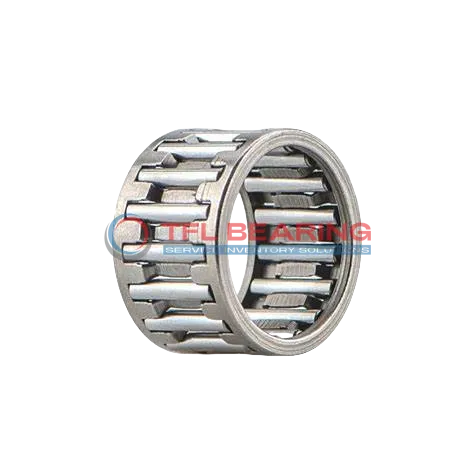

The K38X43X17 is a needle roller and cage assembly with a 38mm bore and 43mm outer diameter, designed for compact spaces. Its single-row construction and steel cage provide reliable performance under radial loads up to 4612 lbf.
This assembly spins smoothly at speeds up to 12100 RPM, making it suitable for high-speed applications. The steel needles ensure durability, while the lightweight design (just 29g) reduces overall system weight.
It operates efficiently in temperatures from -30°C to 110°C and is RoHS compliant for safe use. Interchangeable with INA bearings, it’s a practical choice for replacements.
Ideal for use in gearboxes, transmissions, or small machinery where space and speed are key factors. Its robust yet lightweight build offers a balance of strength and efficiency.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number K38X43X17
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 38 mm
  • Outer Dia 43 mm
  • Width 17 mm
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Construction Single Row
  • Series K Series
  • Cage Material Steel
  • Needle Material Steel
  • Dynamic Radial Load 4612 lbf
  • Static Radial Load 8662 lbf
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • Max Speed 12100 rpm
  • Weight 29 g

Features

How Does K38X43X17 Bearing Achieve High-Speed Performance?
K38X43X17 Bearing features a steel cage and needles, ensuring durability and smooth operation at high speeds.
Its dynamic radial load capacity of 4612 lbf makes it suitable for demanding applications.
The compact design with a width of 17 mm allows for easy integration into tight spaces.
With a maximum speed of 12,100 rpm, it delivers reliable performance in high-speed environments.
What Makes K38X43X17 Bearing Suitable for Heavy Loads?
K38X43X17 Bearing is built with robust steel needles, providing excellent resistance to heavy radial loads.
Its static radial load capacity reaches 8662 lbf, ensuring stability under pressure.
The single-row construction enhances load distribution, reducing wear over time.
Operating within a temperature range of -30° to 110°C, it performs reliably in various conditions.
Engineered for Precision: K38X43X17 Bearing
K38X43X17 Bearing’s precise needle roller design ensures minimal friction and smooth rotation.
The steel cage maintains proper needle alignment, extending the bearing’s service life.
Its metric dimensions (38x43x17 mm) make it compatible with a wide range of machinery.
Compliant with RoHS standards, it meets environmental and safety requirements.

Application

Industrial Uses of K38X43X17 Bearing
K38X43X17 Bearing is commonly used in industrial gearboxes, where its compact design and high load capacity make it ideal for tight spaces. The steel construction ensures durability even in demanding environments.
In automotive applications, K38X43X17 Bearing fits well in transmission systems, providing smooth rotation under high radial loads. Its metric sizing makes it a versatile choice for various vehicle models.
For automation equipment, K38X43X17 Bearing offers reliable performance in robotic arms and conveyor systems. The high-speed capability ensures efficient operation in continuous-use scenarios.
Where Is K38X43X17 Bearing Used?
You’ll often find K38X43X17 Bearing in heavy machinery like construction equipment, where its robust design handles intense radial loads. The steel cage adds extra stability during operation.
In consumer electronics, K38X43X17 Bearing works well in printers and small appliances, thanks to its lightweight and precision. The high rpm rating makes it suitable for fast-moving parts.
Designed for Versatility: K38X43X17 Bearing
K38X43X17 Bearing is a great fit for agricultural machinery, where its resistance to wear and tear keeps equipment running longer. The single-row design simplifies installation and maintenance.
Medical devices like lab equipment benefit from K38X43X17 Bearing’s consistent performance. Its steel needles ensure smooth motion, crucial for precision instruments.
Automotive vs Aerospace: Applications of K38X43X17 Bearing
In cars, K38X43X17 Bearing is often used in steering systems, where its high load capacity improves handling. The compact size fits neatly into tight engine compartments.
For aerospace applications, K38X43X17 Bearing’s lightweight design is advantageous in auxiliary systems. Its temperature tolerance ensures reliability under varying conditions.
