Needle Roller And Cage Assemblies K32X37X17
Needle Roller And Cage Assemblies K32X37X17

Needle Roller And Cage Assemblies K32X37X17

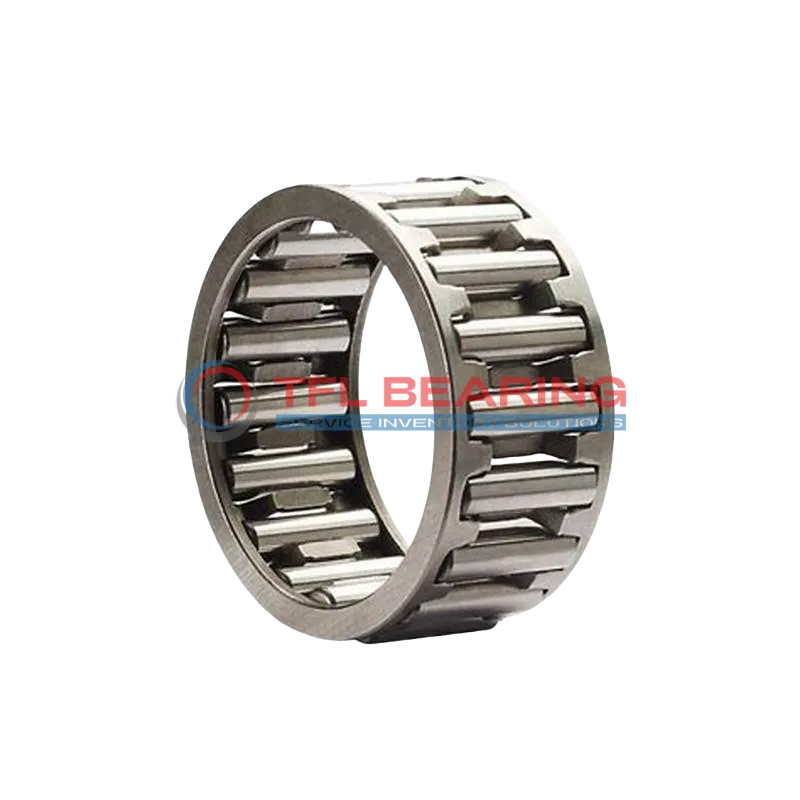

The K32X37X17 is a compact needle roller and cage assembly with a 32mm bore and 37mm outer diameter, crafted from sturdy steel. It handles radial loads up to 4478 lbf and spins efficiently at speeds up to 14200 RPM.
Its single-row design with a steel cage ensures smooth operation and durability. The assembly performs reliably in temperatures ranging from -30°C to 110°C.
This model is interchangeable with INA bearings, offering a practical replacement option. Perfect for applications like transmissions or small machinery where space is limited but performance is key.
Weighing just 19g, it’s lightweight yet robust. Compliant with RoHS standards for safe and eco-friendly use.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number K32X37X17
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 32 mm
  • Outer Dia 37 mm
  • Width 17 mm
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Construction Single Row
  • Series K Series
  • Cage Material Steel
  • Needle Material Steel
  • Dynamic Radial Load 4478 lbf
  • Static Radial Load 7988 lbf
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • Max Speed 14200 rpm
  • Weight 19 g

Features

How Does K32X37X17 Bearing Handle High-Speed Applications?
K32X37X17 Bearing is built with steel needles and cage, offering robust performance under high-speed conditions.
Its dynamic radial load capacity of 4478 lbf ensures reliable operation in demanding environments.
The compact design of K32X37X17 Bearing allows for efficient space utilisation without compromising durability.
With a maximum speed of 14,200 rpm, it delivers smooth and consistent performance.
K32X37X17 Bearing operates effectively within a temperature range of -30° to 110 °C, making it versatile for various applications.
Its lightweight construction at just 19 grams enhances ease of installation and handling.

Application

Key Fields for K32X37X17 Bearing
K32X37X17 Bearing is commonly used in industrial gearboxes, where its compact design and high load capacity make it ideal for tight spaces. The steel construction ensures durability even in demanding conditions.
In automotive applications, K32X37X17 Bearing fits well in transmission systems, providing smooth rotation under high radial loads. Its metric sizing makes it a versatile choice for various vehicle models.
For automation equipment, K32X37X17 Bearing supports precise movements in robotic arms and conveyor systems. The high-speed capability allows for efficient operation in fast-paced production lines.
Medical devices like surgical tools benefit from K32X37X17 Bearing’s reliability and low maintenance needs. The steel needles and cage ensure consistent performance in critical applications.
