Needle Roller And Cage Assemblies K28X34X17
Needle Roller And Cage Assemblies K28X34X17

Needle Roller And Cage Assemblies K28X34X17

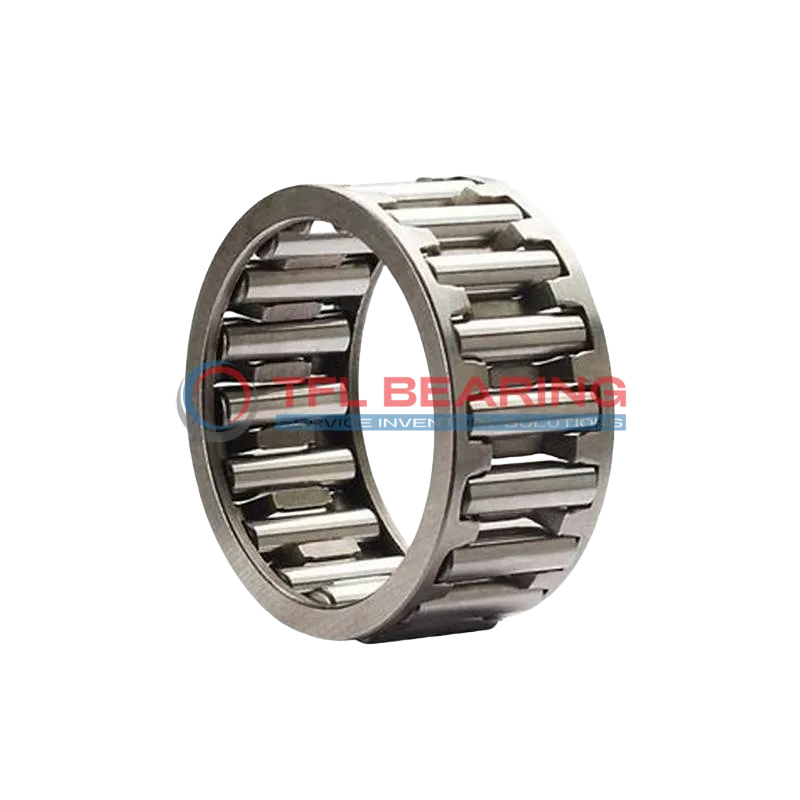

The K28X34X17 is a needle roller and cage assembly with a 28mm bore and 34mm outer diameter, crafted from sturdy steel. It handles radial loads up to 4905 lbf and spins smoothly at speeds up to 15800 RPM.
Its single-row design with a steel cage ensures durability and efficient performance. The compact width of 17mm makes it suitable for tight spaces.
This assembly is interchangeable with INA bearings, offering a reliable replacement option. Ideal for applications like gear pumps or automotive transmissions where high-speed rotation is needed.
Weighing just 24g, it’s lightweight yet robust. Compliant with RoHS standards, it operates well in temperatures from -30°C to 110°C.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number K28X34X17
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 28 mm
  • Outer Dia 34 mm
  • Width 17 mm
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Construction Single Row
  • Series K Series
  • Cage Material Steel
  • Needle Material Steel
  • Dynamic Radial Load 4905 lbf
  • Static Radial Load 7538 lbf
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • Max Speed 15800 rpm
  • Weight 24 g

Features

How Does K28X34X17 Bearing Achieve High-Speed Performance?
K28X34X17 Bearing features a steel cage and needle rollers, designed for smooth operation at high speeds.
With a maximum speed of 15,800 rpm, it delivers reliable performance in demanding applications.
The steel construction ensures durability, while the single-row design reduces friction.
Its dynamic radial load capacity of 4,905 lbf makes it suitable for heavy-duty use.

Application

Key Fields for K28X34X17 Bearing
K28X34X17 Bearing is commonly used in industrial gearboxes, where its compact design and high load capacity make it ideal for tight spaces. The steel construction ensures durability even in demanding conditions.
In automotive applications, K28X34X17 Bearing fits well in transmission systems, providing smooth rotation under radial loads. Its metric sizing makes it a versatile choice for various vehicle models.
For automation equipment, K28X34X17 Bearing supports precise movements in robotic arms and conveyor systems. The high-speed capability allows for efficient operation in fast-paced environments.
Medical devices like surgical tools benefit from K28X34X17 Bearing’s reliable performance and low maintenance needs. The steel needles and cage offer long-lasting service in critical applications.
