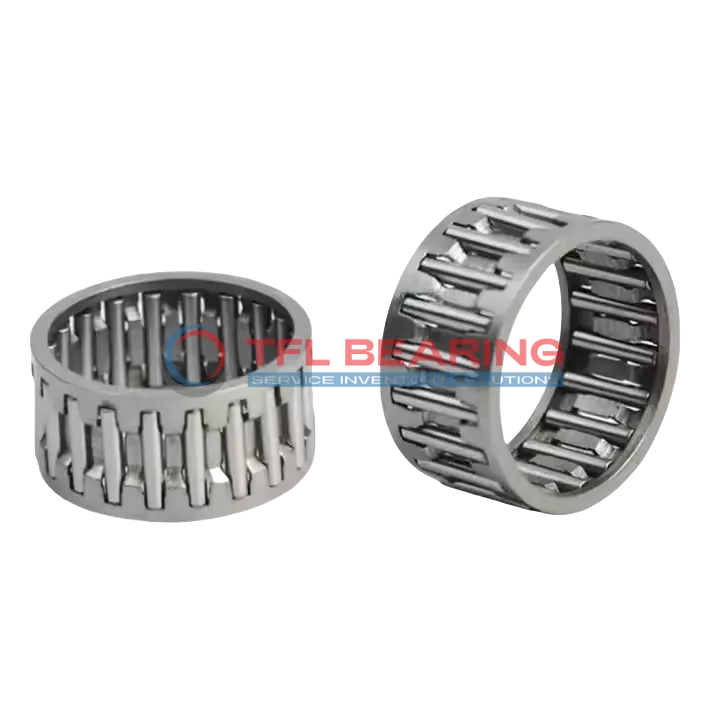

Needle Roller And Cage Assemblies K265X280X50
Needle Roller And Cage Assemblies K265X280X50

Needle Roller And Cage Assemblies K265X280X50

The K265X280X50 is a needle roller and cage assembly with a 265mm bore and 280mm outer diameter, built from sturdy steel. It handles radial loads up to 57375 lbf and operates smoothly at speeds up to 1800 RPM.
Its single-row design with a steel cage ensures reliable performance under heavy loads. The assembly works well in temperatures ranging from -30°C to 110°C.
This model is interchangeable with INA bearings, making it a practical choice for replacements. Ideal for industrial machinery or heavy-duty equipment where high radial loads are common.
Weighing 1810g, it’s robust yet manageable for its size. Compliant with RoHS standards for safe and sustainable use.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number K265X280X50
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 265 mm
  • Outer Dia 280 mm
  • Width 50 mm
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Construction Single Row
  • Series K Series
  • Cage Material Steel
  • Needle Material Steel
  • Dynamic Radial Load 57375 lbf
  • Static Radial Load 193500 lbf
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • Max Speed 1800 rpm
  • Weight 1810 g

Features

Why Choose K265X280X50 Bearing for Precision Tasks?
K265X280X50 Bearing features a steel cage and needles, ensuring precise alignment and smooth operation.
Its dynamic radial load capacity of 57,375 lbf makes it suitable for high-demand applications.
The single-row construction provides stability, while the steel materials enhance durability.
With a maximum speed of 1,800 rpm, it balances performance and reliability.
K265X280X50 Bearing operates efficiently within a temperature range of -30° to 110°C.
Its compliant RoHS status ensures it meets environmental standards.

Application

Industrial Uses of K265X280X50 Bearing
K265X280X50 Bearing is commonly used in heavy machinery, such as construction equipment and hydraulic pumps, where its high radial load capacity ensures reliable performance. The steel cage and needle construction provide durability in demanding environments.
Where Is K265X280X50 Bearing Used?
In automotive applications, K265X280X50 Bearing fits well in gearboxes and drivetrains, handling high loads with ease. Its metric sizing makes it a versatile choice for various vehicle designs.
Built for Heavy-Duty Use: K265X280X50 Bearing
This bearing excels in industrial settings like conveyor systems, where its robust design handles continuous operation. The steel needles and cage offer long-lasting wear resistance.
Automotive vs Aerospace: Applications of K265X280X50 Bearing
In automotive systems, K265X280X50 Bearing supports high-load components like axles and transmissions. While less common in aerospace, it’s valued in ground support equipment for its strength.
Practical Applications of K265X280X50 Bearing
K265X280X50 Bearing is ideal for agricultural machinery, such as harvesters, where its ability to handle heavy radial loads is essential. The steel construction ensures reliability in dusty or wet conditions.
