Needle Roller And Cage Assemblies K22X28X17
Needle Roller And Cage Assemblies K22X28X17

Needle Roller And Cage Assemblies K22X28X17

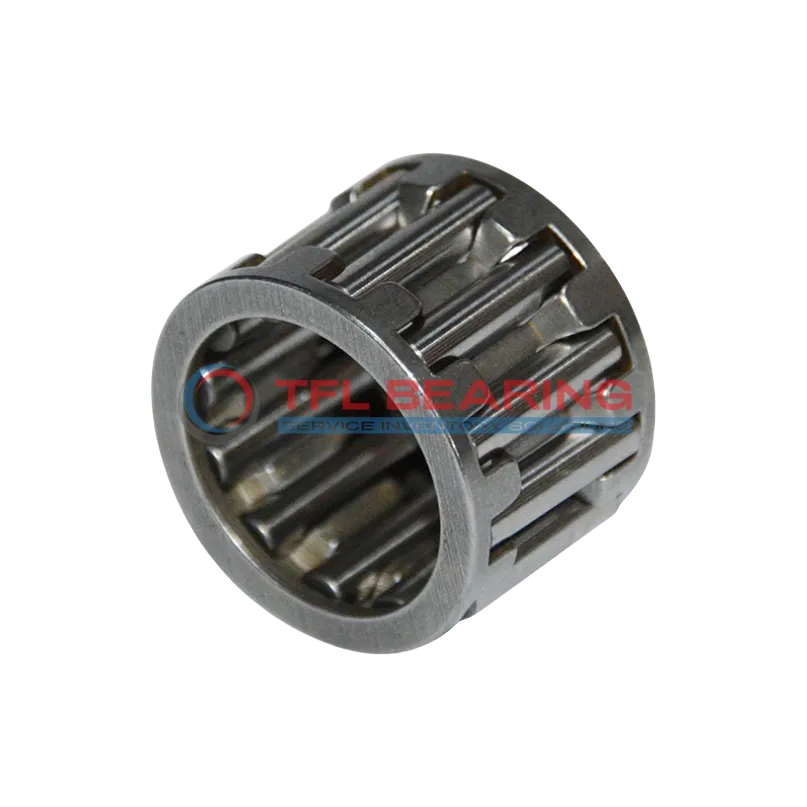

The K22X28X17 is a needle roller and cage assembly with a 22mm bore and 28mm outer diameter, crafted from sturdy steel for reliable performance. It handles radial loads up to 4365 lbf and spins smoothly at speeds up to 19,600 RPM.
Its single-row design with a steel cage ensures durability and easy handling, even in tight spaces. The compact width of 17mm makes it suitable for applications where space is limited.
This assembly is interchangeable with INA bearings, offering a practical replacement option. Ideal for use in gearboxes, transmissions, or small machinery requiring high-speed rotation.
Weighing just 18g, it’s lightweight yet robust. It operates efficiently in temperatures from -30°C to 110°C and meets RoHS standards for safety.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number K22X28X17
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 22 mm
  • Outer Dia 28 mm
  • Width 17 mm
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Construction Single Row
  • Series K Series
  • Cage Material Steel
  • Needle Material Steel
  • Dynamic Radial Load 4365 lbf
  • Static Radial Load 6075 lbf
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • Max Speed 19600 rpm
  • Weight 18 g

Features

How Does K22X28X17 Bearing Achieve High-Speed Performance?
K22X28X17 Bearing features a steel cage and needles, ensuring durability and smooth operation at high speeds.
With a maximum speed of 19,600 rpm, it is suitable for demanding applications requiring rapid rotation.
The dynamic radial load capacity of 4,365 lbf allows K22X28X17 Bearing to handle significant forces reliably.
Its compact design, with a width of just 17 mm, makes it ideal for space-constrained installations.
K22X28X17 Bearing operates efficiently within a temperature range of -30° to 110 °C, adapting to various environments.
The steel construction provides resistance to wear, extending the bearing’s service life.

Application

Common Applications of K22X28X17 Bearing
K22X28X17 Bearing is widely used in industrial gearboxes, where its compact design and high load capacity make it ideal for space-constrained applications. The steel construction ensures durability even in demanding environments.
In automotive transmissions, K22X28X17 Bearing provides smooth operation under high radial loads, enhancing performance and longevity. Its metric sizing makes it a versatile choice for various vehicle models.
For automation systems, K22X28X17 Bearing excels in robotic arms and conveyor mechanisms, thanks to its high-speed capability and reliable steel cage. The lightweight design also reduces overall system weight.
Medical devices like surgical tools benefit from K22X28X17 Bearing’s precision and low friction, ensuring accurate movements. The temperature range allows it to perform consistently in sterilisation processes.
In household appliances such as washing machines, K22X28X17 Bearing offers quiet and efficient operation. Its robust design handles frequent use without compromising performance.
