Needle Roller And Cage Assemblies K22X26X17
Needle Roller And Cage Assemblies K22X26X17

Needle Roller And Cage Assemblies K22X26X17

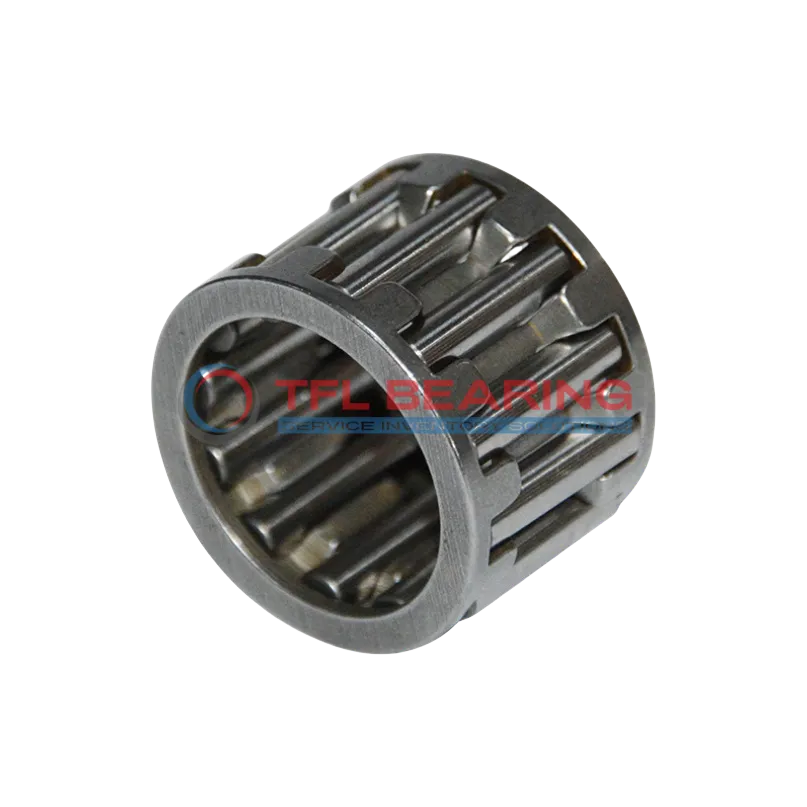

The K22X26X17 is a compact needle roller and cage assembly with a 22mm bore and 26mm outer diameter, crafted from sturdy steel. It handles radial loads up to 3082 lbf and spins smoothly at speeds up to 20400 RPM.
Its single-row design with a steel cage ensures durability and efficient load distribution. The assembly operates well in temperatures ranging from -30°C to 110°C.
This model is interchangeable with INA bearings, making it a practical choice for replacements. Ideal for applications like gearboxes or compact machinery where space is limited.
Weighing just 12g, it’s lightweight yet robust for its size. Compliant with RoHS standards for safe use.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number K22X26X17
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 22 mm
  • Outer Dia 26 mm
  • Width 17 mm
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Construction Single Row
  • Series K Series
  • Cage Material Steel
  • Needle Material Steel
  • Dynamic Radial Load 3082 lbf
  • Static Radial Load 5108 lbf
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • Max Speed 20400 rpm
  • Weight 12 g

Features

Why Choose K22X26X17 Bearing for Precision Tasks?
K22X26X17 Bearing features a steel cage and needles, ensuring precise alignment and smooth operation.
Its dynamic radial load capacity of 3082 lbf makes it suitable for high-performance applications.
The compact design of K22X26X17 Bearing allows it to fit into tight spaces without sacrificing durability.
With a maximum speed of 20,400 rpm, it delivers reliable performance in demanding conditions.
K22X26X17 Bearing operates efficiently within a temperature range of -30° to 110°C.
Its lightweight construction at just 12 grams ensures easy handling and installation.

Application

Key Fields for K22X26X17 Bearing
K22X26X17 Bearing is commonly used in industrial gearboxes, where its compact design and high load capacity make it ideal for tight spaces. The steel construction ensures durability even in demanding conditions.
In automotive applications, K22X26X17 Bearing fits well in transmission systems, providing smooth rotation under high radial loads. Its metric dimensions make it a versatile choice for various vehicle models.
For automation equipment, K22X26X17 Bearing offers reliable performance in robotic arms and conveyor systems. The high-speed capability allows for efficient operation in fast-paced production lines.
Medical devices like surgical tools benefit from K22X26X17 Bearing’s precision and low weight. The steel needles and cage provide consistent performance in critical applications.
In household appliances, K22X26X17 Bearing can be found in small motors and power tools. Its compact size and durability make it a practical solution for everyday use.
