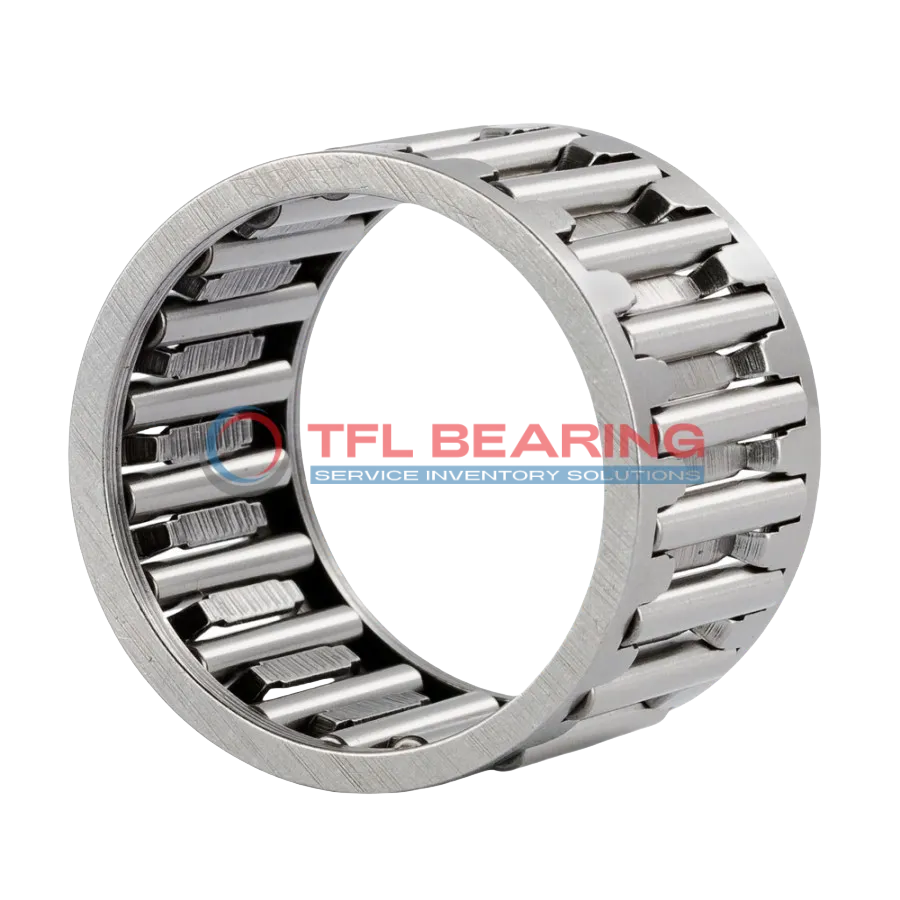

Needle Roller And Cage Assemblies K16X22X12
Needle Roller And Cage Assemblies K16X22X12

Needle Roller And Cage Assemblies K16X22X12

The K16X22X12 is a needle roller and cage assembly with a 16mm bore and 22mm outer diameter, crafted from sturdy steel. It handles radial loads up to 2588 lbf and spins smoothly at speeds up to 22900 RPM.
Its single-row design with a steel cage ensures durability and efficient performance. The compact width of 12mm makes it suitable for tight spaces.
This assembly is interchangeable with INA bearings, offering a reliable replacement option. Ideal for applications like gearboxes, pumps, or small machinery where high-speed rotation is needed.
Weighing just 10g, it’s lightweight yet robust. Compliant with RoHS standards, it operates well in temperatures from -30°C to 110°C.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number K16X22X12
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 16 mm
  • Outer Dia 22 mm
  • Width 12 mm
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Construction Single Row
  • Series K Series
  • Cage Material Steel
  • Needle Material Steel
  • Dynamic Radial Load 2588 lbf
  • Static Radial Load 2812 lbf
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • Max Speed 22900 rpm
  • Weight 10 g

Features

How Does K16X22X12 Bearing Achieve High-Speed Performance?
K16X22X12 Bearing features a steel cage and needles, ensuring stability even at high speeds.
Its dynamic radial load capacity of 2588 lbf makes it suitable for demanding applications.
The compact design with a width of 12 mm allows for easy integration into tight spaces.
With a maximum speed of 22,900 rpm, it delivers reliable performance in high-speed environments.
K16X22X12 Bearing operates efficiently within a temperature range of -30° to 110°C.
Its steel construction provides durability and resistance to wear over time.

Application

Key Fields for K16X22X12 Bearing
K16X22X12 Bearing is commonly used in industrial gearboxes, where its compact design and high load capacity make it ideal for tight spaces. The steel construction ensures durability even in demanding conditions.
In automotive applications, K16X22X12 Bearing fits well in transmission systems, providing smooth rotation under high radial loads. Its metric sizing makes it a versatile choice for various vehicle models.
For automation equipment, K16X22X12 Bearing supports precise movements in robotic arms and conveyor systems. The high-speed capability allows it to handle rapid operations without compromising performance.
In household appliances like printers, K16X22X12 Bearing offers reliable performance with minimal maintenance. Its lightweight design helps keep the overall device compact and efficient.
