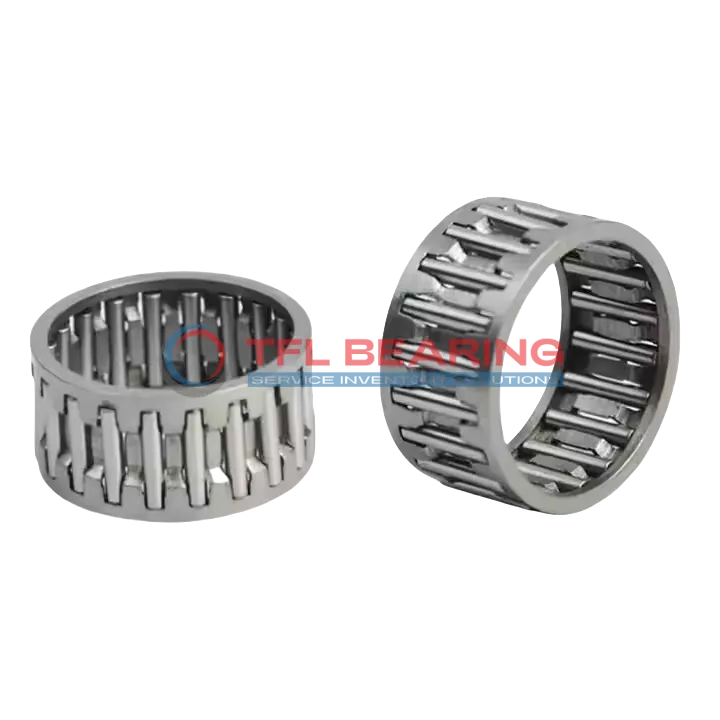

Needle Roller And Cage Assemblies K160X170X46
Needle Roller And Cage Assemblies K160X170X46

Needle Roller And Cage Assemblies K160X170X46

The K160X170X46 is a needle roller and cage assembly with a 160mm bore and 170mm outer diameter, built from sturdy steel. It handles radial loads up to 34200 lbf and operates smoothly at speeds up to 3000 RPM.
Its single-row design with a steel cage ensures reliable performance under heavy loads. The assembly works well in temperatures ranging from -30°C to 110°C.
This model is interchangeable with INA bearings, making it a practical choice for replacements. Ideal for applications like gearboxes or industrial machinery where high radial loads are common.
Weighing 550g, it offers a balance of strength and compactness. Compliant with RoHS standards for safe use.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number K160X170X46
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 160 mm
  • Outer Dia 170 mm
  • Width 46 mm
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Construction Single Row
  • Series K Series
  • Cage Material Steel
  • Needle Material Steel
  • Dynamic Radial Load 34200 lbf
  • Static Radial Load 114750 lbf
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • Max Speed 3000 rpm
  • Weight 550 g

Features

How Does K160X170X46 Bearing Handle Heavy Loads?
K160X170X46 Bearing features a robust steel cage and needle rollers, designed to withstand high radial loads.
Its dynamic radial load capacity reaches 34,200 lbf, making it suitable for heavy-duty applications.
The single-row construction ensures stability and efficient load distribution.
With a maximum speed of 3,000 rpm, it offers reliable performance in demanding conditions.
K160X170X46 Bearing operates smoothly within a temperature range of -30° to 110°C.
Its steel components provide durability and resistance to wear, extending service life.

Application

Key Fields for K160X170X46 Bearing
K160X170X46 Bearing is widely used in industrial gearboxes, where its high radial load capacity handles heavy rotational forces efficiently. The steel cage and needle rollers ensure durability in demanding environments.
In automotive applications, K160X170X46 Bearing fits perfectly in transmission systems, providing smooth operation under high-speed conditions. Its metric dimensions make it a reliable choice for various vehicle models.
For automation equipment, K160X170X46 Bearing supports robotic arms and conveyor systems with precise movement. The single-row design offers stability and reduces friction during continuous operation.
In medical machinery, K160X170X46 Bearing’s steel construction ensures reliability in devices like MRI scanners. The temperature range allows consistent performance in clinical settings.
Household appliances like washing machines benefit from K160X170X46 Bearing’s quiet operation and long lifespan. Its compact design fits well in space-constrained applications.
