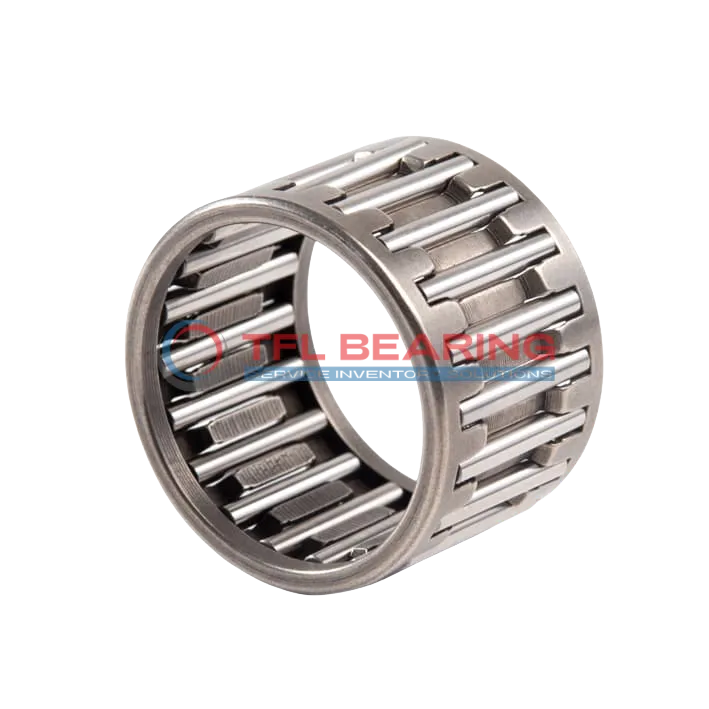

Needle Roller And Cage Assemblies K12X17X13-TV
Needle Roller And Cage Assemblies K12X17X13-TV

Needle Roller And Cage Assemblies K12X17X13-TV

The K12X17X13-TV is a compact needle roller and cage assembly with a 12mm bore and 17mm outer diameter, made from sturdy steel and PA66 cage material. It handles radial loads up to 2160 lbf and spins smoothly at speeds up to 26500 RPM.
Its single-row design ensures reliable performance, while the lightweight construction (just 4.9g) makes it easy to handle. The assembly works well in temperatures from -30°C to 110°C.
This model is interchangeable with INA bearings, offering a practical replacement option. Ideal for applications like small gearboxes or automotive components where space is limited.
Compliant with RoHS standards, it’s a safe and durable choice for various industrial uses.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number K12X17X13-TV
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 12 mm
  • Outer Dia 17 mm
  • Width 13 mm
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Construction Single Row
  • Series K Series
  • Cage Material PA66
  • Needle Material Steel
  • Dynamic Radial Load 2160 lbf
  • Static Radial Load 2340 lbf
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • Max Speed 26500 rpm
  • Weight 4.9 g

Features

How Does K12X17X13-TV Bearing Achieve High-Speed Performance?
K12X17X13-TV Bearing is built with steel needles and a PA66 cage, ensuring smooth operation at high speeds.
Its dynamic radial load capacity of 2160 lbf makes it suitable for demanding applications.
The lightweight design, at just 4.9 g, reduces inertia and enhances efficiency.
With a maximum speed of 26,500 rpm, it delivers reliable performance in high-speed environments.

Application

Where Is K12X17X13-TV Bearing Used?
K12X17X13-TV Bearing is commonly found in compact machinery like automotive transmissions, where its needle roller design handles high radial loads efficiently. The small size and lightweight make it ideal for space-constrained applications.
In industrial settings, K12X17X13-TV Bearing works well in conveyor systems and printing machines, thanks to its durable steel needles and PA66 cage. Its high-speed capability ensures smooth operation even under continuous use.
For consumer electronics, K12X17X13-TV Bearing fits neatly into devices like printers and small motors, where precision and reliability are key. The metric dimensions allow easy integration into various international product designs.
Medical equipment also benefits from K12X17X13-TV Bearing’s consistent performance in devices like lab instruments. The temperature range and RoHS compliance make it suitable for sensitive environments.
