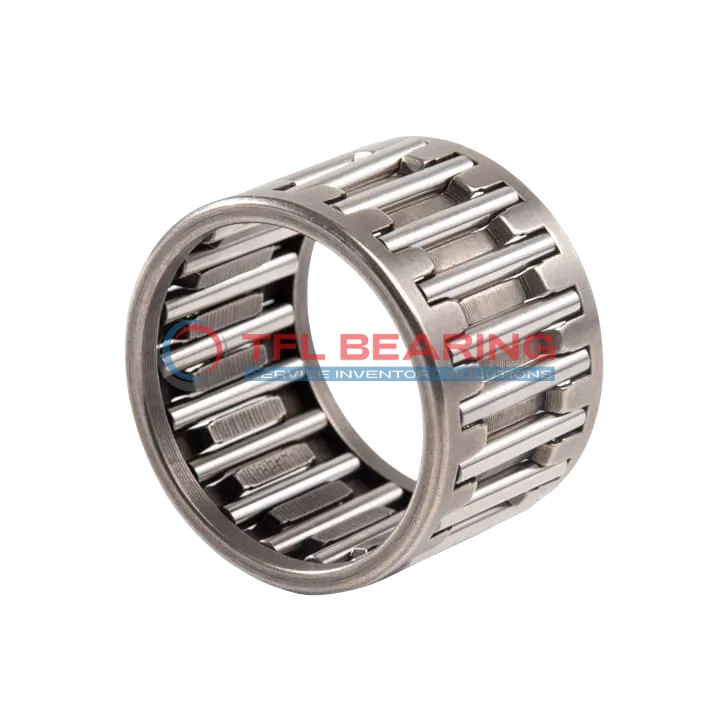

Needle Roller And Cage Assemblies K12X15X10-TV
Needle Roller And Cage Assemblies K12X15X10-TV

Needle Roller And Cage Assemblies K12X15X10-TV

The K12X15X10-TV is a compact needle roller and cage assembly, measuring 12mm in bore diameter and 15mm in outer diameter, with a width of just 10mm. Made from durable steel needles and a PA66 cage, it offers reliable performance.
It handles dynamic radial loads up to 1102 lbf and static loads up to 1372 lbf, spinning smoothly at speeds up to 27000 RPM. The single-row design ensures efficient load distribution.
The lightweight construction, at only 2.9g, makes it easy to handle and install. It operates well in temperatures ranging from -30°C to 110°C.
Ideal for applications like small gearboxes or compact machinery where space is limited. Compliant with RoHS standards, it’s a practical choice for replacements, especially as it’s interchangeable with INA models.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number K12X15X10-TV
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 12 mm
  • Outer Dia 15 mm
  • Width 10 mm
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Construction Single Row
  • Series K Series
  • Cage Material PA66
  • Needle Material Steel
  • Dynamic Radial Load 1102 lbf
  • Static Radial Load 1372 lbf
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • Max Speed 27000 rpm
  • Weight 2.9 g

Features

How Does K12X15X10-TV Bearing Achieve High-Speed Performance?
K12X15X10-TV Bearing features a lightweight PA66 cage, reducing inertia and enabling smooth operation at high speeds.
Its steel needle rollers provide strong radial load capacity, supporting up to 1102 lbf dynamic load.
The compact design of K12X15X10-TV Bearing ensures reliable performance in tight spaces.
With a maximum speed of 27,000 rpm, it is suitable for high-speed applications.
K12X15X10-TV Bearing operates efficiently within a temperature range of -30° to 110 °C.
Its durable construction minimises wear, extending service life even under demanding conditions.

Application

Common Applications of K12X15X10-TV Bearing
K12X15X10-TV Bearing is widely used in industrial gearboxes, where its compact design and high load capacity make it ideal for space-constrained applications. The steel needles and PA66 cage ensure smooth operation even at high speeds.
In automotive transmissions, K12X15X10-TV Bearing handles radial loads efficiently, contributing to smoother gear shifts and reduced wear. Its metric dimensions make it a versatile choice for various vehicle models.
For small electric motors, K12X15X10-TV Bearing’s lightweight construction and high-speed capability are particularly beneficial. The temperature range also allows it to perform reliably in diverse operating conditions.
Where Is K12X15X10-TV Bearing Used?
You’ll often find K12X15X10-TV Bearing in conveyor systems, where its durability and low friction help maintain consistent performance. The needle roller design is especially suited for handling heavy radial loads.
In robotics, K12X15X10-TV Bearing provides precise motion control in joints and actuators. Its high-speed rating makes it a reliable component in automated systems.
Built for Heavy-Duty Use: K12X15X10-TV Bearing
K12X15X10-TV Bearing excels in construction equipment, where its robust construction withstands harsh conditions. The steel needles and PA66 cage offer a good balance of strength and flexibility.
In agricultural machinery, K12X15X10-TV Bearing’s ability to handle high radial loads ensures long service life. Its compact size also makes it easy to integrate into various designs.
Automotive vs Industrial: Applications of K12X15X10-TV Bearing
In automotive applications, K12X15X10-TV Bearing is commonly used in steering systems, where its precision and durability are key. The high-speed capability ensures smooth operation even under demanding conditions.
For industrial pumps, K12X15X10-TV Bearing’s resistance to wear and tear makes it a dependable choice. The metric sizing ensures compatibility with a wide range of equipment.
