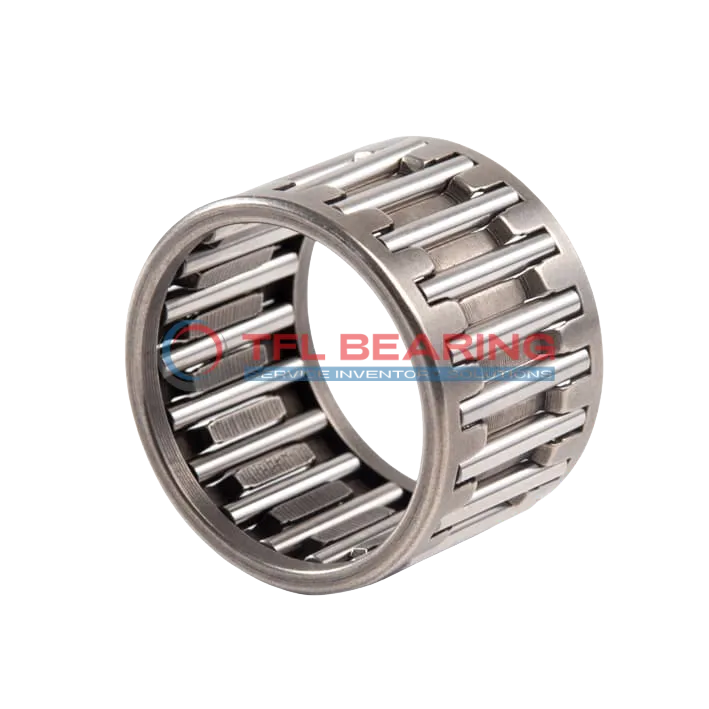

Needle Roller And Cage Assemblies K10X14X10-TV
Needle Roller And Cage Assemblies K10X14X10-TV

Needle Roller And Cage Assemblies K10X14X10-TV

The K10X14X10-TV is a compact needle roller and cage assembly with a 10mm bore and 14mm outer diameter, made from sturdy steel needles and a PA66 cage. It handles radial loads up to 1305 lbf and spins smoothly at speeds up to 29000 RPM.
Its single-row design saves space while maintaining strength, ideal for tight fits in machinery. The PA66 cage reduces friction and wear, ensuring reliable performance.
This assembly works well in temperatures from -30°C to 110°C and is interchangeable with INA bearings. Perfect for applications like gearboxes or small engines where space is limited.
Weighing just 2.5g, it’s lightweight yet durable. Compliant with RoHS standards for safe use.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number K10X14X10-TV
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 10 mm
  • Outer Dia 14 mm
  • Width 10 mm
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Construction Single Row
  • Series K Series
  • Cage Material PA66
  • Needle Material Steel
  • Dynamic Radial Load 1305 lbf
  • Static Radial Load 1350 lbf
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • Max Speed 29000 rpm
  • Weight 2.5 g

Features

How Does K10X14X10-TV Bearing Achieve High-Speed Performance?
K10X14X10-TV Bearing features a lightweight PA66 cage, ensuring smooth operation at speeds up to 29,000 rpm.
Its steel needle rollers provide strong radial load capacity, handling up to 1305 lbf dynamic load.
The compact design with 10 mm bore and 14 mm outer diameter makes it suitable for space-constrained applications.
With a temperature range of -30° to 110°C, it performs reliably in various environments.
Why Choose K10X14X10-TV Bearing for Precision Tasks?
K10X14X10-TV Bearing’s single-row construction ensures precise alignment, ideal for high-accuracy applications.
The steel needle rollers and PA66 cage reduce friction, enhancing efficiency and longevity.
Its static radial load capacity of 1350 lbf guarantees stability under demanding conditions.
Weighing just 2.5 g, it offers a perfect balance of strength and lightweight design.
Engineered for Reliability: K10X14X10-TV Bearing
K10X14X10-TV Bearing’s robust steel needles and PA66 cage ensure durability in high-speed environments.
The metric design with 10 mm width fits seamlessly into compact assemblies.
It meets RoHS compliance, making it an environmentally friendly choice.
With a broad temperature range, it adapts to both industrial and automotive applications.
Performance Features of K10X14X10-TV Bearing
K10X14X10-TV Bearing delivers consistent performance with its dynamic radial load capacity of 1305 lbf.
The PA66 cage minimises wear, extending the bearing’s service life.
Its 14 mm outer diameter and 10 mm width provide a space-saving solution.
Operating at up to 29,000 rpm, it excels in high-speed machinery.

Application

Common Applications of K10X14X10-TV Bearing
K10X14X10-TV Bearing is widely used in compact industrial gearboxes, where its needle roller design efficiently handles high radial loads in tight spaces. The PA66 cage ensures smooth operation even at elevated speeds.
In automotive transmissions, K10X14X10-TV Bearing provides reliable support for rotating shafts, thanks to its steel needle rollers and durable construction. Its lightweight design also helps reduce overall vehicle weight.
For small electric motors, K10X14X10-TV Bearing’s high-speed capability makes it ideal for applications like power tools or drones. The metric sizing ensures easy integration with standard motor designs.
Where Is K10X14X10-TV Bearing Used?
You’ll often find K10X14X10-TV Bearing in conveyor systems, where its ability to handle heavy radial loads keeps operations running smoothly. The compact dimensions make it perfect for space-constrained setups.
In medical pumps, K10X14X10-TV Bearing offers precise motion control due to its low friction and high-speed tolerance. The steel needles provide long-lasting performance in critical applications.
Built for Heavy-Duty Use: K10X14X10-TV Bearing
K10X14X10-TV Bearing excels in agricultural machinery, enduring harsh conditions while maintaining performance. The PA66 cage resists wear, even with constant vibration and dirt exposure.
For robotics, K10X14X10-TV Bearing’s lightweight and high-speed capabilities make it a go-to choice for joint mechanisms. Its reliability ensures consistent movement in automated systems.
Automotive vs Industrial: Applications of K10X14X10-TV Bearing
In cars, K10X14X10-TV Bearing often supports clutch release mechanisms, where its compact size and load capacity are key. Industrial uses include printing presses, where precision and durability matter.
For home appliances like washing machines, K10X14X10-TV Bearing handles rotating drums with ease. The temperature range ensures performance even during long cycles.
