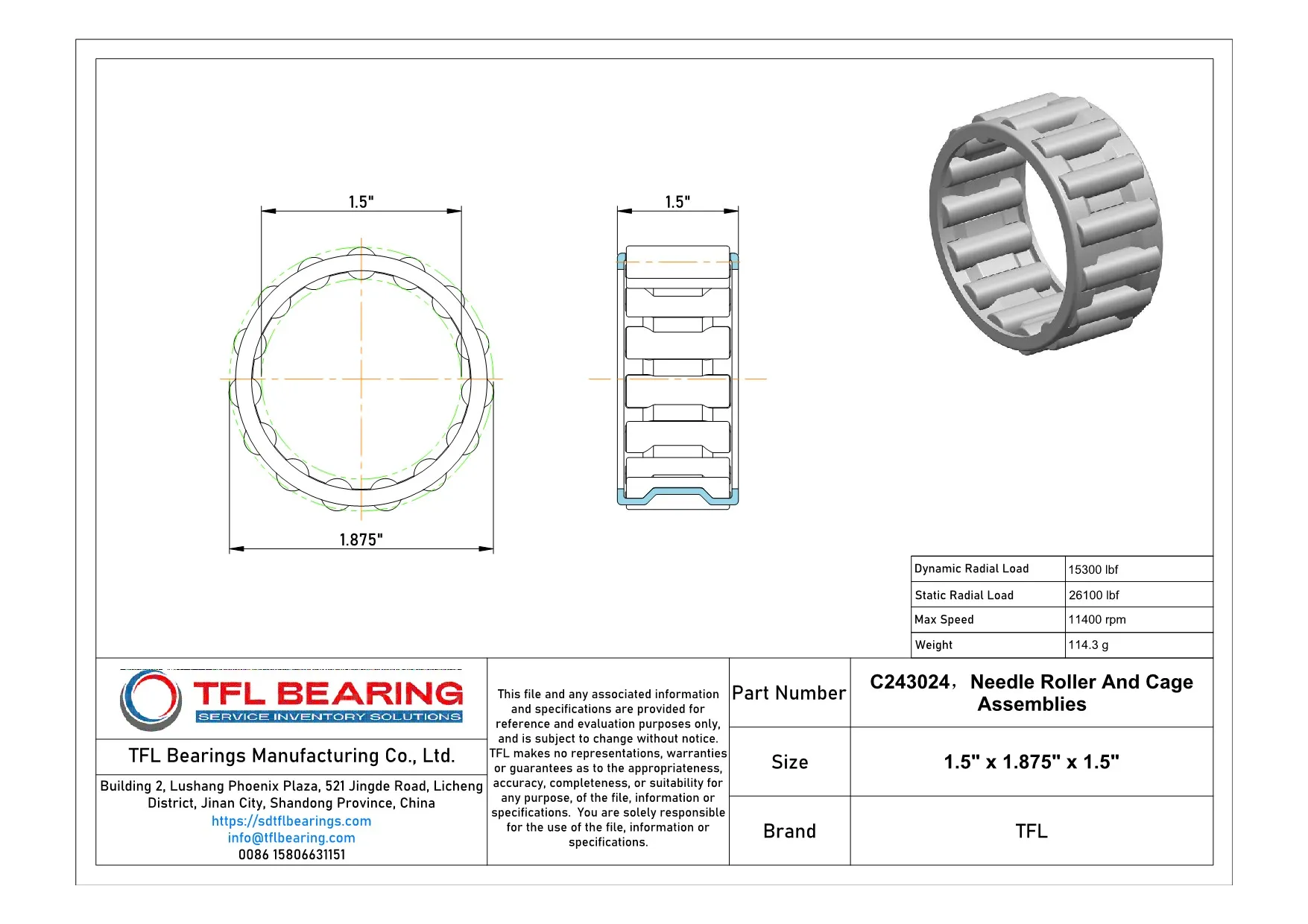

The C243024 is a needle roller and cage assembly with a 1.5-inch bore and 1.875-inch outer diameter, built from sturdy steel. It handles radial loads up to 15300 lbf and spins smoothly at speeds up to 11400 RPM.
Its single-row design with a steel cage ensures durability and consistent performance. The assembly operates well in temperatures ranging from -30°C to 110°C.
This model is interchangeable with INA bearings, making it a practical choice for replacements. Ideal for applications like transmissions or industrial equipment where high radial loads are present.
Weighing just 114.3 grams, it’s lightweight yet robust for its size. Compliant with RoHS standards for safe use.
"*" indicates required fields
How Does C243024 Bearing Handle Heavy Loads?
C243024 Bearing features a robust steel cage and needle rollers, designed to withstand dynamic radial loads up to 15,300 lbf.
Its single-row construction ensures stability and efficient load distribution in compact spaces.
The steel needle rollers reduce friction, enhancing performance even at high speeds of 11,400 rpm.
With a static radial load capacity of 26,100 lbf, it excels in demanding industrial applications.
C243024 Bearing operates reliably in temperatures ranging from -30° to 110°C, suitable for varied environments.
Its inch-sized dimensions (1.5″ bore, 1.875″ outer dia) make it compatible with standard industrial equipment.
Common Applications of C243024 Bearing
C243024 Bearing is widely used in industrial machinery, especially in compact spaces where high radial load capacity is needed, like conveyor systems and gearboxes. Its steel construction ensures durability in demanding environments.
In automotive applications, C243024 Bearing is often found in transmissions and steering systems, where its needle roller design provides smooth operation under heavy loads. The inch sizing makes it compatible with many American and British vehicle models.
For automation equipment, C243024 Bearing’s single-row design offers reliable performance in robotic arms and assembly lines. The high max speed of 11400 rpm makes it suitable for fast-moving components.
In consumer electronics, C243024 Bearing can be used in printers and power tools, where its compact size and efficiency are beneficial. The steel cage adds to its longevity in everyday use.
Medical devices like lab equipment also benefit from C243024 Bearing’s precision and reliability. Its temperature range allows it to perform consistently in various clinical environments.
