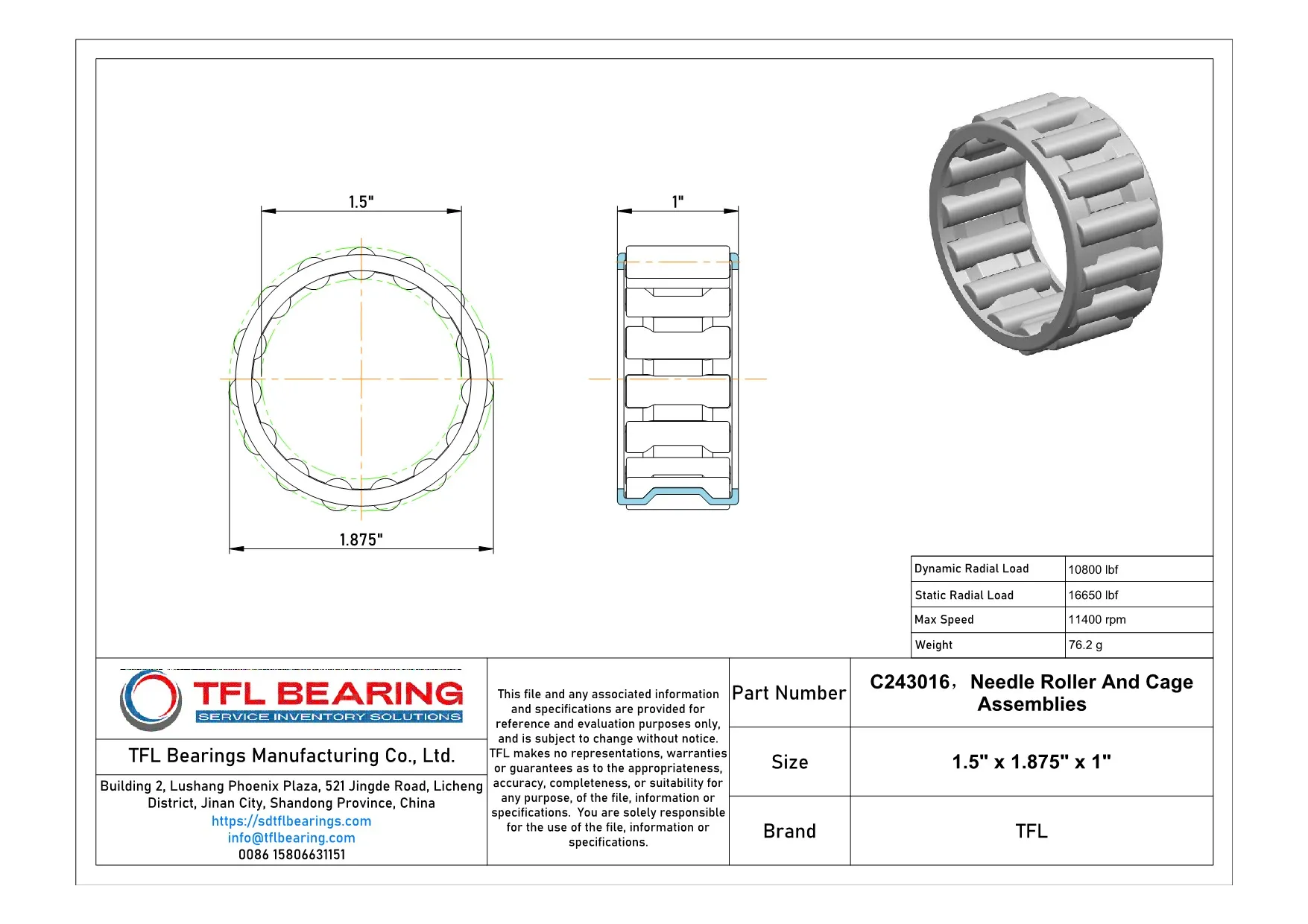

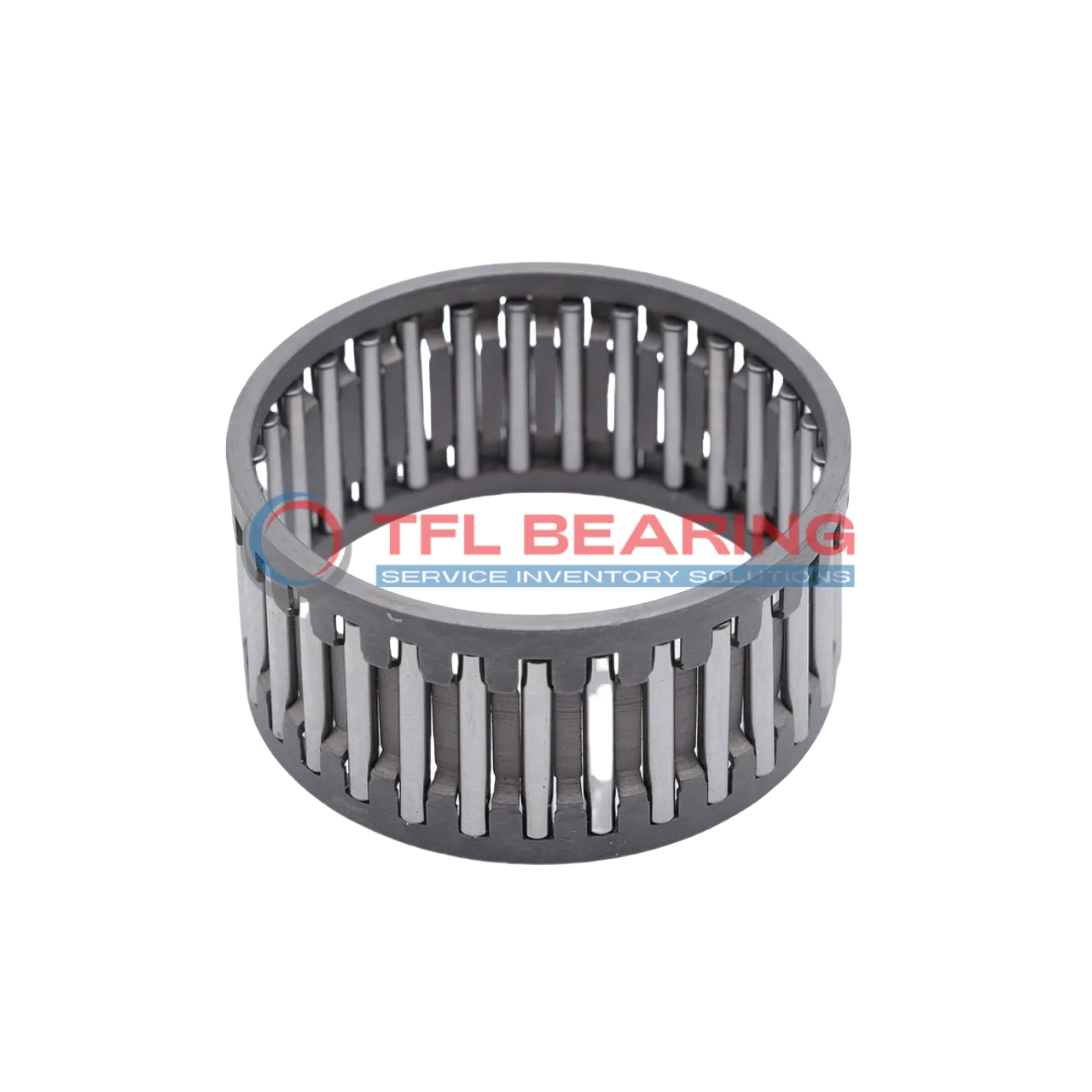

The C243016 is a needle roller and cage assembly with a 1.5-inch bore and 1.875-inch outer diameter, built from sturdy steel. It handles radial loads up to 10800 lbf and spins smoothly at speeds up to 11400 RPM.
Its single-row design and steel cage provide reliable performance, even in demanding conditions. The assembly works well in temperatures ranging from -30°C to 110°C.
This model is interchangeable with INA bearings, making it a practical choice for replacements. Ideal for applications like gearboxes or automotive systems where space is limited but high load capacity is needed.
Weighing just 76.2 grams, it’s lightweight yet durable. Compliant with RoHS standards for safe use.
"*" indicates required fields
How Does C243016 Bearing Handle Heavy Loads?
C243016 Bearing features steel needles and cage, providing strong resistance to heavy radial loads.
Its dynamic radial load capacity reaches 10800 lbf, ensuring reliable performance in demanding applications.
The single-row construction of C243016 Bearing ensures stability and reduces wear during operation.
With a maximum speed of 11400 rpm, it offers both durability and efficiency.
C243016 Bearing operates smoothly in temperatures ranging from -30° to 110°C.
Its compact design and steel construction make it suitable for various industrial uses.
Industrial Uses of C243016 Bearing
C243016 Bearing is commonly used in industrial gearboxes, where its compact design and high load capacity make it ideal for tight spaces. The steel needle rollers provide smooth rotation even under heavy radial loads.
Where Is C243016 Bearing Used?
You’ll often find C243016 Bearing in automotive transmissions, where its durability and high-speed capability ensure reliable performance. Its inch sizing makes it a good fit for many North American vehicle models.
Built for Heavy-Duty Use: C243016 Bearing
In construction equipment, C243016 Bearing handles the tough conditions of excavators and loaders. The steel cage keeps the needle rollers aligned, even during intense vibrations and shocks.
Automotive vs Aerospace: Applications of C243016 Bearing
While C243016 Bearing excels in car transmissions, it’s also used in aircraft landing gear systems. Its lightweight design and high load capacity make it versatile across different industries.
Perfect Fit for Automation: C243016 Bearing
C243016 Bearing works well in robotic arms, where precision and reliability are key. The single-row construction ensures consistent movement in automated assembly lines.
