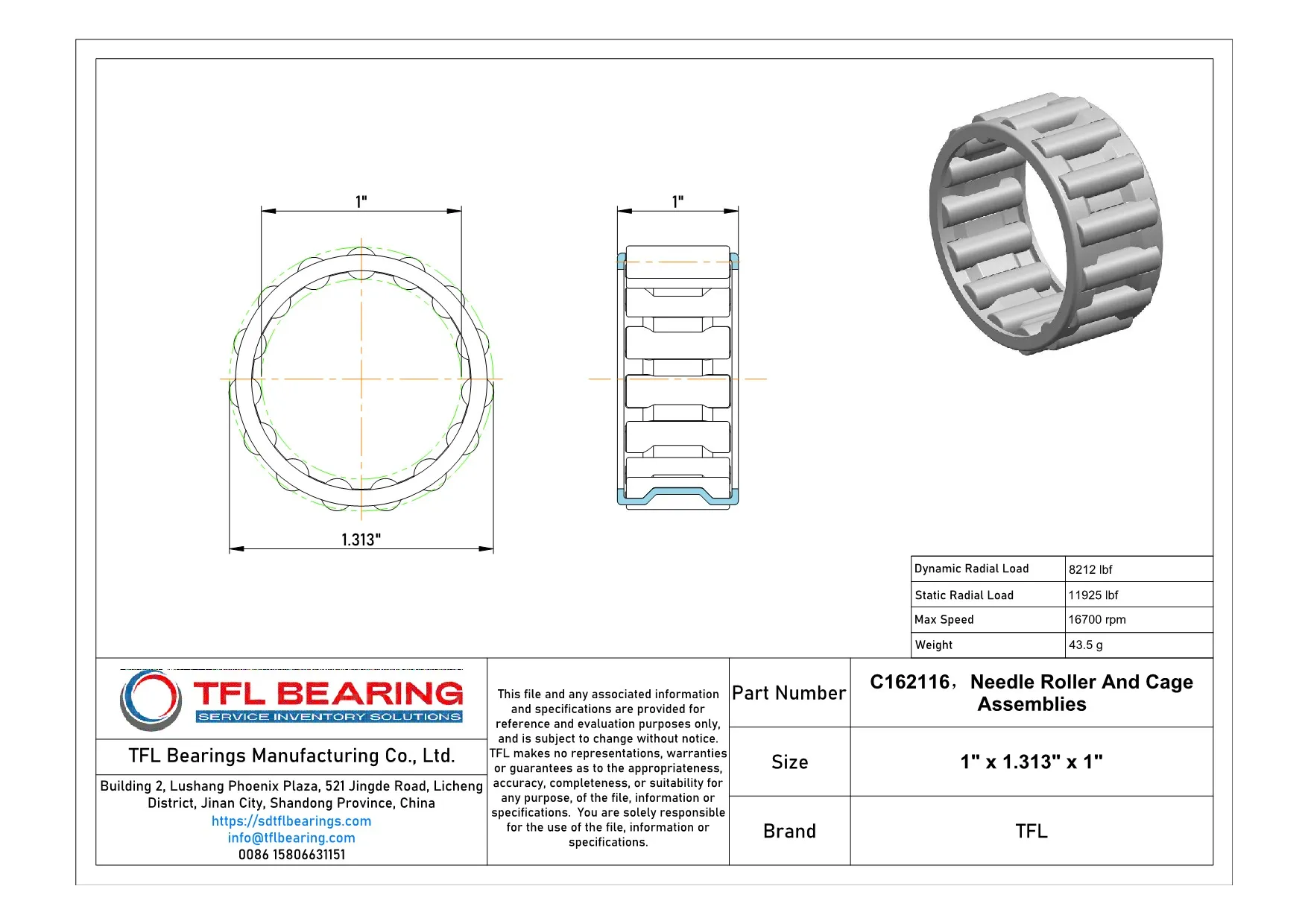

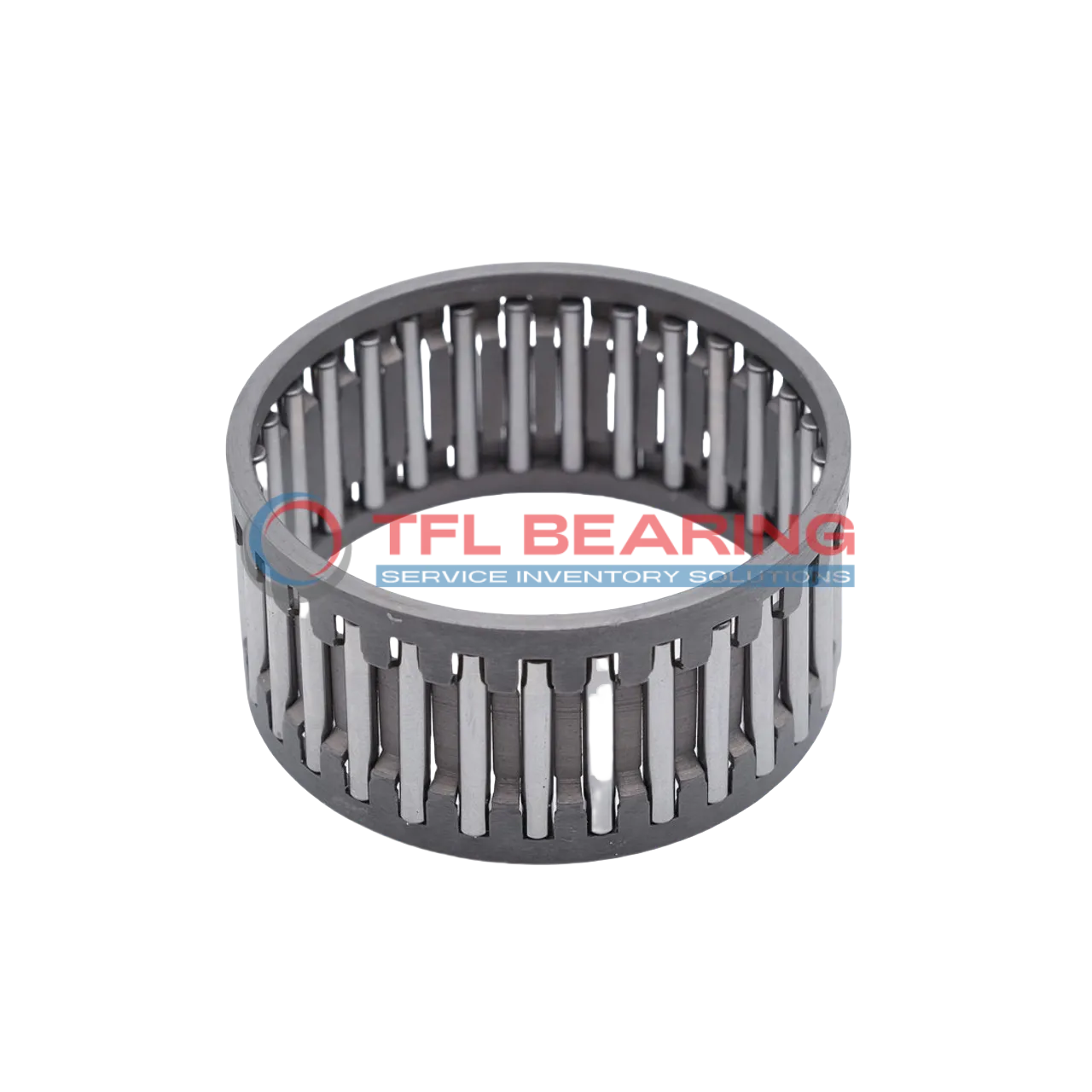

The C162116 is a needle roller and cage assembly with a 1-inch bore and 1.313-inch outer diameter, crafted from sturdy steel. It handles radial loads up to 8212 lbf and spins smoothly at speeds up to 16700 RPM.
Its single-row design with a steel cage ensures durability and efficient performance. The assembly operates well in temperatures ranging from -30°C to 110°C.
This model is interchangeable with INA bearings, making it a practical choice for replacements. Ideal for applications like gearboxes or automotive systems where high radial loads are common.
Weighing just 43.5g, it’s lightweight yet robust for its size. Compliant with RoHS standards for safe use.
"*" indicates required fields
How Does C162116 Bearing Handle High-Speed Applications?
C162116 Bearing is built with steel needles and a steel cage, ensuring durability under high radial loads.
Its dynamic radial load capacity of 8212 lbf makes it suitable for demanding industrial uses.
The single-row design allows for smooth operation at speeds up to 16,700 rpm.
With a temperature range of -30° to 110°C, it performs reliably in various environments.
Why Choose C162116 Bearing for Precision Tasks?
C162116 Bearing’s needle roller design provides precise movement and high load capacity.
The steel construction ensures long-lasting performance, even under heavy static radial loads of 11,925 lbf.
Its compact inch-sized dimensions (1″ bore, 1.313″ outer diameter) make it ideal for space-constrained applications.
The compliant RoHS status ensures it meets environmental standards.
Engineered for Precision: C162116 Bearing
C162116 Bearing features a single-row needle roller design, optimised for accuracy and efficiency.
The steel cage maintains proper needle alignment, reducing friction and wear.
With a maximum speed of 16,700 rpm, it excels in high-speed machinery.
Its lightweight design (43.5 g) ensures easy handling without compromising strength.
Steel vs Ceramic Bearings: Strengths of C162116 Bearing
C162116 Bearing uses high-quality steel needles for superior strength and load-bearing capacity.
The steel construction provides excellent resistance to wear, even under high dynamic loads.
Its temperature tolerance (-30° to 110°C) ensures reliable performance in various conditions.
The inch-sized dimensions offer compatibility with a wide range of industrial equipment.
Industrial Uses of C162116 Bearing
C162116 Bearing is commonly used in industrial machinery, especially in compact spaces where high load capacity is needed, like conveyor systems and gearboxes. Its steel construction ensures durability even in demanding environments.
Where Is C162116 Bearing Used?
You’ll often find C162116 Bearing in automotive applications, such as transmissions and steering systems, where its needle roller design handles radial loads efficiently. The inch sizing makes it a good fit for many US-made vehicles.
Perfect Fit for Automation: C162116 Bearing
In robotics and automation, C162116 Bearing works well in robotic arms and precision equipment due to its high-speed capability and reliable performance. The steel cage keeps everything running smoothly under stress.
Medical vs Industrial: Where C162116 Bearing Excels
While C162116 Bearing is sturdy enough for industrial tools, it’s also precise enough for medical devices like dental drills. Its balanced design makes it versatile across different fields.
Light-Duty vs Heavy-Duty: Best Uses for C162116 Bearing
For lighter tasks, C162116 Bearing fits well in small electric motors, while heavier uses include construction equipment. Its dynamic load rating ensures it can handle both with ease.
