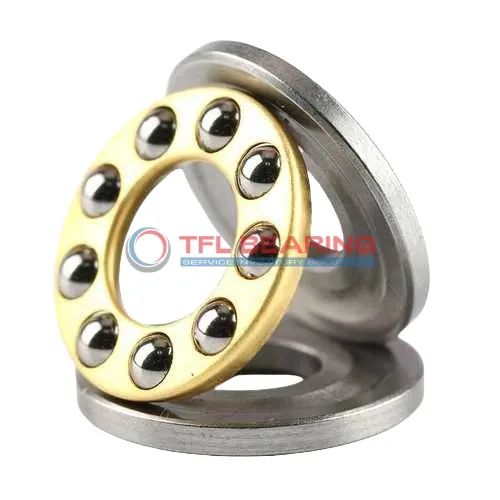

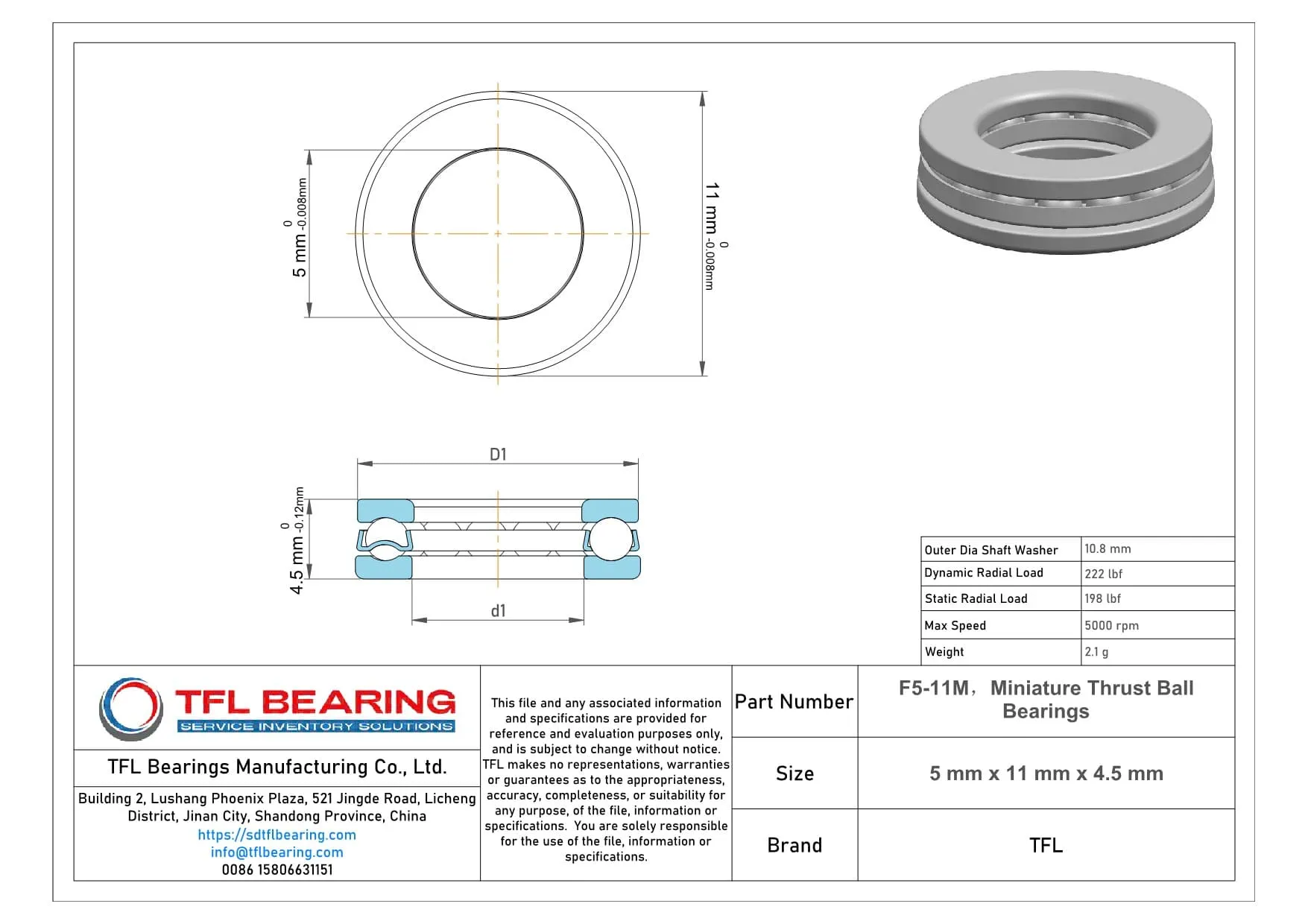

The F5-11M is a compact thrust ball bearing measuring just 5mm by 11mm by 4.5mm, crafted from sturdy chrome steel for reliable performance. It supports thrust loads up to 222 lbf and operates smoothly at speeds up to 5000 RPM.
Its grooved raceway design ensures stable movement, while the brass cage enhances durability. The open seal type allows for easy lubrication, keeping it running smoothly in temperatures from -30°C to 110°C.
This lightweight bearing weighs only 2.1g, making it ideal for small-scale applications like precision instruments or miniature machinery. Compliant with RoHS and REACH standards, it’s a safe and dependable choice for various uses.
With seven high-quality steel balls, it offers consistent performance in demanding conditions. Perfect for scenarios where space is limited but reliability is key.
"*" indicates required fields
Why Choose F5-11M Bearing for Precision Tasks?
F5-11M Bearing features a grooved raceway design, ensuring smooth operation under thrust loads.
Its compact size of 5 mm×11 mm×4.5 mm makes it ideal for miniature applications.
The chrome steel rings and balls provide durability, while the brass cage maintains alignment.
With a dynamic thrust load capacity of 222 lbf, it handles precise movements efficiently.
F5-11M Bearing operates in temperatures from -30° to 110 °C, suitable for varied environments.
Its open design requires lubrication but ensures easy maintenance and long service life.
Common Applications of F5-11M Bearing
F5-11M Bearing is widely used in small industrial equipment, such as precision instruments and miniature gearboxes, where its compact size and grooved raceway design ensure efficient thrust load handling. The open seal type allows for easy lubrication, extending its service life in demanding conditions.
In automotive applications, F5-11M Bearing fits well in compact assemblies like electric window mechanisms or small actuators, providing reliable performance under moderate loads. Its brass cage offers good wear resistance, making it suitable for frequent-use components.
For consumer electronics, F5-11M Bearing is often found in devices like handheld fans or small printers, where its lightweight design and smooth operation are key advantages. The chrome steel construction ensures durability even in high-speed scenarios.
Medical devices such as dental tools or lab equipment benefit from F5-11M Bearing’s precise movement and consistent performance. The small dimensions make it ideal for space-constrained applications where reliability is critical.
Automation systems, including small robotic arms or 3D printers, frequently use F5-11M Bearing for its ability to handle axial loads with minimal friction. The metric sizing ensures compatibility with a wide range of compact machinery.
