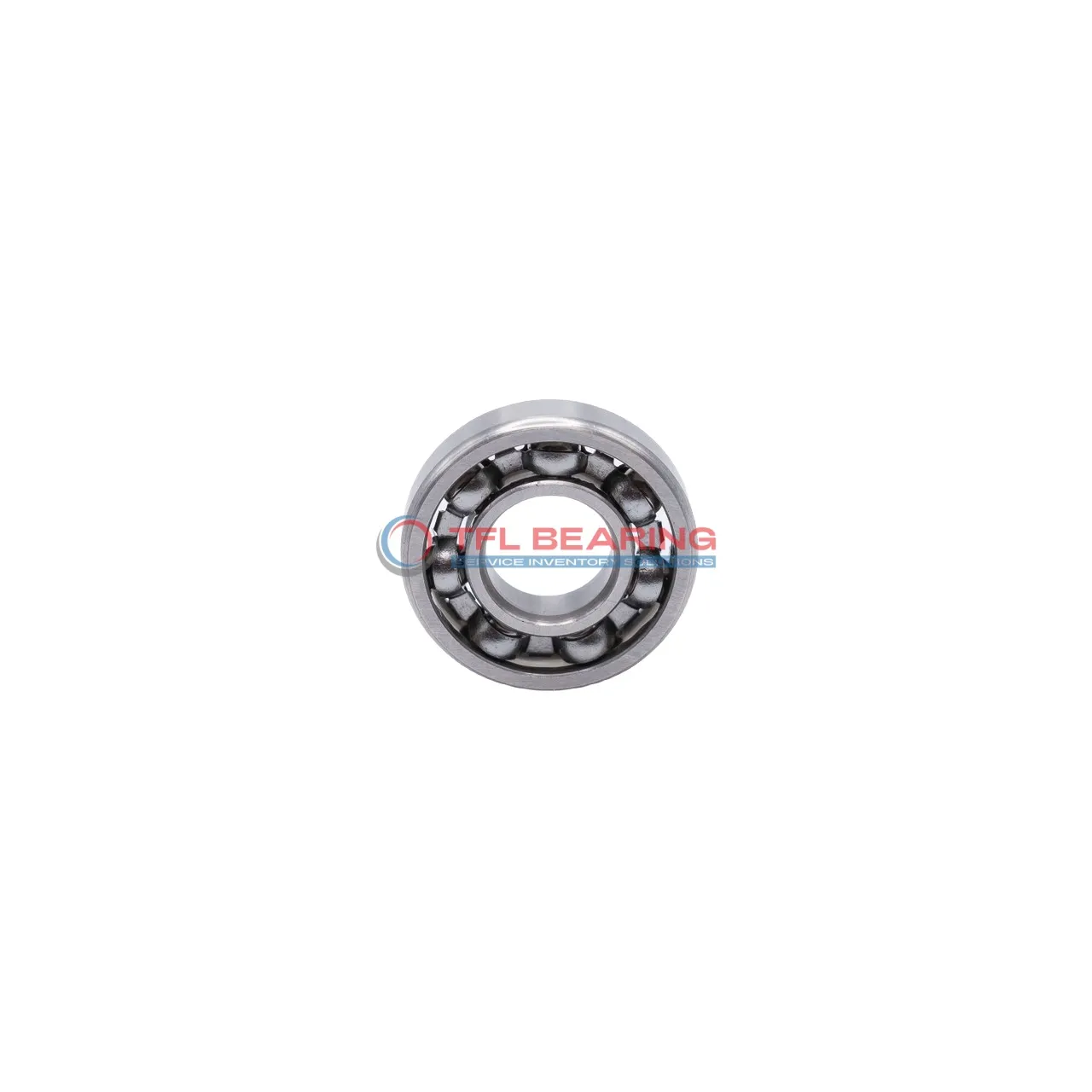

The S698 is a compact miniature ball bearing with an 8mm bore and 19mm outer diameter, crafted entirely from stainless steel for durability. It handles radial loads up to 385 lbf and spins smoothly at speeds up to 32,400 RPM.
Its open design and ABEC1 tolerance ensure reliable performance, while the stainless steel cage adds strength. The bearing operates in temperatures from -30°C to 110°C, making it versatile for various environments.
With a lightweight build at just 7.12g, it’s easy to integrate into small assemblies. Ideal for applications like small motors, precision instruments, or hobbyist projects where space and reliability matter.
Compliant with RoHS and REACH standards, it’s a safe choice for both industrial and consumer uses. Regular lubrication will keep it running smoothly for longer.
"*" indicates required fields
Performance Features of S698 Bearing
S698 Bearing is crafted with stainless steel rings and balls, offering good resistance to corrosion and wear.
Its dynamic radial load capacity of 385 lbf ensures reliable performance in various applications.
The open design allows for easy lubrication, maintaining smooth operation over time.
With a maximum speed of 32,400 rpm, it is suitable for high-speed tasks.
How Is S698 Bearing Engineered for Reliability?
S698 Bearing features a single-row construction with seven stainless steel balls for balanced load distribution.
The ABEC1 tolerance class ensures consistent performance in precision applications.
Its radial clearance range of 0.002mm to 0.013mm allows for smooth rotation under varying conditions.
The lightweight design at just 7.12 g makes it ideal for miniature applications.
Built for Efficiency: S698 Bearing
S698 Bearing’s stainless steel cage keeps the balls aligned, reducing friction and noise.
The metric size of 8 mm×19 mm×6 mm fits perfectly in compact spaces.
It operates efficiently within a temperature range of -30° to 110 °C.
Regular lubrication ensures long-lasting performance and minimal maintenance.
Common Applications of S698 Bearing
The S698 Bearing is widely used in small electric motors, such as those found in household appliances and power tools. Its compact size and stainless steel construction make it resistant to corrosion, ideal for humid environments.
Industrial Uses of S698 Bearing
In automation systems, S698 Bearing ensures smooth rotation in conveyor belts and robotic arms. The ABEC1 tolerance provides reliable performance without the need for high precision adjustments.
Where Is S698 Bearing Used?
You’ll often find S698 Bearing in medical devices like dental drills, where its high-speed capability and quiet operation are essential. The open design allows for easy lubrication, extending its service life.
Perfect Fit for Automation: S698 Bearing
S698 Bearing works well in 3D printers, supporting precise movements of the print head. Its lightweight design and low friction reduce energy consumption, making it efficient for continuous use.
Light-Duty vs Heavy-Duty: Best Uses for S698 Bearing
For light-duty applications like cooling fans, S698 Bearing offers durability and low maintenance. In heavier uses, such as small gearboxes, its dynamic load capacity ensures consistent performance.
