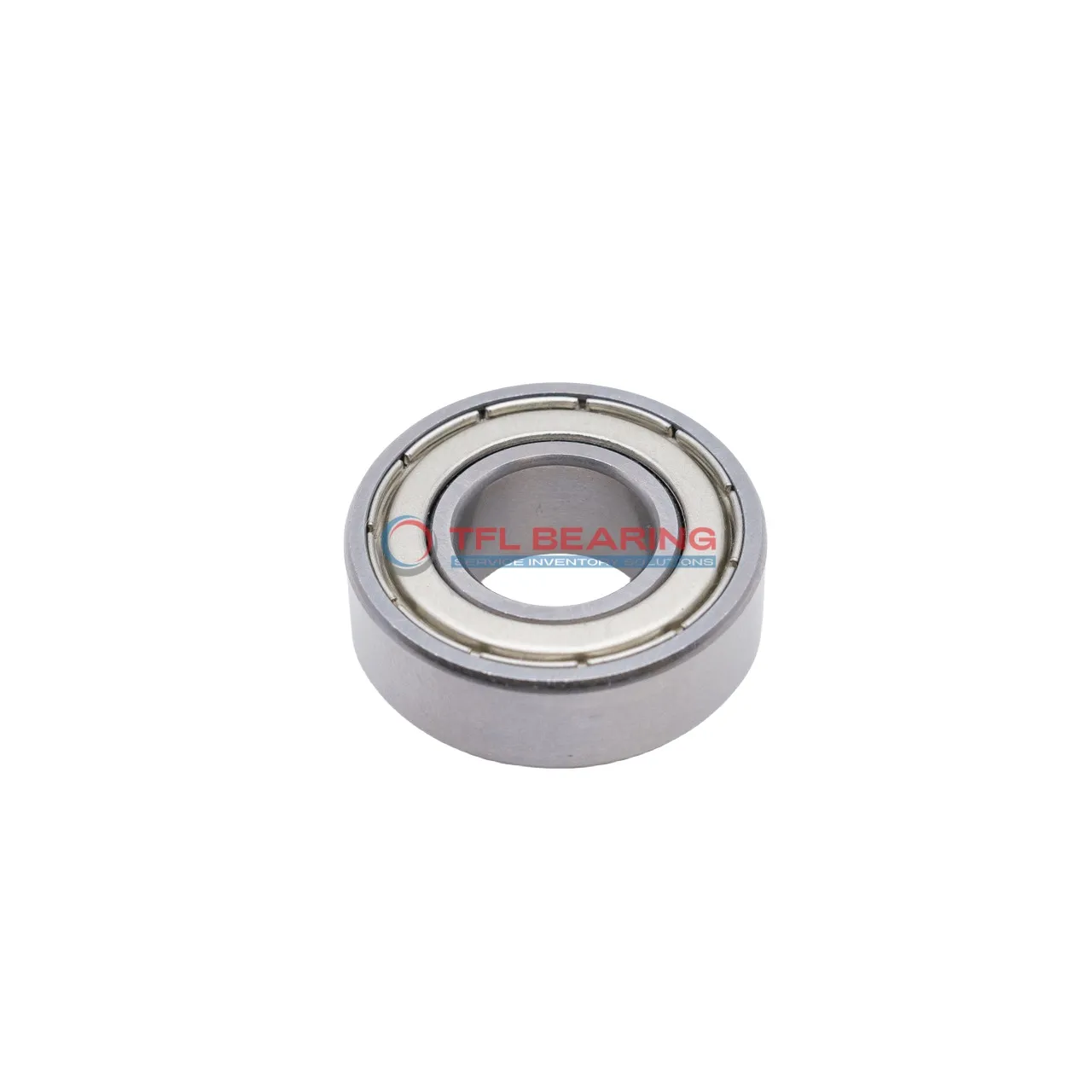

The 696zz is a miniature ball bearing with a 6mm bore and 15mm outer diameter, crafted from durable chrome steel. Its compact size (5mm wide) makes it ideal for tight spaces while handling radial loads up to 256 lbf.
Shielded on both sides, it keeps dirt out and grease in, extending its lifespan. The stainless steel cage ensures smooth rotation at speeds up to 40,000 RPM.
With a radial clearance of 0.002mm to 0.013mm, it offers precise movement for small mechanisms. The bearing operates well in temperatures from -30°C to 110°C.
Weighing just 3.65g, it’s perfect for light-duty applications like small motors or hobby projects. Compliant with RoHS and REACH standards for safe use.
"*" indicates required fields
How Does 696zz Bearing Reduce Friction?
696zz Bearing features chrome steel rings and balls, ensuring smooth operation with minimal friction.
The stainless steel cage maintains proper ball alignment, further reducing wear and enhancing efficiency.
With a dynamic radial load capacity of 256 lbf, it handles moderate loads effortlessly.
Its shielded design protects against contaminants, making it suitable for various environments.
The bearing operates at speeds up to 40,000 rpm, balancing performance and durability.
Its compact size of 6 mm×15 mm×5 mm makes it ideal for miniature applications.
Lubrication ensures long-term reliability, while the ABEC1 tolerance class guarantees consistent performance.
The 300 series stainless steel shields add an extra layer of protection.
Common Applications of 696zz Bearing
696zz Bearing is widely used in small electric motors, such as those found in cooling fans or power tools, due to its compact size and shielded design. The stainless steel cage ensures smooth rotation even in high-speed applications.
In automation systems, 696zz Bearing fits perfectly into robotic arms and 3D printers, where precision and reliability are key. Its ABEC1 tolerance class makes it suitable for tasks requiring consistent performance.
For consumer electronics like printers and small appliances, 696zz Bearing offers quiet operation and long service life. The chrome steel construction provides durability, while the shielded design keeps contaminants out.
Medical devices, such as dental tools or lab equipment, benefit from 696zz Bearing’s smooth operation and resistance to wear. Its lightweight design is ideal for portable or handheld instruments.
