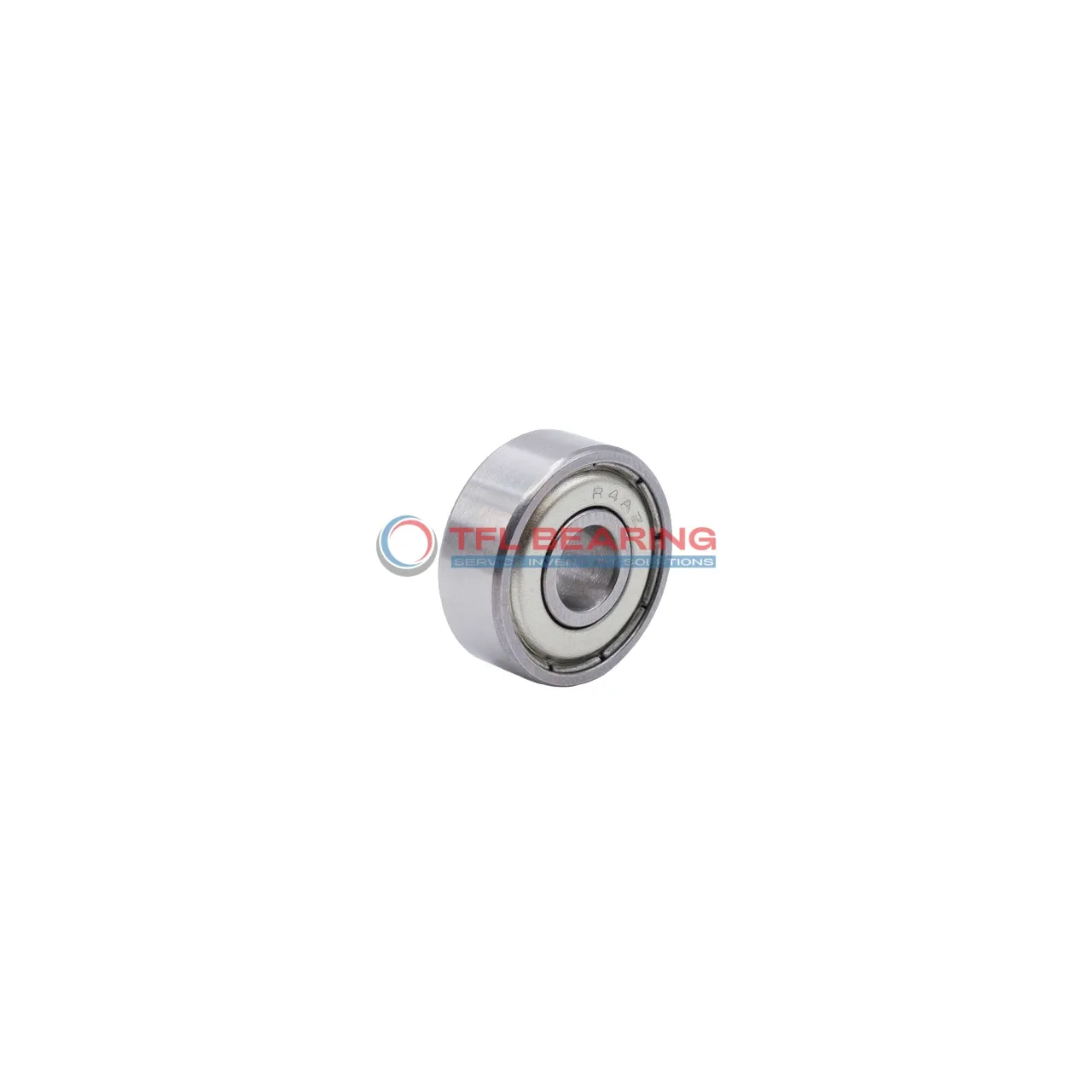

The 682xzz is a compact miniature ball bearing with a 2.5mm bore and 6mm outer diameter, ideal for tight spaces. Made from chrome steel, it handles radial loads up to 40 lbf and spins smoothly at speeds up to 71,000 RPM.
Its shielded design keeps dust out while maintaining easy access for lubrication. The stainless steel cage ensures durability, and the bearing operates well in temperatures from -30°C to 110°C.
With a lightweight design at just 0.35g, it’s perfect for small devices like drones or precision instruments. Compliant with RoHS and REACH standards, it’s a reliable choice for various applications.
"*" indicates required fields
How Does 682xzz Bearing Reduce Friction?
682xzz Bearing features a shielded design with chrome steel rings and balls, ensuring smooth radial load handling.
Its ABEC1 tolerance class and MC3 radial clearance provide consistent performance with minimal friction.
The stainless steel cage maintains precise ball alignment, reducing wear and enhancing efficiency.
With a maximum speed of 71,000 rpm, it is ideal for high-speed miniature applications.
The 300 series stainless steel shields protect against contaminants, extending service life.
Its compact 2.5 mm×6 mm×2.6 mm size makes it suitable for precision instruments.
Common Applications of 682xzz Bearing
682xzz Bearing is widely used in small electric motors, such as those found in cooling fans or handheld devices, due to its compact size and reliable performance. The shielded design helps keep out dust, making it suitable for environments where cleanliness matters.
How Does 682xzz Bearing Improve Performance?
In precision instruments like optical encoders, 682xzz Bearing ensures smooth rotation with minimal friction. Its ABEC1 tolerance provides consistent accuracy for delicate measurements.
Built for Heavy-Duty Use: 682xzz Bearing
Despite its small size, 682xzz Bearing handles radial loads well in applications like miniature gearboxes. The chrome steel construction offers durability even in continuous operation.
Medical vs Industrial: Where 682xzz Bearing Excels
In medical devices like dental tools, 682xzz Bearing’s stainless steel cage resists corrosion from frequent sterilisation. For industrial uses, it’s a go-to choice for small conveyor rollers.
Perfect Fit for Automation: 682xzz Bearing
682xzz Bearing works seamlessly in robotic joints and 3D printer assemblies, where low noise and high-speed capability are key. The metric sizing ensures easy integration with European-designed machinery.
