Metric Size Miniature Flanged Ball Bearings SF683zz
Metric Size Miniature Flanged Ball Bearings SF683zz

Metric Size Miniature Flanged Ball Bearings SF683zz

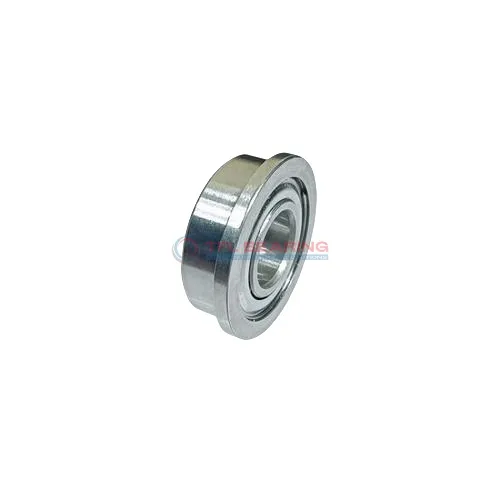

The SF683zz is a small, shielded ball bearing with a 3mm bore and 7mm outer diameter, crafted entirely from stainless steel for durability. It handles radial loads up to 54 lbf and spins at speeds up to 56,700 RPM, making it suitable for high-speed applications.

Its shielded design helps keep dust out while maintaining smooth operation, and the stainless steel cage ensures long-term reliability. The bearing requires lubrication for optimal performance and works in temperatures from -30°C to 110°C.

With a compact width of just 3mm and a lightweight 0.53g build, it’s ideal for small devices like precision instruments or miniature motors. Compliant with RoHS and REACH standards, it’s a safe and practical choice for various uses.

The flange design adds stability, making installation easier in tight spaces. Its ABEC1 tolerance and MC3 radial clearance balance performance and affordability for everyday needs.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number SF683zz
  • Brand TFL
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Dia 3 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 7 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 3 mm
  • Width Tolerance -0.12mm to 0
  • Flange Outer Dia 8.1 mm
  • Flange Thickness 0.8 mm
  • Radial Clearance 0.002mm to 0.013mm
  • Ball Qty 8
  • Ball Dia 1.0000 mm
  • For Load Direction Radial
  • Construction Single Row
  • Inner Ring Type Standard
  • Seal Type Shielded
  • Tolerance Class ABEC1
  • Radial Clearance Trade No MC3
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 54 lbf
  • Static Radial Load 18 lbf
  • Max Speed 56700 rpm
  • Temperature Range -30° to 110 °C
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.53 g
  • Shield Material 300 Series Stainless Steel
  • Price($) 1.62

Features

How Does SF683zz Bearing Achieve High-Speed Performance?

SF683zz Bearing is crafted with stainless steel rings and balls, ensuring smooth operation at high speeds.
Its maximum speed of 56,700 rpm makes it suitable for precision applications requiring rapid rotation.
The shielded design protects against contaminants while maintaining low friction.
With a dynamic radial load capacity of 54 lbf, it balances speed and durability effectively.

Application

Common Applications of SF683zz Bearing
SF683zz Bearing is widely used in small electric motors, such as those found in cooling fans or portable devices, thanks to its compact size and shielded design. The stainless steel construction ensures it performs well in humid or corrosive environments.

In automation systems, SF683zz Bearing is a reliable choice for miniature robotic arms and precision-guided mechanisms. Its high-speed capability makes it suitable for applications requiring smooth, consistent motion.

For consumer electronics like printers or handheld tools, SF683zz Bearing offers quiet operation and long service life. The shielded seals help keep out dust and debris, reducing maintenance needs.

Medical devices, such as dental handpieces or lab equipment, benefit from SF683zz Bearing’s precision and hygiene-friendly materials. Its small footprint allows integration into space-constrained designs without compromising performance.
