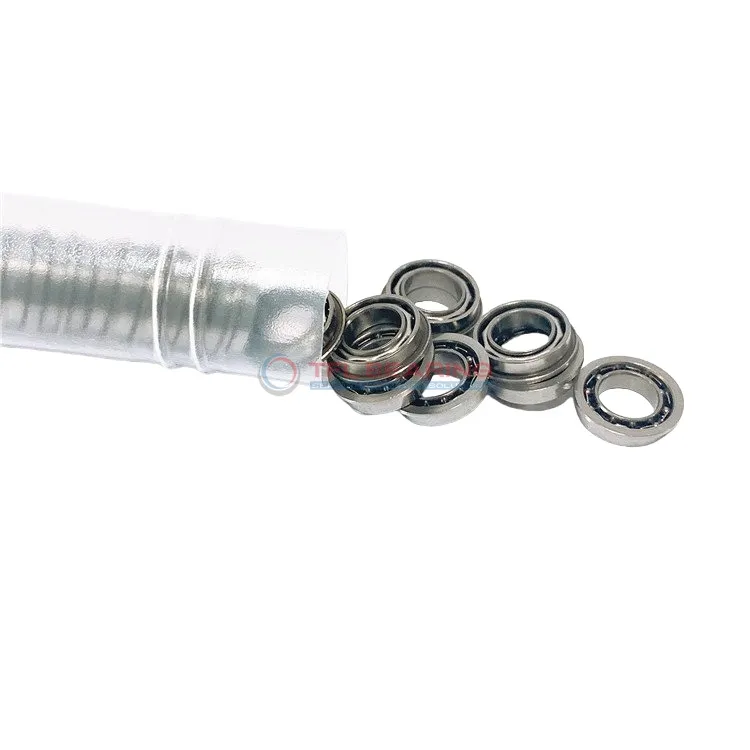

The SF609 is a single-row radial ball bearing with a 9mm bore and 24mm outer diameter, crafted entirely from stainless steel for durability. It handles radial loads up to 578 lbf and spins smoothly at speeds up to 28,800 RPM.
Its open design simplifies lubrication, while the stainless steel cage ensures consistent performance. The bearing operates well in temperatures ranging from -30°C to 110°C.
With a flange outer diameter of 27mm, it stays securely in place during high-speed rotations. The ABEC1 tolerance and MC3 radial clearance provide reliable precision for everyday use.
Weighing just 16.10g, it’s lightweight yet sturdy. Ideal for small machinery or devices where space is limited but performance matters. Compliant with RoHS and REACH standards for safety.
"*" indicates required fields
How Does SF609 Bearing Achieve High-Speed Performance?
SF609 Bearing is crafted with stainless steel rings and balls, ensuring smooth operation at speeds up to 28,800 rpm.
Its single-row design and standard inner ring provide reliable radial load support, with a dynamic capacity of 578 lbf.
The open seal type allows for easy lubrication, maintaining performance in various conditions.
With a precise radial clearance of 0.002mm to 0.013mm, SF609 Bearing ensures minimal friction and wear.
Its lightweight design at just 16.10 g makes it ideal for applications where weight is a concern.
The stainless steel cage keeps the balls aligned, enhancing durability and longevity.
Common Applications of SF609 Bearing
SF609 Bearing is widely used in small electric motors, such as those found in cooling fans or power tools, thanks to its compact size and high-speed capability. The stainless steel construction ensures durability even in humid or corrosive environments.
In automation systems, SF609 Bearing provides smooth rotation for components like robotic arms or conveyor belt rollers. Its open design allows for easy lubrication, extending service life in continuous operation.
For precision instruments like dental drills or laboratory equipment, SF609 Bearing offers reliable performance with minimal vibration. The ABEC1 tolerance ensures consistent accuracy for sensitive applications.
Where Is SF609 Bearing Used?
You’ll often find SF609 Bearing in household appliances like blenders or printers, where quiet operation matters. The lightweight design doesn’t compromise on load capacity for everyday use.
The flange design makes SF609 Bearing ideal for mounting in tight spaces, such as camera gimbals or drone motors. Its high RPM rating suits applications demanding rapid movement with precision.
Built for Versatility: SF609 Bearing
SF609 Bearing works well in both wet and dry environments, from food processing equipment to bicycle components. The all-stainless construction resists rust while maintaining smooth rotation.
Medical vs Industrial: Where SF609 Bearing Excels
In medical devices like syringe pumps, SF609 Bearing delivers contamination-free operation crucial for sterile environments. Meanwhile, its industrial version handles tougher conditions in packaging machinery equally well.
The radial clearance of SF609 Bearing makes it adaptable to temperature fluctuations in applications like refrigeration units. Seven stainless steel balls distribute loads evenly for consistent performance over time.
