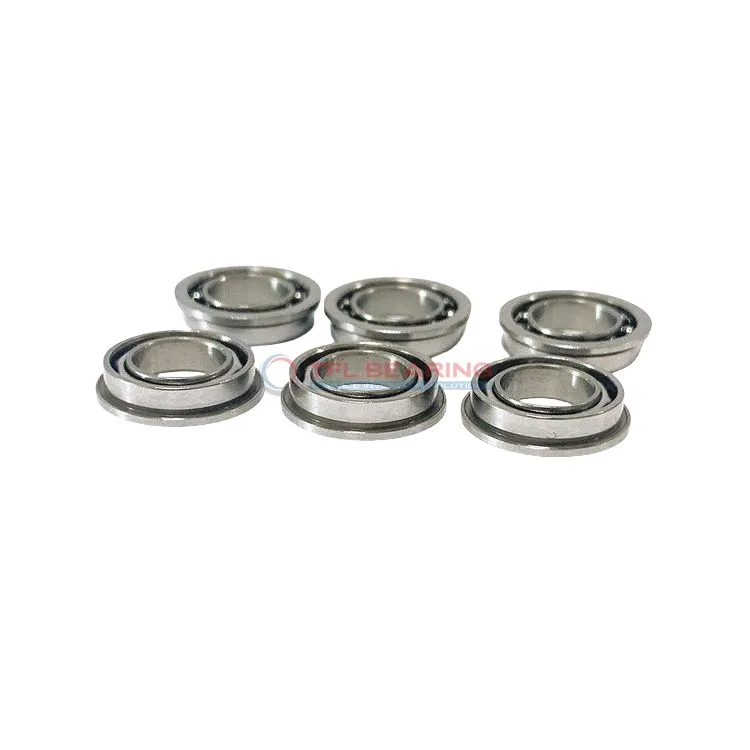

The SF605 is a compact radial ball bearing with a 5mm bore and 14mm outer diameter, crafted entirely from stainless steel for durability. It supports radial loads up to 229 lbf and spins at speeds up to 36,000 RPM, making it suitable for high-speed applications.
Its open design requires lubrication but allows for easy maintenance, while the stainless steel cage ensures smooth operation. The bearing operates efficiently in temperatures ranging from -30°C to 110°C.
With a lightweight design at just 3.83g, it’s ideal for small machinery or precision instruments. The flange outer diameter of 16mm adds stability, helping it stay securely in place during use.
Compliant with RoHS and REACH standards, this bearing is a reliable choice for applications needing high-speed performance and corrosion resistance, such as dental tools or small motors.
"*" indicates required fields
Why Choose SF605 Bearing for Precision Tasks?
SF605 Bearing is crafted with stainless steel rings and balls, ensuring smooth radial load handling.
Its dynamic radial load capacity of 229 lbf makes it suitable for high-precision applications.
The open design allows for easy lubrication, maintaining optimal performance over time.
With a maximum speed of 36,000 rpm, it excels in high-speed operations.
SF605 Bearing’s ABEC1 tolerance class ensures consistent accuracy in demanding conditions.
Its compact size and lightweight design make it ideal for space-constrained applications.
Where Is SF605 Bearing Used?
SF605 Bearing is commonly used in small electric motors, such as those found in cooling fans or handheld tools. Its compact size and stainless steel construction make it suitable for lightweight applications.
In automation systems, SF605 Bearing works well in precision components like robotic arms or 3D printers. The high-speed capability ensures smooth movement in repetitive tasks.
For consumer electronics, SF605 Bearing fits nicely into devices like printers or small appliances. The open design allows for easy lubrication, extending its lifespan in everyday use.
