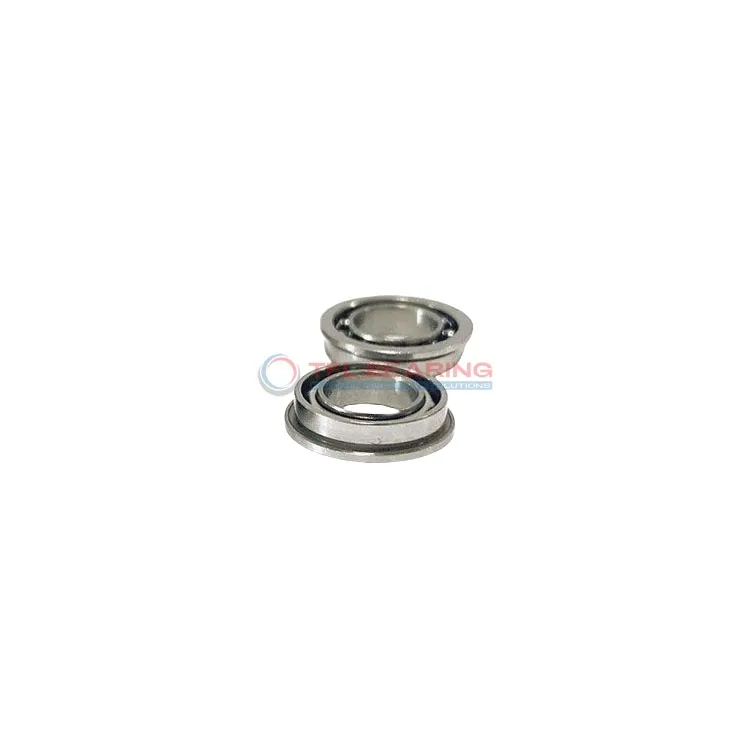

The F696 is a small, single-row radial ball bearing with a 6mm bore and 15mm outer diameter, crafted from durable chrome steel. It supports radial loads up to 256 lbf and spins at speeds up to 40,000 RPM, making it suitable for high-speed applications.
Its open design allows for easy lubrication, while the stainless steel cage ensures smooth operation. The bearing features a flange for secure mounting, with a 17mm outer diameter and 1.2mm thickness.
With a radial clearance of 0.002mm to 0.013mm, it offers precise performance. Ideal for small machinery, electric motors, or devices requiring fast, reliable rotation. It operates in temperatures from -30°C to 110°C and complies with RoHS and REACH standards.
Weighing just 4.24g, it’s lightweight yet robust for its compact size. Perfect for applications where space and speed are key considerations.
"*" indicates required fields
How Does F696 Bearing Reduce Friction?
F696 Bearing features a single-row design with chrome steel rings and balls, ensuring smooth radial movement.
Its ABEC1 tolerance class and precise radial clearance of 0.002mm to 0.013mm contribute to low friction operation.
The stainless steel cage maintains ball alignment, reducing wear and enhancing efficiency.
With a maximum speed of 40,000 rpm, F696 Bearing delivers reliable performance in high-speed applications.
Its compact size and lightweight design make it ideal for precision instruments.
The chrome steel construction also resists corrosion, extending its service life.
Common Applications of F696 Bearing
F696 Bearing is widely used in small electric motors, such as those found in household appliances and cooling fans. Its compact size and high-speed capability make it ideal for lightweight applications.
In automation systems, F696 Bearing supports delicate components like robotic arms and 3D printer mechanisms. The open design allows for easy lubrication, ensuring smooth operation over time.
For medical devices, F696 Bearing’s precision construction is suitable for lab equipment and small diagnostic tools. The chrome steel material provides durability while maintaining quiet performance.
Where Is F696 Bearing Used?
You’ll often find F696 Bearing in office equipment like printers and scanners, where its low noise and smooth rotation are beneficial. The small flange design helps with easy installation in tight spaces.
Automotive vs Aerospace: Applications of F696 Bearing
In automotive settings, F696 Bearing is commonly used in dashboard instruments and small actuators. Its high-speed tolerance makes it reliable for consistent performance.
For aerospace applications, F696 Bearing can be found in compact control systems and instrumentation panels. The lightweight design and precision fit meet the demands of aviation environments.
