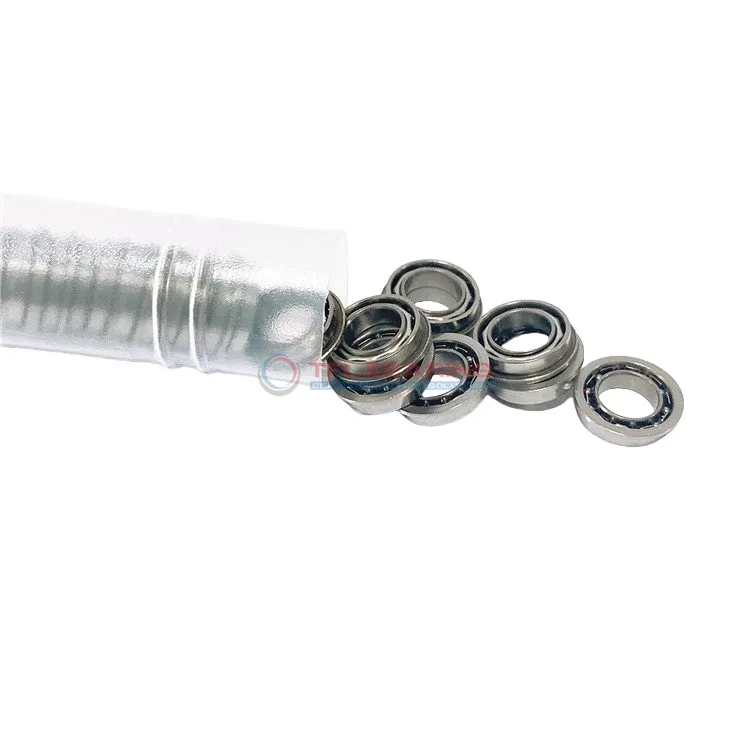

The F695 is a small, single-row radial ball bearing with a 5mm bore and 13mm outer diameter, crafted from durable chrome steel. It supports radial loads up to 206 lbf and can spin at speeds up to 43,000 RPM, making it suitable for high-speed applications.
Its open design requires regular lubrication, but the stainless steel cage ensures smooth operation and longevity. The bearing operates efficiently in temperatures ranging from -30°C to 110°C.
With a lightweight construction at just 2.73g, it’s easy to handle and install. The flange adds stability, making it a practical choice for compact machinery or small devices.
Compliant with RoHS and REACH standards, this bearing is a reliable option for engineers and hobbyists alike. Ideal for uses like small motors or precision instruments where space and speed are key.
"*" indicates required fields
Why Choose F695 Bearing for Precision Tasks?
F695 Bearing features a single-row design with chrome steel rings and balls, ensuring precise radial load handling.
Its ABEC1 tolerance class and MC3 radial clearance provide consistent performance in high-speed applications.
With a dynamic radial load capacity of 206 lbf, F695 Bearing is suitable for demanding precision instruments.
The stainless steel cage maintains ball alignment, reducing friction and wear over time.
F695 Bearing operates smoothly at speeds up to 43,000 rpm, making it ideal for small, fast-moving devices.
Its compact size and lightweight design (2.73 g) allow for easy integration into tight spaces.
Common Applications of F695 Bearing
F695 Bearing is widely used in small electric motors, such as those found in cooling fans and power tools, thanks to its compact size and high-speed capability. The open design simplifies lubrication, ensuring smooth operation over extended periods.
In automation systems, F695 Bearing fits well in robotic arms and 3D printers, where precision and low friction are key. Its chrome steel construction provides durability even in continuous-use scenarios.
For consumer electronics like printers and small appliances, F695 Bearing offers reliable performance with minimal maintenance. The lightweight design makes it ideal for space-constrained applications.
Medical devices, such as handheld diagnostic tools, benefit from F695 Bearing’s consistent performance and resistance to wear. The stainless steel cage adds an extra layer of reliability in sensitive environments.
