Metric Size Miniature Flanged Ball Bearings F606 2rs
Metric Size Miniature Flanged Ball Bearings F606 2rs

Metric Size Miniature Flanged Ball Bearings F606 2rs

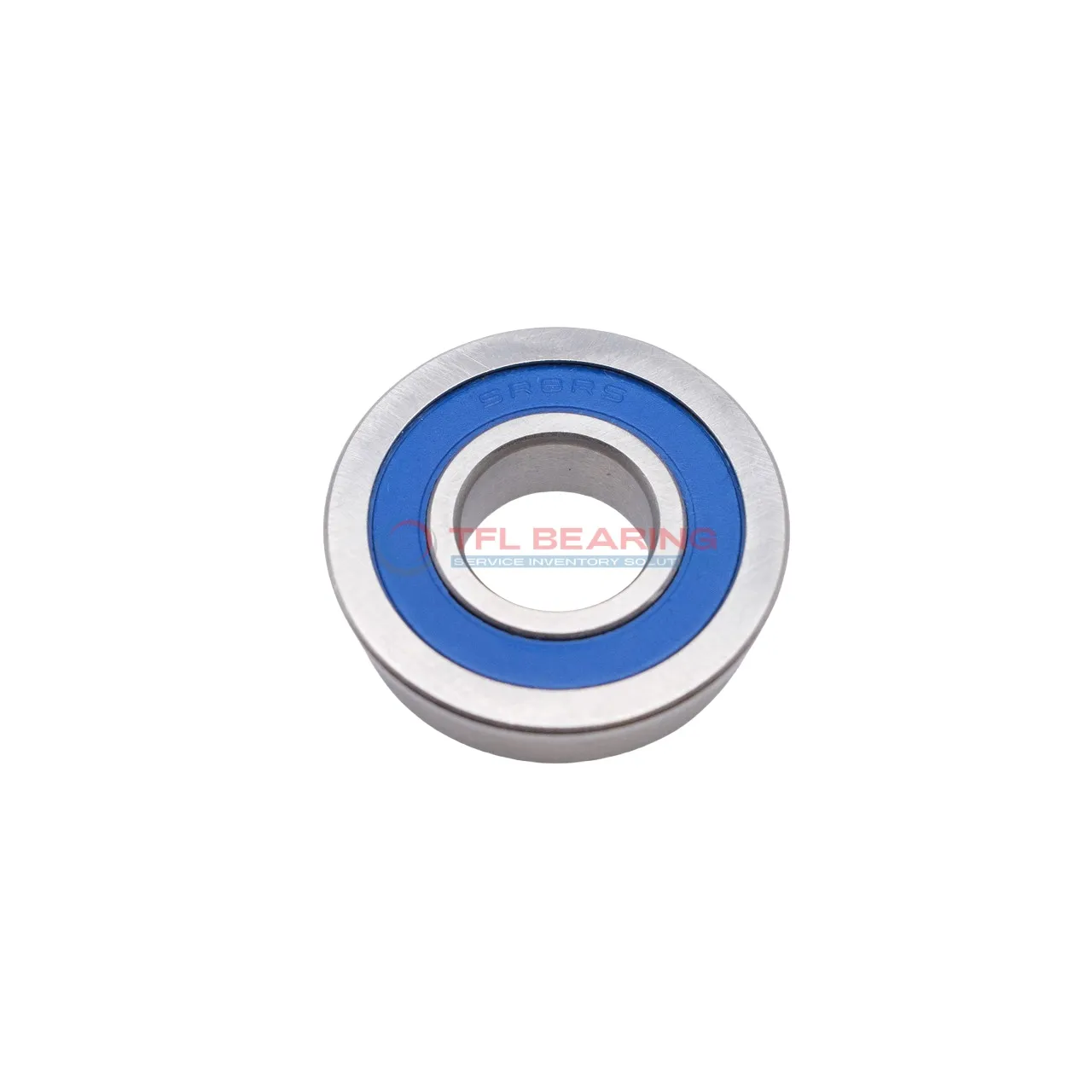

The F606 2rs is a small, sealed ball bearing with a 6mm bore and 17mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 433 lbf and spins smoothly at speeds up to 38,000 RPM.

Its sealed design keeps dirt out and grease in, making it low-maintenance. The stainless steel cage ensures reliable performance, while the nitrile rubber shield adds extra protection.

With a compact width of just 6mm and a lightweight 7.42g build, it fits easily into tight spaces. Ideal for small motors, power tools, or hobby projects where high-speed rotation is needed.

It operates in temperatures from -30°C to 110°C and meets RoHS and REACH standards for safe use. The ABEC1 tolerance class ensures consistent performance for everyday applications.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number F606 2rs
  • Brand TFL
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Dia 6 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 17 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 6 mm
  • Width Tolerance -0.12mm to 0
  • Flange Outer Dia 19 mm
  • Flange Thickness 1.2 mm
  • Radial Clearance 0.002mm to 0.013mm
  • Ball Qty 6
  • Ball Dia 3.5000 mm
  • For Load Direction Radial
  • Construction Single Row
  • Inner Ring Type Standard
  • Seal Type Sealed
  • Tolerance Class ABEC1
  • Radial Clearance Trade No MC3
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 433 lbf
  • Static Radial Load 152 lbf
  • Max Speed 38000 rpm
  • Temperature Range -30° to 110 °C
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Weight 7.42 g
  • Shield Material Nitrile Rubber
  • Price($) 1.35

Features

Why Choose F606 2rs Bearing for Precision Tasks?

F606 2rs Bearing features a sealed design with nitrile rubber shields, protecting against dust and moisture.
Its chrome steel construction ensures durability and smooth operation in radial load applications.
With a dynamic radial load capacity of 433 lbf, it handles demanding tasks efficiently.
The bearing’s ABEC1 tolerance and precise radial clearance enhance performance in high-speed applications.

How Does F606 2rs Bearing Reduce Friction?

F606 2rs Bearing’s smooth chrome steel balls and rings minimise friction during operation.
The stainless steel cage maintains proper ball alignment, reducing wear and energy loss.
Its sealed design retains lubrication, ensuring consistent performance over time.
With a maximum speed of 38,000 rpm, it delivers reliable, low-friction rotation.

Engineered for Precision: F606 2rs Bearing

F606 2rs Bearing’s ABEC1 tolerance ensures accurate performance in precision instruments.
The bearing’s tight radial clearance (0.002mm to 0.013mm) provides smooth, controlled movement.
Its compact 6mm width makes it suitable for space-constrained applications.
The sealed design protects the bearing’s six chrome steel balls from contamination.

Built for Reliability: F606 2rs Bearing

F606 2rs Bearing withstands temperatures from -30° to 110°C, maintaining performance in varied conditions.
Its chrome steel construction resists wear, extending service life in demanding applications.
The bearing’s nitrile rubber seals prevent lubricant loss and contamination ingress.
With a static radial load capacity of 152 lbf, it offers dependable operation under pressure.

Open vs Sealed Bearings: Benefits of F606 2rs Bearing

F606 2rs Bearing’s sealed design offers superior protection compared to open bearings.
The nitrile rubber shields keep out contaminants while retaining essential lubrication.
This design reduces maintenance needs while extending the bearing’s operational life.
Its 38,000 rpm maximum speed demonstrates sealed bearings can maintain high performance.

Application

Common Applications of F606 2rs Bearing
F606 2rs Bearing is widely used in small electric motors, such as those found in household appliances or cooling fans. Its sealed design helps keep out dust and moisture, ensuring longer service life in everyday conditions.

In automotive applications, F606 2rs Bearing fits well in components like window regulators or wiper motors. The compact size and reliable performance make it a go-to choice for these smaller, high-speed systems.

For DIY tools and hobbyist equipment, F606 2rs Bearing offers smooth rotation in devices like handheld drills or model-making machinery. The chrome steel construction provides durability without adding unnecessary weight.

What Makes F606 2rs Bearing a Preferred Choice?
F606 2rs Bearing works nicely in office equipment such as printers or scanners, where quiet operation matters. The rubber seals reduce noise while maintaining efficient performance over time.

In fitness equipment like treadmills or exercise bikes, F606 2rs Bearing handles continuous use with minimal maintenance. Its balanced design helps reduce vibration during high-speed rotations.

Perfect Fit for Automation: F606 2rs Bearing
F606 2rs Bearing suits small robotic arms or conveyor belt guides in automated systems. The stainless steel cage ensures reliable movement even with frequent direction changes.

For medical devices like dental tools or small pumps, F606 2rs Bearing provides precise movement control. The metric sizing makes it compatible with various international equipment standards.
