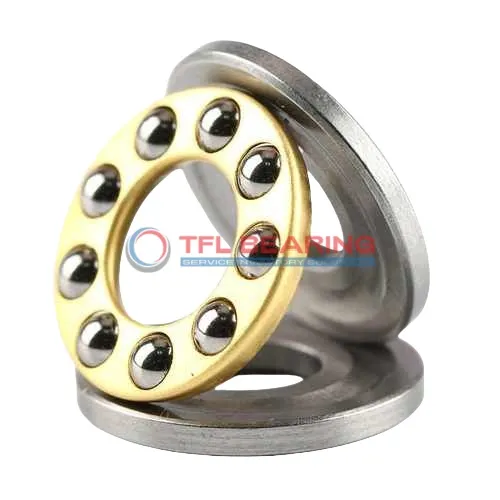

The 591/750 M is a large single-direction thrust ball bearing with a 750mm bore and 900mm outer diameter, built from tough 52100 chrome steel. It manages heavy thrust loads up to 166725 lbf and operates at speeds up to 600 RPM.
Its open design simplifies lubrication, while the stainless steel cage offers durability under stress. The bearing performs reliably in temperatures from -30°C to 110°C.
This model is interchangeable with SKF bearings, making it a practical option for replacements. Suitable for heavy-duty applications like industrial presses or large machinery where high thrust loads are expected.
Weighing 105kg, it’s designed for robust performance in demanding environments. Compliant with RoHS and REACH standards for safe use.
"*" indicates required fields
How Does 591/750 M Bearing Handle Heavy Loads?
591/750 M Bearing is built with 52100 chrome steel rings and balls, offering robust resistance to extreme thrust loads.
Its dynamic thrust load capacity reaches 166725 lbf, making it suitable for heavy-duty industrial applications.
The stainless steel cage ensures proper ball alignment, reducing friction and enhancing durability.
With a width of 90 mm and precise tolerances, it maintains stability under high-pressure conditions.
591/750 M Bearing operates efficiently within a temperature range of -30° to 110°C.
Its open seal design allows for easy lubrication, ensuring smooth performance over time.
Industrial Uses of 591/750 M Bearing
591/750 M Bearing is commonly used in large-scale industrial equipment like heavy-duty presses and rolling mills, where its high thrust load capacity handles significant axial forces. The open design simplifies lubrication and maintenance in demanding environments.
In wind turbine systems, 591/750 M Bearing supports the main shaft, ensuring smooth rotation under varying wind loads. Its chrome steel construction provides durability in outdoor conditions, while the stainless steel cage resists corrosion.
For marine applications, 591/750 M Bearing is ideal for ship propulsion systems, where its large bore diameter accommodates heavy shafts. The metric sizing ensures compatibility with international marine engineering standards.
Automotive vs Aerospace: Applications of 591/750 M Bearing
In automotive testing rigs, 591/750 M Bearing handles extreme axial loads during component durability tests. Its robust design ensures reliable performance under continuous stress.
For aerospace ground equipment, 591/750 M Bearing is used in aircraft lifting jacks and maintenance platforms. The wide temperature range allows operation in diverse climatic conditions.
Built for Heavy-Duty Use: 591/750 M Bearing
591/750 M Bearing excels in mining equipment like crushers and conveyors, where its static thrust load capacity supports massive rock loads. The precise tolerances ensure stable operation even in dusty environments.
In construction machinery, 591/750 M Bearing is found in crane slewing rings, providing reliable rotation under heavy loads. The stainless steel cage enhances longevity in high-moisture conditions.
