Metric Single Direction Thrust Ball Bearing 591/530 F
Metric Single Direction Thrust Ball Bearing 591/530 F

Metric Single Direction Thrust Ball Bearing 591/530 F

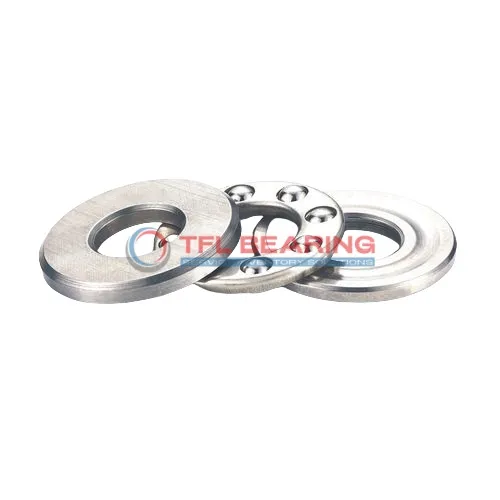

The 591/530 F is a large single-direction thrust ball bearing with a 530mm bore and 640mm outer diameter, crafted from sturdy chrome steel. It manages heavy thrust loads up to 105300 lbf and operates at speeds up to 900 RPM.

Its open design simplifies maintenance, while the stainless steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for heavy-duty applications like industrial presses or large machinery where high thrust loads are present.

Weighing 43.5kg, it’s built for robust performance. Compliant with RoHS and REACH standards for safe and eco-friendly use.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number 591/530 F
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Thrust
  • Seal Type Open
  • Bore Dia 530 mm
  • Bore Dia Tolerance -0.05mm to 0
  • Outer Dia 640 mm
  • Outer Dia Tolerance -0.075mm to 0
  • Outer Dia Shaft Washer 636 mm
  • Width 67 mm
  • Width Tolerance +0.06mm to -0.6mm
  • Inner Dia Housing Washer 534 mm
  • Chamfer Dimension 1.5 mm
  • Ring Material 52100 Chrome Steel
  • Ball Material 52100 Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Thrust Load 105300 lbf
  • Static Thrust Load 708750 lbf
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 900 rpm
  • Weight 43.5 kg

Features

What Makes 591/530 F Bearing Suitable for High-Temperature Applications?

591/530 F Bearing is crafted from 52100 chrome steel, offering reliable performance in temperatures ranging from -30° to 110°C.
Its robust construction ensures stability even under high thermal stress.

The open seal design allows for efficient heat dissipation, preventing overheating during operation.
With a static thrust load capacity of 708750 lbf, it handles heavy loads without compromising performance.

The stainless steel cage maintains ball alignment, reducing friction and wear.
This design ensures smooth operation and extends the bearing’s service life in demanding conditions.

Application

Industrial Uses of 591/530 F Bearing
591/530 F Bearing is commonly used in heavy machinery, such as large presses and hydraulic systems, where its high thrust load capacity is essential.
The open design allows for efficient lubrication, ensuring smooth operation even under demanding conditions.

Where Is 591/530 F Bearing Used?
In wind turbines, 591/530 F Bearing handles axial loads in the gearbox, contributing to reliable energy generation.
Its chrome steel construction ensures durability in harsh outdoor environments.

Built for Heavy-Duty Use: 591/530 F Bearing
591/530 F Bearing is ideal for mining equipment, where it supports massive loads in crushers and conveyors.
The stainless steel cage adds extra resistance to wear, extending the bearing’s service life.

Automotive vs Aerospace: Applications of 591/530 F Bearing
In automotive applications, 591/530 F Bearing is found in large trucks, supporting transmissions and differentials.
For aerospace, its precision and load capacity make it suitable for ground support equipment.

Practical Applications of 591/530 F Bearing
591/530 F Bearing is a reliable choice for marine applications, such as ship propulsion systems, where corrosion resistance is key.
The metric sizing ensures compatibility with a wide range of international machinery standards.
