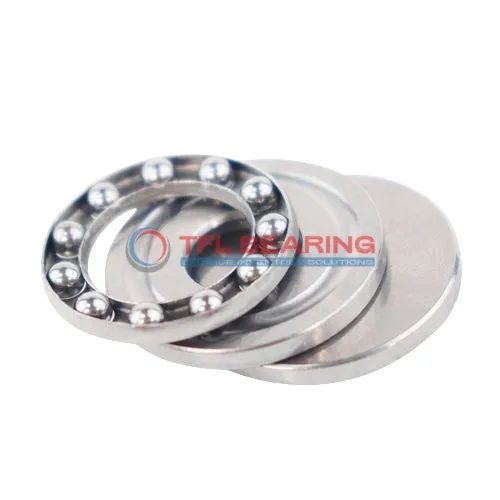

The 53222 is a single-direction thrust ball bearing with a 110mm bore and 160mm outer diameter, crafted from sturdy 52100 chrome steel. It manages thrust loads up to 28125 lbf and operates smoothly at speeds up to 2400 RPM.
Its open design simplifies maintenance, while the stainless steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 110°C.
This model is interchangeable with SKF bearings, offering a dependable replacement option. Suitable for heavy-duty applications like industrial presses or large machinery where high thrust loads are expected.
Weighing 2.91kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.
"*" indicates required fields
How Does 53222 Bearing Handle Heavy Loads?
53222 Bearing is built with 52100 chrome steel rings and balls, offering robust resistance to high thrust loads.
Its dynamic thrust load capacity reaches 28125 lbf, making it suitable for demanding industrial applications.
The stainless steel cage ensures proper ball alignment, reducing friction and wear over time.
With a maximum speed of 2,400 rpm, it delivers reliable performance under heavy-duty conditions.
53222 Bearing operates efficiently within a temperature range of -30° to 110°C.
Its open design simplifies maintenance while ensuring consistent performance in various environments.
Key Fields for 53222 Bearing
53222 Bearing is commonly used in heavy machinery, such as hydraulic presses and large gearboxes, where its high thrust load capacity is essential. The open design allows for efficient lubrication, ensuring long service life in demanding conditions.
Where Is 53222 Bearing Used?
In automotive applications, 53222 Bearing can be found in truck transmissions and heavy-duty axles, handling significant axial loads with ease. Its chrome steel construction provides durability under constant stress.
Built for Heavy-Duty Use: 53222 Bearing
For industrial fans and blowers, 53222 Bearing offers reliable performance due to its robust design and stainless steel cage. The metric sizing ensures compatibility with a variety of European and Asian equipment.
Automotive vs Aerospace: Applications of 53222 Bearing
While 53222 Bearing excels in automotive transmissions, it also finds use in aerospace landing gear systems. Its ability to handle high static thrust loads makes it versatile across industries.
Practical Applications of 53222 Bearing
In construction equipment like cranes and excavators, 53222 Bearing supports heavy axial loads. The wide temperature range ensures performance in both hot and cold environments.
