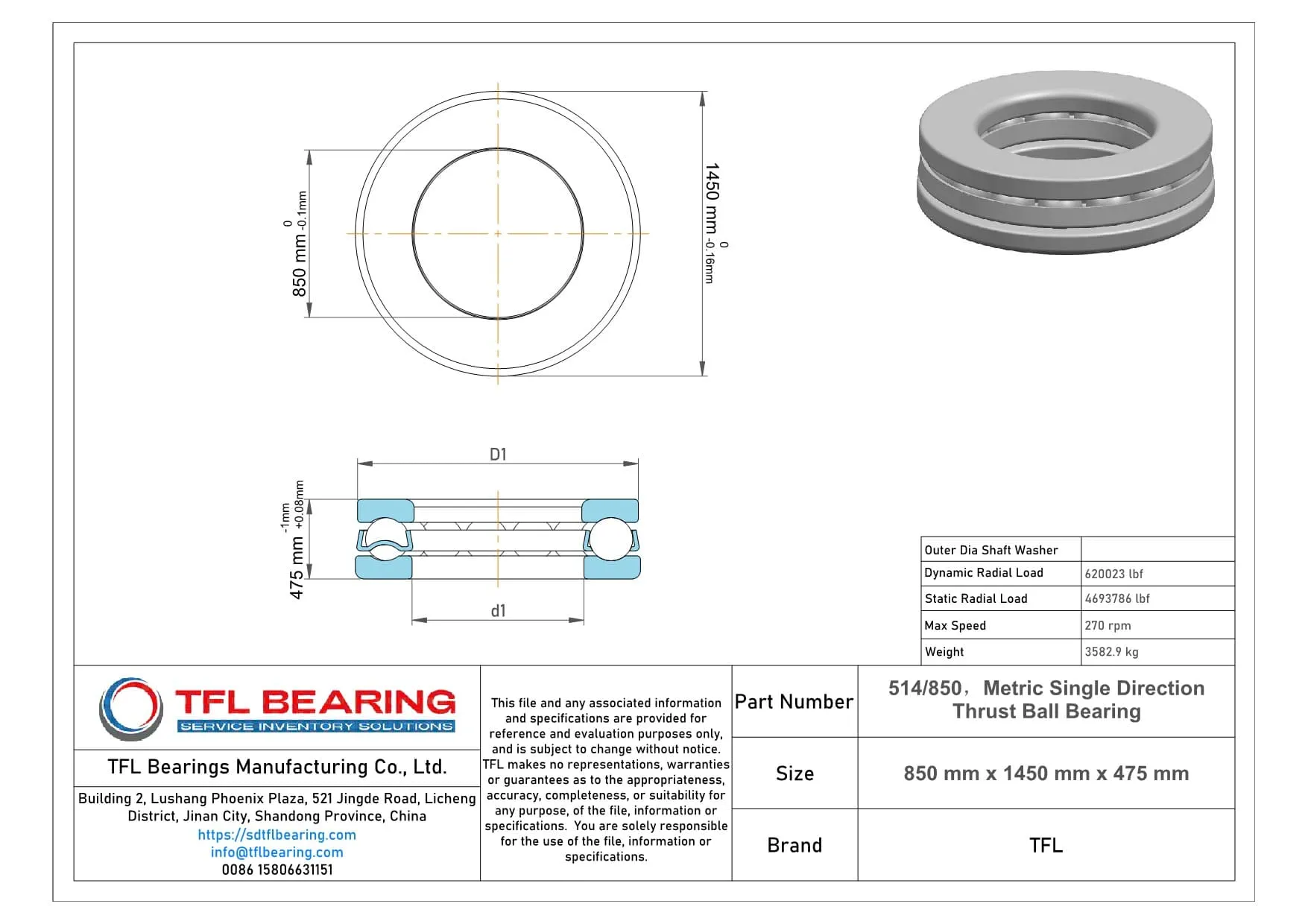

The 514/850 is a large single-direction thrust ball bearing with an 850mm bore and 1450mm outer diameter, crafted from robust 52100 chrome steel. It manages heavy thrust loads up to 620023 lbf and operates at speeds up to 270 RPM.
Its open design requires regular lubrication, while the chrome steel cage ensures durability. The bearing performs reliably in temperatures ranging from -30°C to 110°C.
This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for heavy-duty applications like industrial presses or large machinery where high thrust loads are expected.
Weighing 3582.9kg, it’s built for stability and strength. Compliant with RoHS and REACH standards for safe and sustainable use.
"*" indicates required fields
Performance Features of 514/850 Bearing
514/850 Bearing is built with 52100 chrome steel rings and balls, offering robust resistance to high thrust loads.
Its dynamic thrust load capacity reaches 620023 lbf, making it suitable for heavy-duty industrial applications.
The chrome steel cage ensures proper ball alignment, reducing friction and enhancing durability.
With a maximum speed of 270 rpm, it delivers steady performance under substantial pressure.
514/850 Bearing operates efficiently in temperatures ranging from -30° to 110°C.
Its open design simplifies lubrication, ensuring smooth operation over extended periods.
The precise tolerances in bore and outer diameters contribute to reliable fit and function.
Weighing 3582.9 kg, it is designed for large-scale machinery requiring high load capacity.
Industrial Uses of 514/850 Bearing
514/850 Bearing is commonly used in large-scale industrial machinery, such as heavy-duty presses and rolling mills, where its high load capacity handles significant axial forces. The open design simplifies lubrication, ensuring long service life in demanding environments.
In wind turbine applications, 514/850 Bearing supports the main shaft, providing stability under varying wind loads. Its chrome steel construction offers excellent wear resistance, making it suitable for continuous operation.
For mining equipment, 514/850 Bearing excels in conveyor systems and crushers, where its robust design withstands harsh conditions. The metric dimensions ensure compatibility with international machinery standards.
Where Is 514/850 Bearing Used?
You’ll often find 514/850 Bearing in hydroelectric power plants, where it manages axial loads in turbine assemblies. Its high static thrust load capacity makes it reliable for long-term energy generation.
In steel production, 514/850 Bearing is vital for ladle turrets and continuous casting machines. The wide temperature range ensures performance even in high-heat environments.
Built for Heavy-Duty Use: 514/850 Bearing
514/850 Bearing is ideal for shipbuilding, particularly in propeller shaft systems, where its large size and strength handle marine conditions. Regular lubrication keeps it running smoothly over extended periods.
In construction cranes, 514/850 Bearing supports the slewing ring, ensuring smooth rotation under heavy loads. The precise tolerances contribute to reliable operation in critical lifting tasks.
Automotive vs Aerospace: Applications of 514/850 Bearing
While 514/850 Bearing is too large for most automotive uses, it’s essential in aerospace for landing gear testing rigs. Its high load capacity simulates real-world stress conditions accurately.
In industrial settings, 514/850 Bearing outperforms smaller bearings in applications like bridge turntables. The durability and size make it a go-to choice for massive structural movements.
