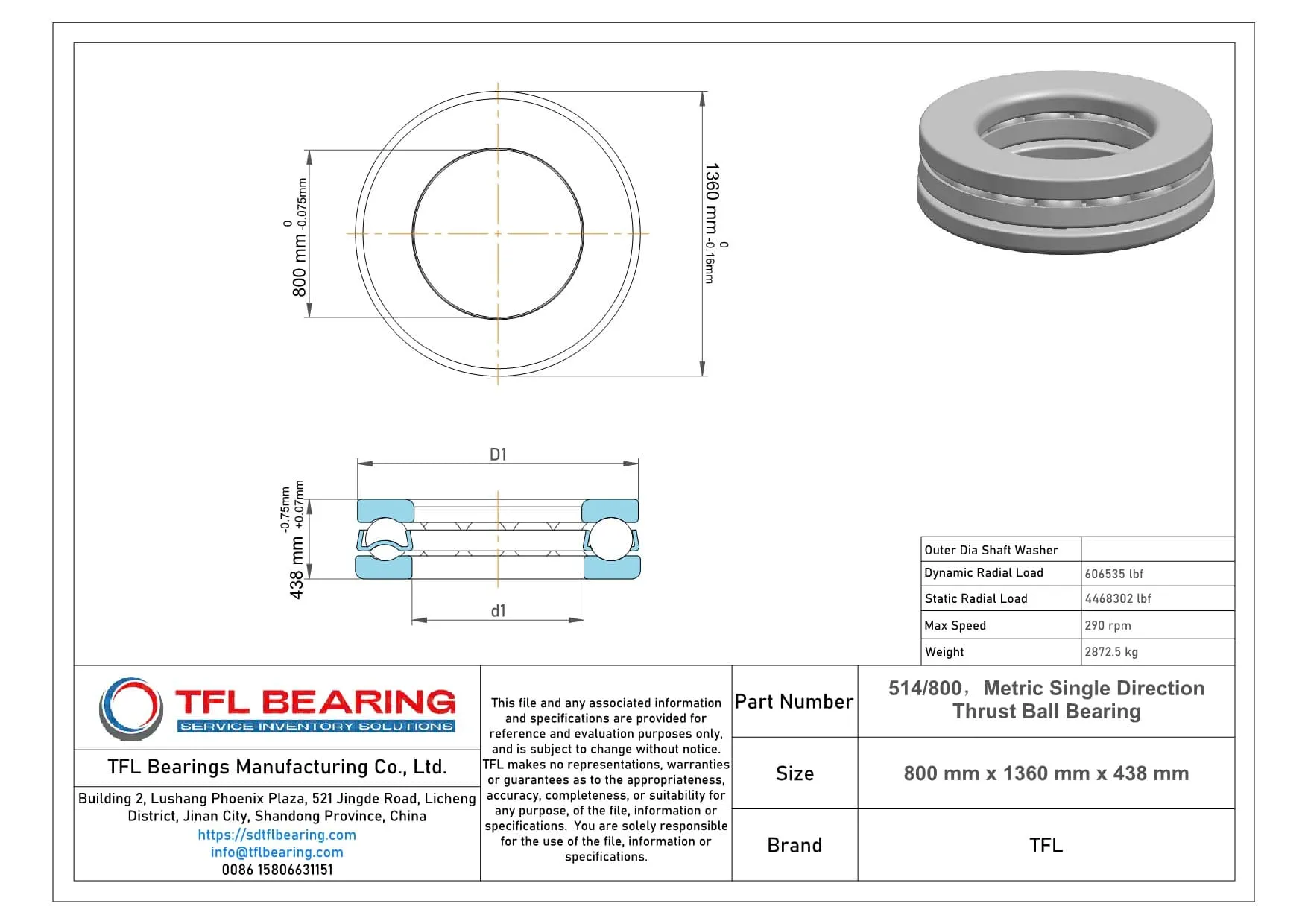

The 514/800 is a large single-direction thrust ball bearing with an 800mm bore and 1360mm outer diameter, crafted from sturdy 52100 chrome steel. It manages heavy thrust loads up to 606535 lbf and operates at speeds up to 290 RPM.
Its open design simplifies lubrication, while the chrome steel cage enhances durability. Suitable for temperatures between -30°C and 110°C, it meets RoHS and REACH standards.
This bearing is interchangeable with SKF models, offering a reliable option for replacements. Perfect for heavy-duty applications like industrial presses or large machinery where high thrust loads are present.
Weighing 2872.5kg, it’s built for robust performance in demanding environments. Regular lubrication ensures smooth operation over time.
"*" indicates required fields
How Does 514/800 Bearing Handle Heavy Loads?
514/800 Bearing is built with 52100 chrome steel rings and balls, offering robust resistance to extreme thrust loads.
Its dynamic thrust load capacity reaches 606535 lbf, making it suitable for heavy-duty industrial applications.
The chrome steel cage ensures proper ball alignment, enhancing durability and reducing friction.
With a maximum speed of 290 rpm, it delivers reliable performance under substantial pressure.
Why Choose 514/800 Bearing for Precision Tasks?
514/800 Bearing features precise bore and outer diameter tolerances, ensuring accurate alignment in machinery.
The 52100 chrome steel construction provides consistent performance in high-load scenarios.
Its open design allows for easy lubrication, maintaining smooth operation over time.
The bearing’s large size and weight make it ideal for heavy industrial equipment.
Engineered for Reliability: 514/800 Bearing
514/800 Bearing’s chrome steel components resist wear, ensuring long-term reliability in demanding environments.
The bearing’s static thrust load capacity of 4468302 lbf makes it suitable for stationary high-load applications.
Its wide temperature range of -30° to 110°C allows for use in various climatic conditions.
The robust construction minimises maintenance needs, reducing downtime.
Material Composition of 514/800 Bearing
514/800 Bearing uses 52100 chrome steel for rings and balls, known for its hardness and durability.
The chrome steel cage adds strength and stability, ensuring consistent performance under load.
This material choice provides excellent resistance to wear and fatigue.
The bearing’s construction ensures reliable operation even in challenging industrial settings.
Operational Limits of 514/800 Bearing
514/800 Bearing operates effectively within a temperature range of -30° to 110°C, suitable for diverse environments.
Its maximum speed of 290 rpm is optimised for heavy-load, low-speed applications.
The bearing requires regular lubrication to maintain peak performance.
With its high load capacities, it is designed for long service life in industrial machinery.
Industrial Uses of 514/800 Bearing
514/800 Bearing is commonly used in heavy machinery like hydraulic presses and large gearboxes, where its high load capacity handles substantial thrust forces. The open design simplifies lubrication, ensuring long service life in demanding conditions.
What Makes 514/800 Bearing a Preferred Choice?
In wind turbine systems, 514/800 Bearing supports the main shaft, offering stability under variable loads. Its chrome steel construction resists wear, making it reliable for continuous operation in harsh environments.
Built for Heavy-Duty Use: 514/800 Bearing
This bearing excels in mining equipment, such as crushers and conveyors, where its robust design manages extreme axial loads. The metric sizing ensures compatibility with international machinery standards.
Automotive vs Aerospace: Applications of 514/800 Bearing
While 514/800 Bearing is too large for most automotive uses, it’s ideal for aerospace ground support equipment like aircraft tow tractors. Its high static load capacity ensures safety during heavy towing operations.
Perfect Fit for Automation: 514/800 Bearing
In steel rolling mills, 514/800 Bearing handles the intense thrust loads of rolling stands. The chrome steel balls and rings provide durability, reducing downtime for maintenance.
