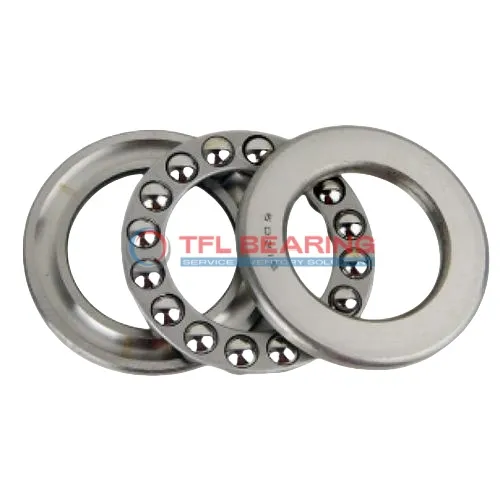

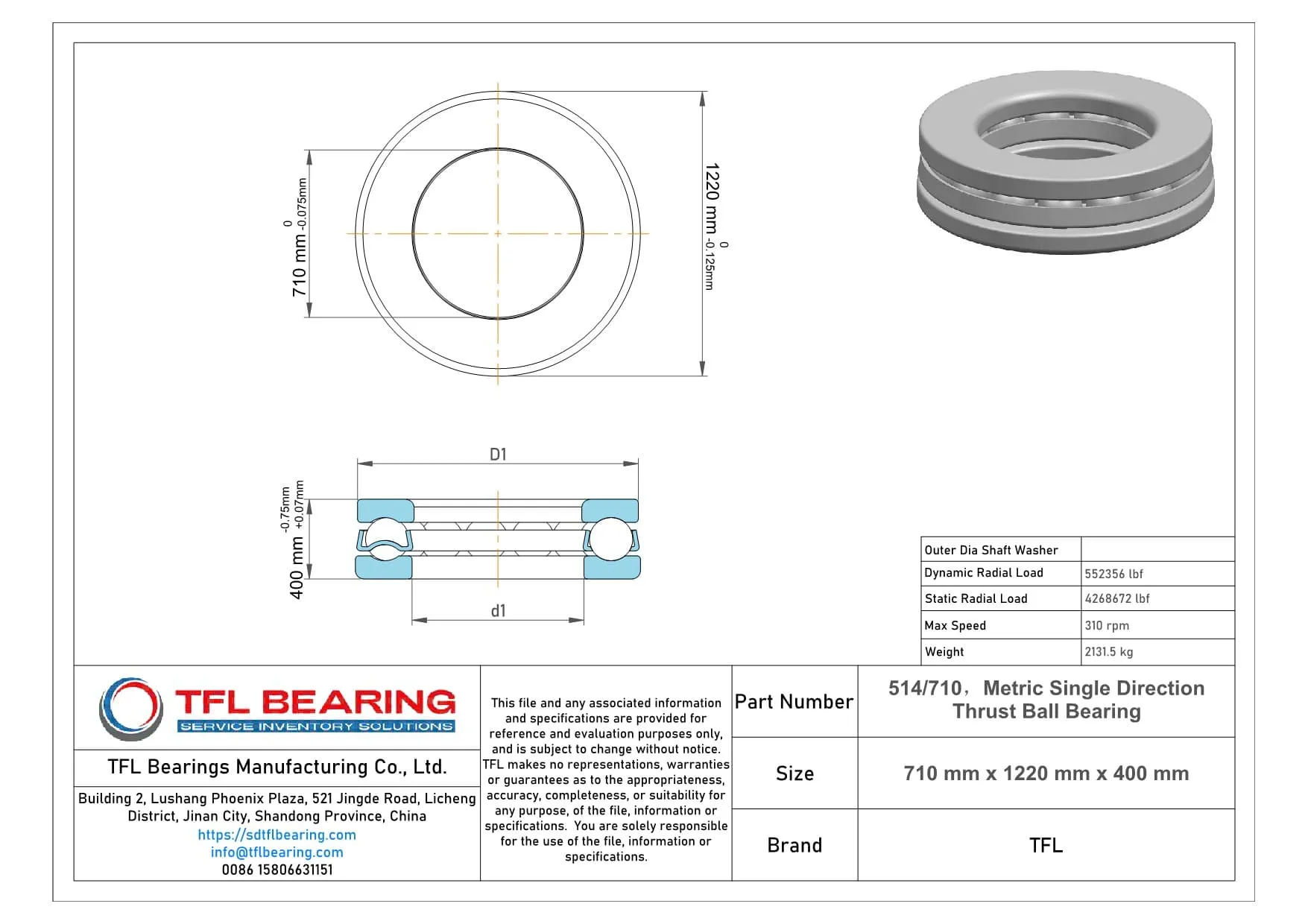

The 514/710 is a large single-direction thrust ball bearing with a 710mm bore and 1220mm outer diameter, crafted from sturdy 52100 chrome steel. It supports heavy thrust loads up to 552356 lbf and operates at speeds up to 310 RPM.
Its open design requires regular lubrication, while the chrome steel cage ensures durability under demanding conditions. The bearing performs reliably in temperatures ranging from -30°C to 110°C.
This model is interchangeable with SKF bearings, offering a practical replacement option. Perfect for heavy-duty applications like industrial presses or large machinery where high thrust loads are common.
Weighing 2131.5kg, it’s built for robust performance. Compliant with RoHS and REACH standards for safe and environmentally friendly use.
"*" indicates required fields
How Does 514/710 Bearing Handle Heavy Loads?
514/710 Bearing is crafted from 52100 chrome steel for both rings and balls, ensuring robust performance under extreme thrust loads.
Its dynamic thrust load capacity reaches 552356 lbf, making it suitable for heavy-duty industrial applications.
The chrome steel cage maintains ball alignment, reducing friction and extending operational life.
With a maximum speed of 310 rpm, it balances load capacity and rotational stability.
514/710 Bearing operates efficiently within a temperature range of -30° to 110°C.
Its open seal design allows for easy lubrication, ensuring smooth performance over time.
The precise bore and outer diameter tolerances enhance fitting accuracy.
This reduces installation time and improves overall system reliability.
Industrial Uses of 514/710 Bearing
The 514/710 Bearing is commonly used in large industrial machinery, such as heavy-duty presses and rolling mills, where its high thrust load capacity is essential. Its open design simplifies lubrication and maintenance, ensuring long service life in demanding environments.
Where Is 514/710 Bearing Used?
In wind turbines, the 514/710 Bearing handles significant axial loads, supporting the rotor assembly efficiently. Its chrome steel construction ensures durability even in harsh weather conditions, making it a reliable choice for renewable energy applications.
Built for Heavy-Duty Use: 514/710 Bearing
The 514/710 Bearing excels in mining equipment, where its robust design withstands extreme loads and vibrations. Its precise tolerances and high static thrust load rating make it ideal for crushers and conveyors.
Automotive vs Aerospace: Applications of 514/710 Bearing
While the 514/710 Bearing is too large for most automotive uses, it finds niche applications in aerospace for supporting heavy components in ground support equipment. Its metric sizing ensures compatibility with international standards.
Essential Roles of 514/710 Bearing
In marine applications, the 514/710 Bearing is used in propeller shafts and thrust blocks, where its corrosion-resistant materials and high load capacity are crucial. Its performance ensures smooth operation in saltwater environments.
