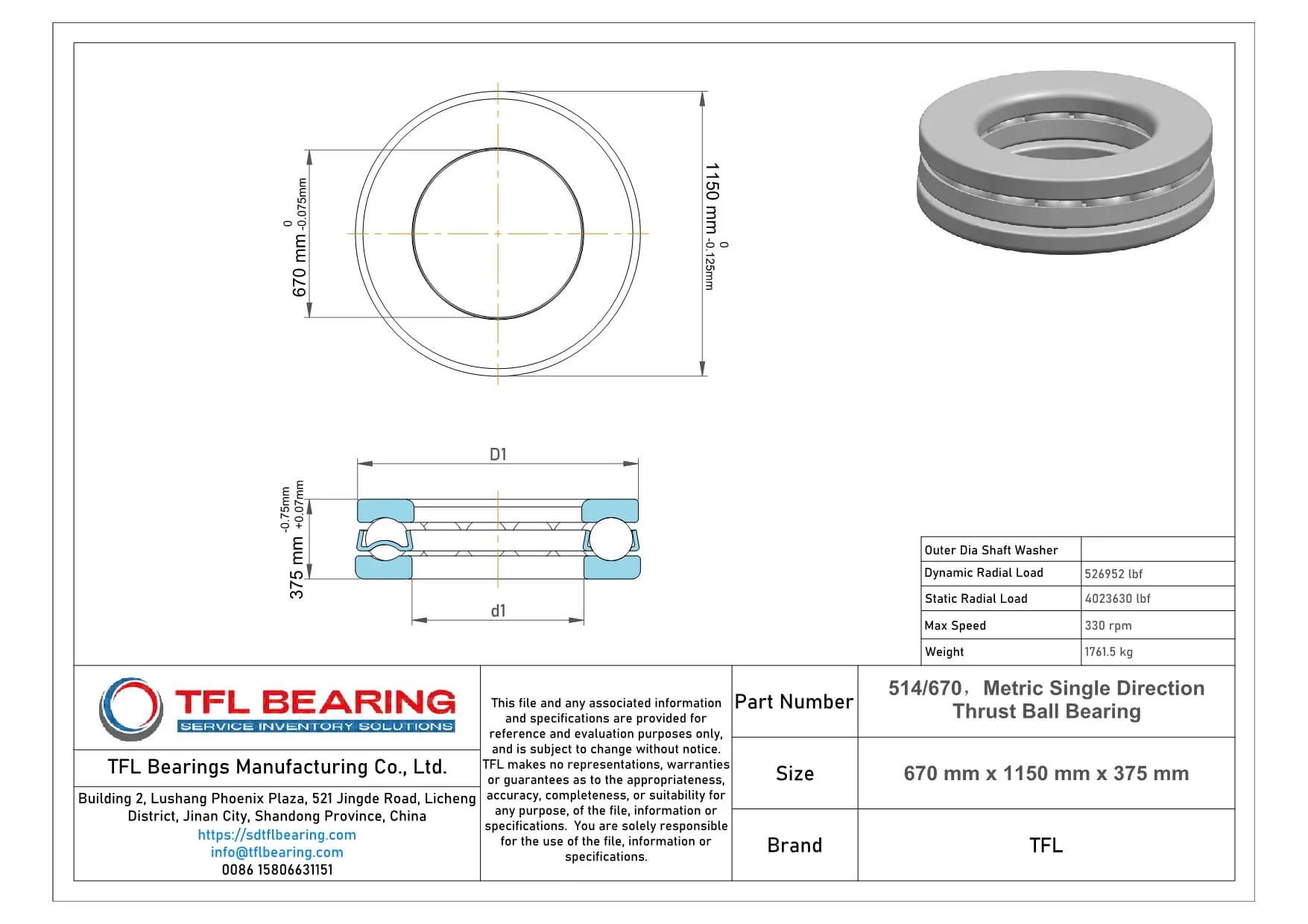

The 514/670 is a large single-direction thrust ball bearing with a 670mm bore and 1150mm outer diameter, crafted from sturdy chrome steel. It manages heavy thrust loads up to 526,952 lbf and operates at speeds up to 330 RPM.
Its open design simplifies lubrication, while the chrome steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 110°C.
This model is compatible with SKF bearings, offering a practical replacement option. Suitable for heavy-duty applications like industrial presses or large machinery where high thrust loads are present.
Weighing 1761.5kg, it’s built for robust performance in demanding environments. Compliant with RoHS and REACH standards for safe and eco-friendly use.
"*" indicates required fields
How Does 514/670 Bearing Handle Heavy Loads?
514/670 Bearing is built with 52100 chrome steel rings and balls, offering strong resistance to extreme thrust loads.
Its dynamic thrust load capacity reaches 526,952 lbf, making it suitable for heavy-duty industrial applications.
The chrome steel cage ensures proper ball alignment, reducing friction and wear during operation.
With a maximum speed of 330 rpm, it delivers reliable performance under substantial pressure.
514/670 Bearing operates efficiently within a temperature range of -30° to 110°C.
Its robust construction and precise tolerances ensure long-term durability in demanding conditions.
Industrial Uses of 514/670 Bearing
514/670 Bearing is commonly used in heavy machinery, such as large presses and rolling mills, where its high load capacity handles significant axial forces. The open design simplifies lubrication, ensuring long service life in demanding conditions.
In wind turbine systems, 514/670 Bearing supports the main shaft, providing stability under varying wind loads. Its chrome steel construction offers durability in outdoor environments, reducing maintenance needs.
For hydropower plants, 514/670 Bearing is ideal for turbine applications, where its precise tolerances ensure smooth rotation. The large bore diameter makes it suitable for heavy-duty shafts commonly found in this industry.
Where Is 514/670 Bearing Used?
You’ll find 514/670 Bearing in mining equipment, such as crushers and conveyors, where its robust design withstands harsh operating conditions. The high static thrust load capacity makes it reliable for heavy material handling.
In steel production, 514/670 Bearing is used in rolling stands, where its ability to handle extreme loads keeps operations running smoothly. The metric sizing ensures compatibility with European and Asian machinery standards.
Built for Heavy-Duty Use: 514/670 Bearing
514/670 Bearing excels in marine applications, such as ship propulsion systems, where its corrosion-resistant materials perform well in salty environments. The large dimensions make it a fit for heavy marine components.
In construction cranes, 514/670 Bearing supports the slewing mechanism, ensuring smooth rotation under heavy loads. Its wide temperature range allows operation in varying weather conditions.
