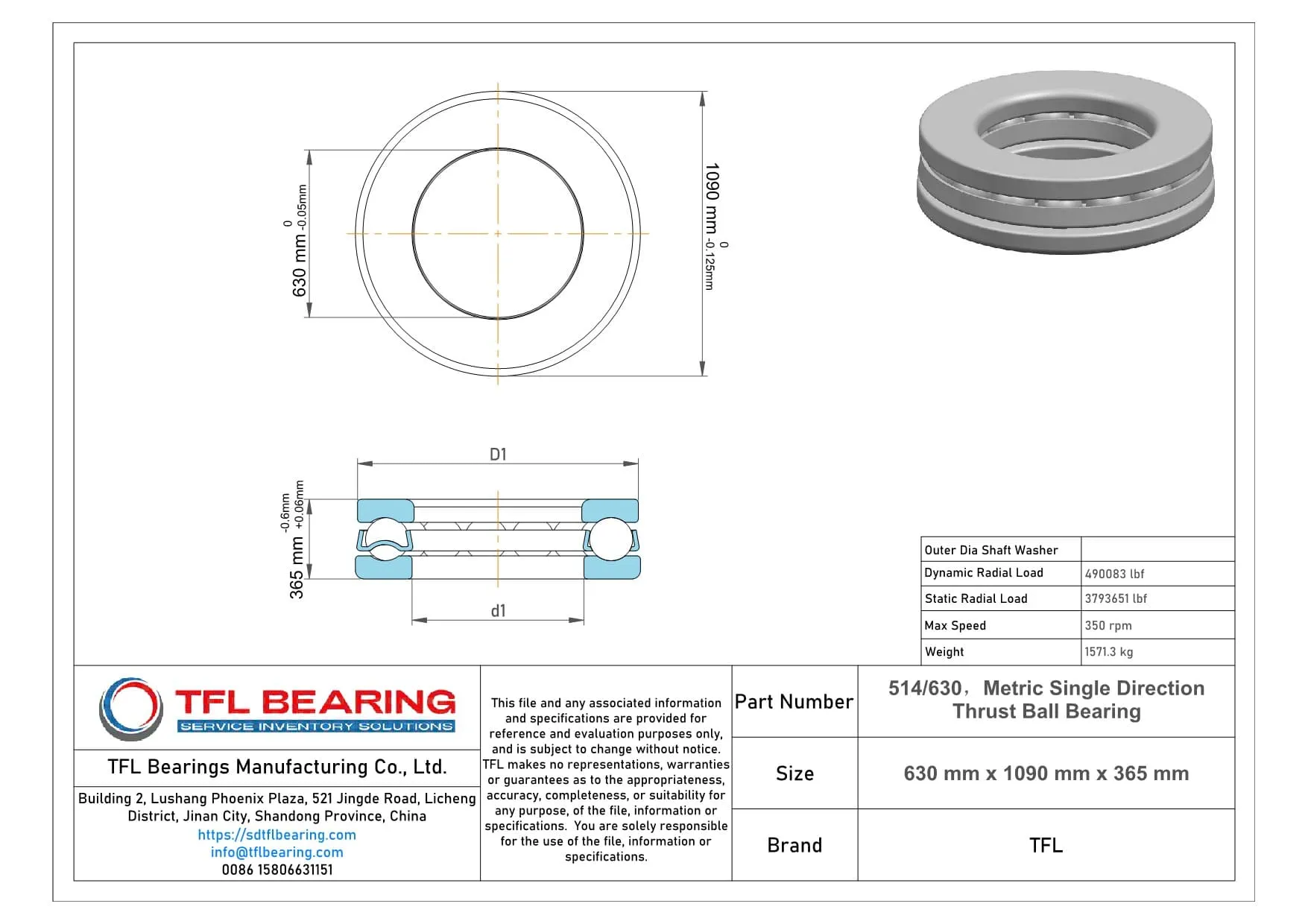

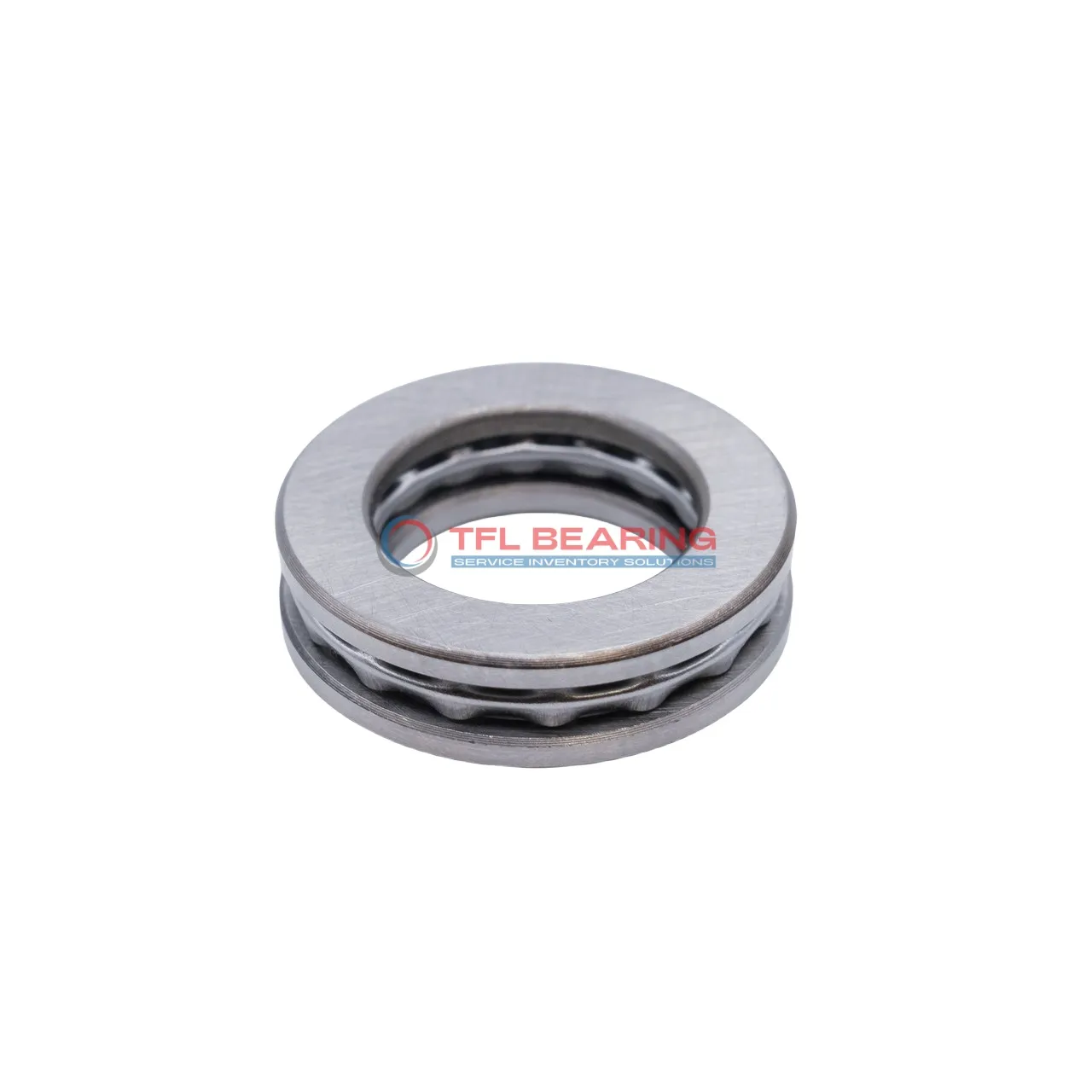

The 514/630 is a large single-direction thrust ball bearing with a 630mm bore and 1090mm outer diameter, built from tough 52100 chrome steel. It manages heavy thrust loads up to 490083 lbf, though its max speed is limited to 350 RPM due to its size.
Its open design requires regular lubrication, but the chrome steel cage ensures durability under stress. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.
This model is interchangeable with SKF bearings, offering a reliable option for replacements in heavy-duty setups. Perfect for large industrial machinery like hydraulic presses or marine equipment where high thrust loads are expected.
Weighing 1571.3kg, it’s built for stability and strength. Compliant with RoHS and REACH standards for safe industrial use.
"*" indicates required fields
Performance Features of 514/630 Bearing
514/630 Bearing is built with 52100 chrome steel rings and balls, offering robust resistance to high thrust loads.
Its dynamic thrust load capacity reaches 490083 lbf, making it suitable for heavy-duty industrial applications.
The chrome steel cage ensures proper ball alignment, enhancing durability and reducing friction.
With a maximum speed of 350 rpm, it delivers reliable performance in low-speed, high-load scenarios.
514/630 Bearing operates efficiently within a temperature range of -30° to 110°C.
Its open design simplifies lubrication, ensuring smooth operation over extended periods.
Key Fields for 514/630 Bearing
514/630 Bearing is commonly used in heavy industrial applications, such as large-scale hydraulic presses and rolling mills, where its high load capacity handles significant axial forces. The open design simplifies lubrication, ensuring smooth operation in demanding environments.
In wind turbine systems, 514/630 Bearing plays a crucial role in supporting the main shaft, where its durability and precision are essential for long-term reliability. The chrome steel construction also resists wear, even under continuous use.
For mining equipment, 514/630 Bearing’s robust design makes it suitable for conveyors and crushers, where it manages heavy thrust loads. The metric sizing ensures compatibility with a variety of machinery used in the sector.
Where to Use 514/630 Bearing
514/630 Bearing is ideal for marine applications, such as ship propulsion systems, where its high static thrust load capacity ensures stability. The temperature range also allows it to perform well in varying climatic conditions.
In construction machinery, 514/630 Bearing supports components like cranes and excavators, where its strength and reliability are vital. The chrome steel cage further enhances its performance under heavy loads.
